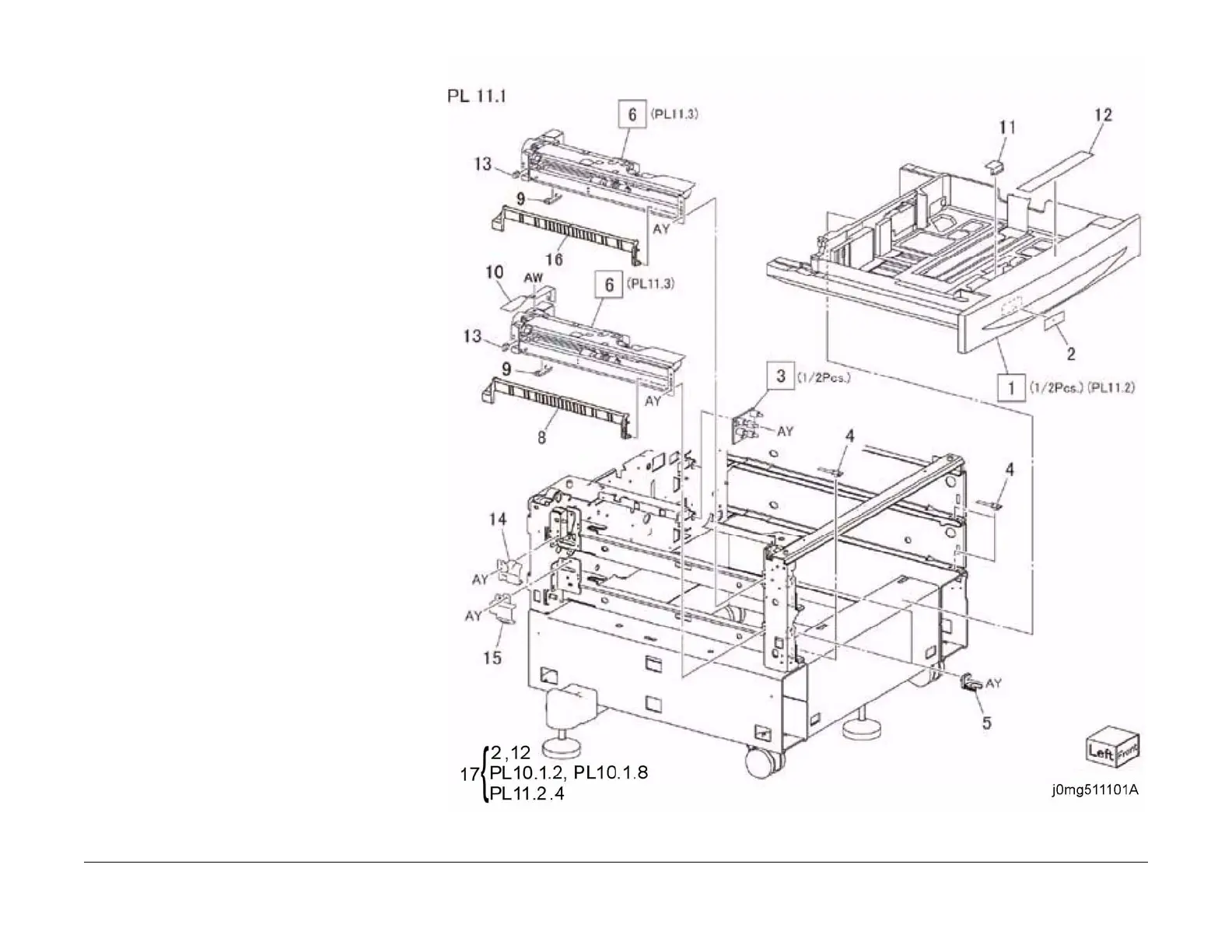

PL 11.1 Tray 3/4, Feeder
Item Part Description
1 050K64424 Tray 3/4 (PL 11.2)
2 – Label (No.3), Label (No.4) (P/O
Item 17)
3 110K11680 Tray 3/4 Paper Size Switch
4 014E51110 Tray Spacer
5 003E61510 Tray Stopper
6 059K79621 Tray 3 Feeder (PL 11.3) (REP
11.1.1), Tray 4 Feeder (PL 11.3)
(REP 11.1.2)
8 054E22622 Feed Out Chute
9 802E54672 Sensor Cover
10 – Cover
11 014E59990 Slide Lock
12 – Label (instruction) (P/O Item 17)
13 – Holder
14 – Feeder Connector Cover
15 – Feeder Connector Cover
16 054K27520 Feed Out Chute
17 604K90810 Tray Label Kit
