Xerox WorkCentre 5024 Service Manual

06/2014
5-25
WC 5022/5024
PL 10.3
Parts List
Version 1.0

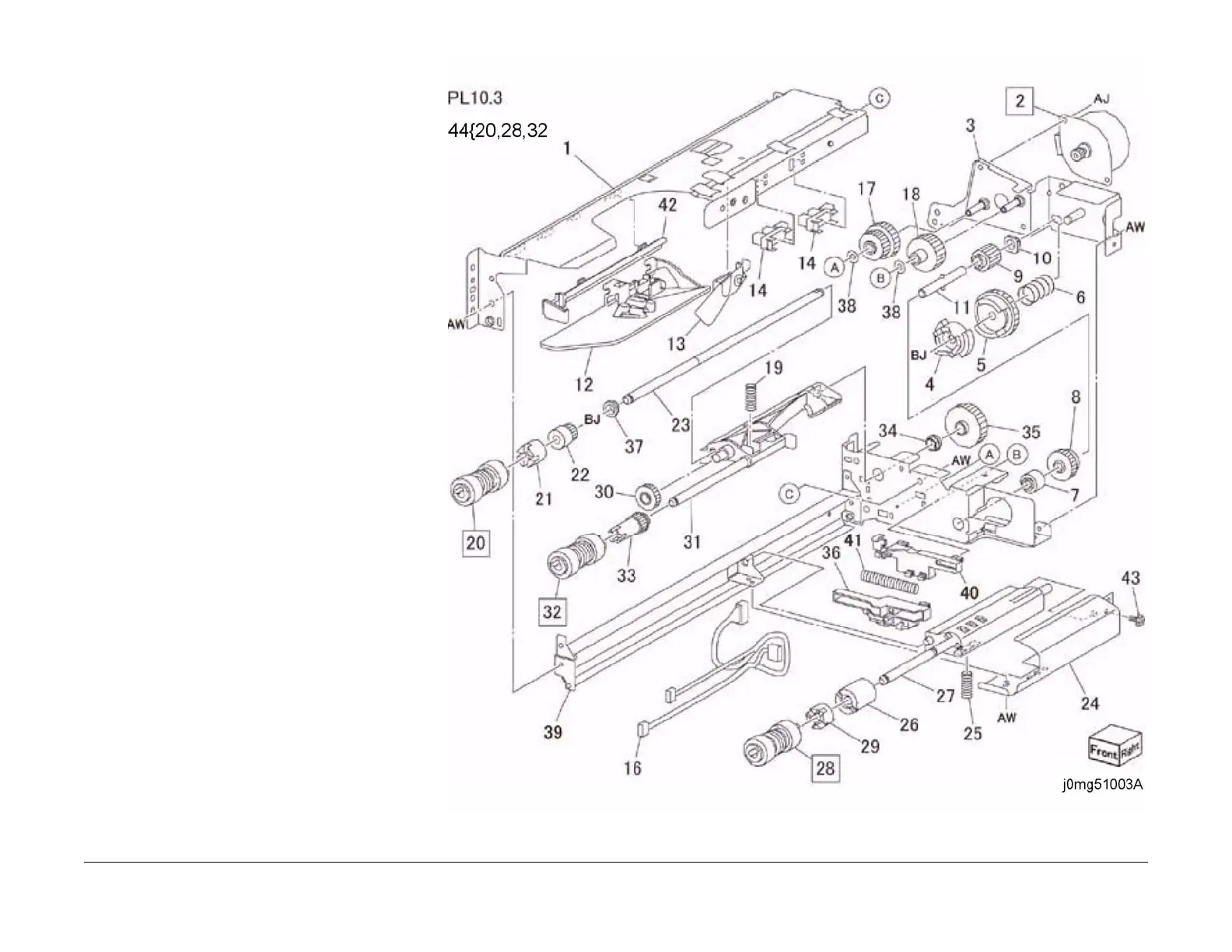

PL 10.3 Tray 2 Feeder
Item Part Description
1 – Upper Frame
2 127K38171 Tray 2 Feed/Lift Up Motor
3 – Bracket
4 014E44770 Spacer
5 807E00390 Gear (31T)
6 809E50531 Spring
7 005K83081 Oneway Clutch
8 007K85730 Oneway Gear
9 807E00800 Gear (13T)
10 013E26530 Bearing
11 – Shaft
12 054E23461 Front Chute
13 120E22481 Actuator
14 930W00123 Tray 2 Nudger Level Sensor, Tray 2
No Paper Sensor
16 962K19692 Wire Harness
17 – Gear (28T/21T)
18 007E78900 Gear (29T)
19 809E51070 Spring
20 – Tray 2 Feed Roll (P/O Item 44)
(REP 10.3.1)
21 005K05890 Oneway Clutch
22 005K06760 Oneway Gear (22T)
23 – Shaft
24 054E23170 Chute
25 809E42531 Spring
26 005K81880 Friction Clutch
– 005K07010 Friction Clutch (Alternate)
27 – Support Assembly
28 – Tray 2 Retard Roll (P/O Item 44)
(REP 10.3.1)
29 014E45030 Spacer
30 007E79380 Gear (33T)
31 – Support Assembly
32 – Tray 2 Nudger Roll (P/O Item 44)
(REP 10.3.1)
33 807E00070 Gear (25T)
34 413W11660 Bearing
35 807E00410 Gear (34T)
36 011E14771 Lever
37 013E92890 Bearing
38 028E94160 Washer
39 – Lower Frame
40 019E56680 Holder
41 809E51080 Spring
42 – Rail
43 – Screw
44 604K75331 Feed Roll Kit
