06/2014
5-16
WC 5022/5024
PL 6.1
Version 1.0
Parts List

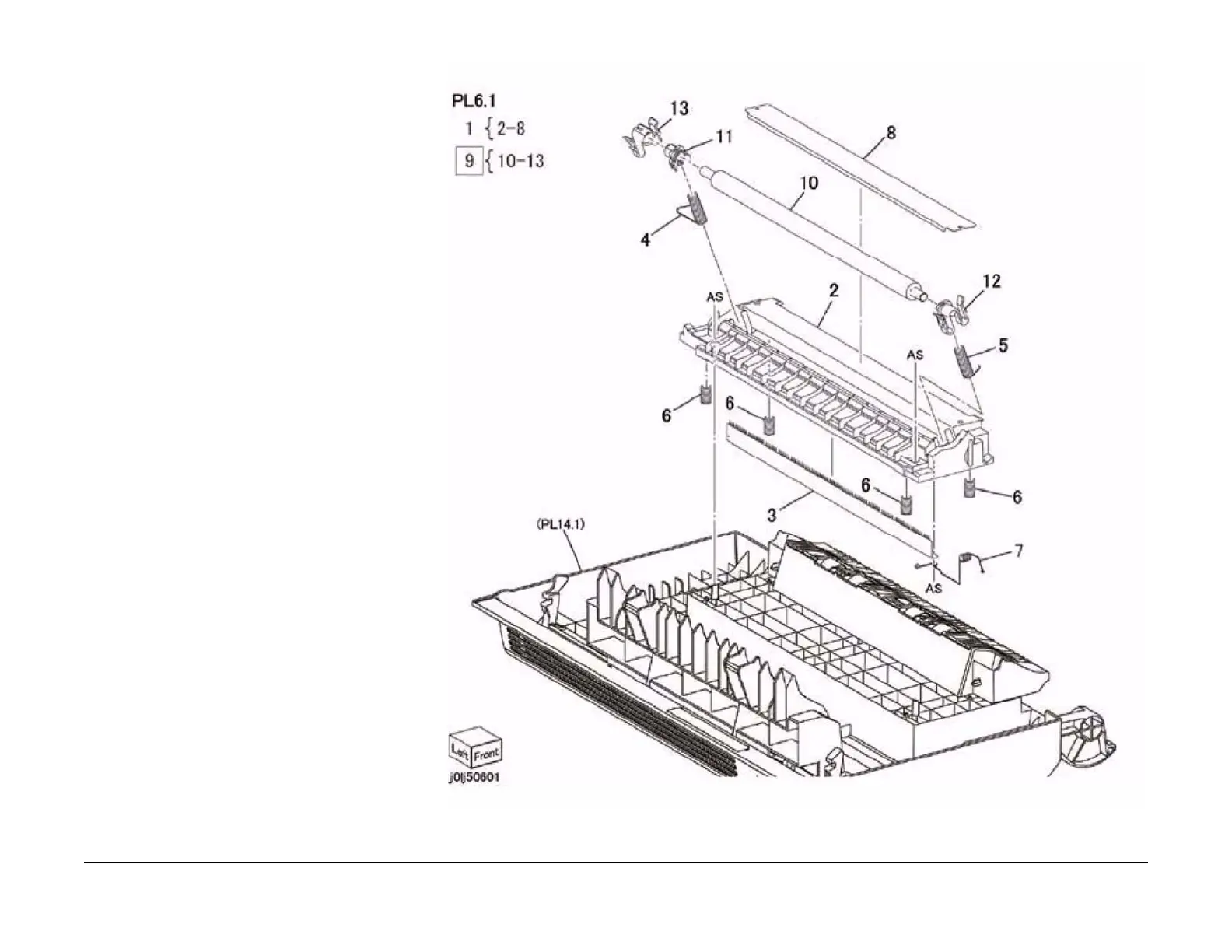

PL 6.1 Transfer
Item Part Description
1 054K48391 BTR Chute (Item 2-8)
2 BTR Chute (P/O Item 1)
3 DTS Eliminator (P/O Item 1)
4 809E99862 BTR Spring (Rear)
5 809E99871 BTR Spring (Front)
6 Float Spring (P/O Item 1)
7 DTS Conductor (P/O Item 1)
8 Film Chute (P/O Item 1)
9 059K79560 BTR Roll Assembly (REP 6.1.1)
10 BTR Roll
11 BTR Bearing (Rear)
12 BTR Bearing (Front)
13 BTR Lever
