Xerox WorkCentre 5024

06/2014
4-47
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 13.1.1 MSI
Parts List on PL 13.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.

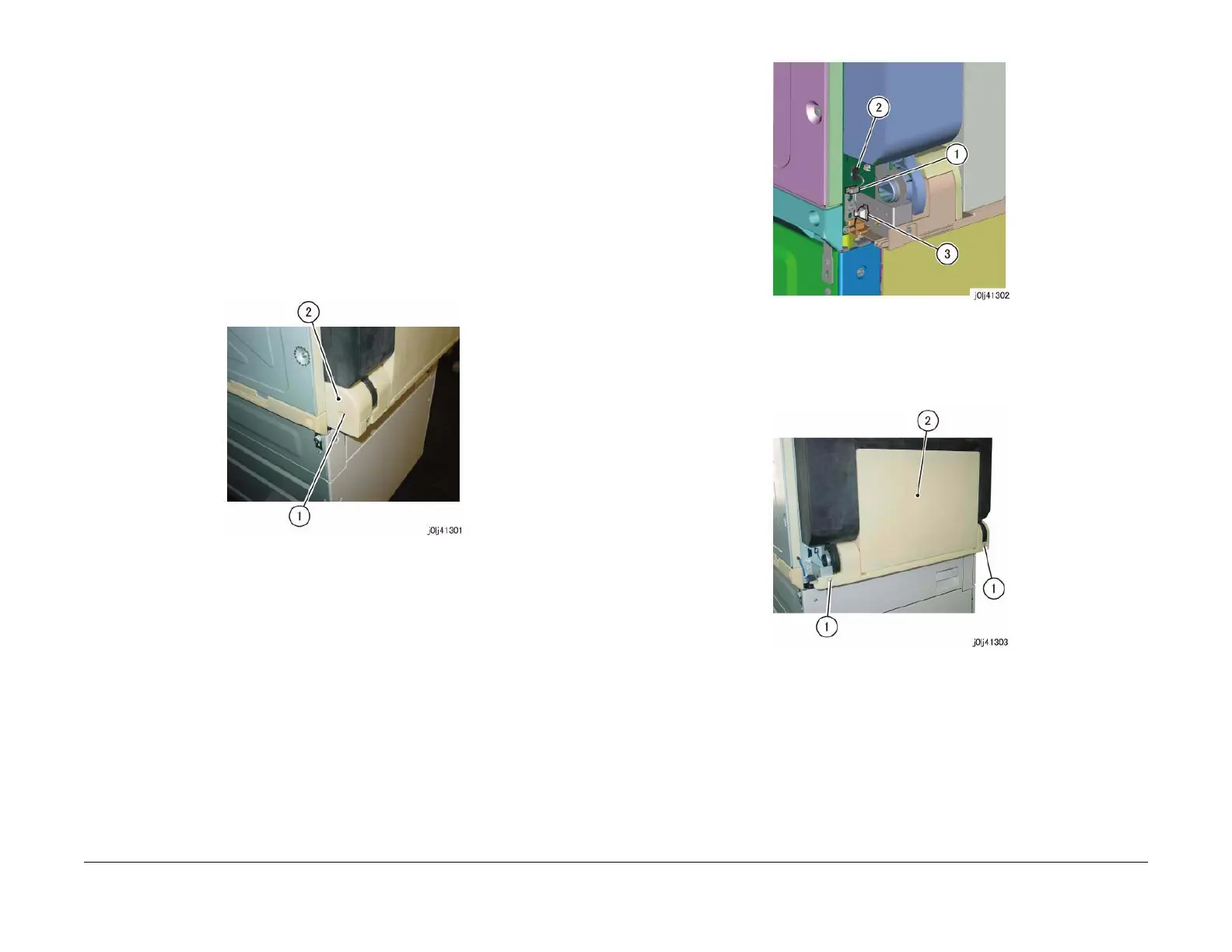

1. Remove the Hinge Rear Cover. (Figure 1)
a. Remove the screw.
b. Remove the Hinge Rear Cover.
Figure 1 j0lj41301
2. Disconnect the connector. (Figure 2)
a. Release the wire harness from the clamp.
b. Disconnect the connector.
c. Remove the cable band.
Figure 2 j0lj41302
3. Remove the MSI. (Figure 3)
a. Remove the screw (x2).
b. Remove the MSI.
Figure 3 j0lj41303
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the MSI, insert the boss (x2) of the MSI into the holes for the boss. (Figure
4)
