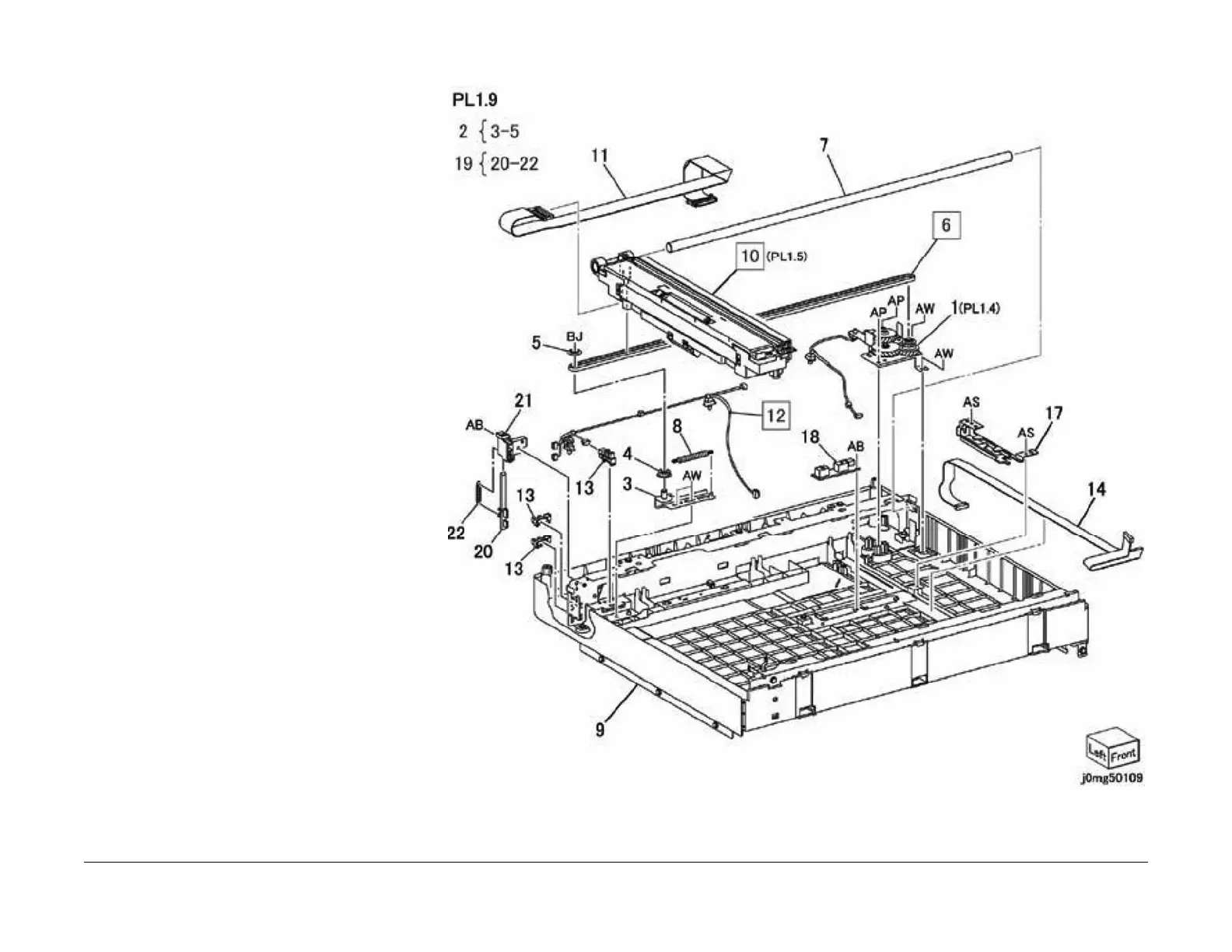

PL 1.9 IIT Base Frame Component
Item Part Description
1 – Carriage Drive and Motor (PL 1.4)
2 – Pulley Assembly (Item 3-5)
3 049K17900 Pulley Bracket
4 020E49550 Pulley
5 005E33441 Flange
6 023E27860 IIT Carriage Belt (REP 1.3.2)
7 – Shaft
8 809E58300 Spring
9 – IIT Base Frame
10 848K81862 IIT Carriage (PL 1.5) (REP 1.3.1)
11 117K47330 CCD Cable
12 952K11130 Sensor Wire Harness
13 930W00123 IIT Registration Sensor,Platen
Angle Sensor, Platen Open Sensor
14 117K47880 UI Cable
17 – Harness Guide
18 130K79500 APS Sensor
19 120K92900 Actuator Assembly (Item 20-22)
20 – Actuator (P/O Item 19)
21 – Actuator Support (P/O Item 19)
22 – Spring (P/O Item 19)
