06/2014
5-62
WC 5022/5024
PL 56.12
Version 1.0
Parts List

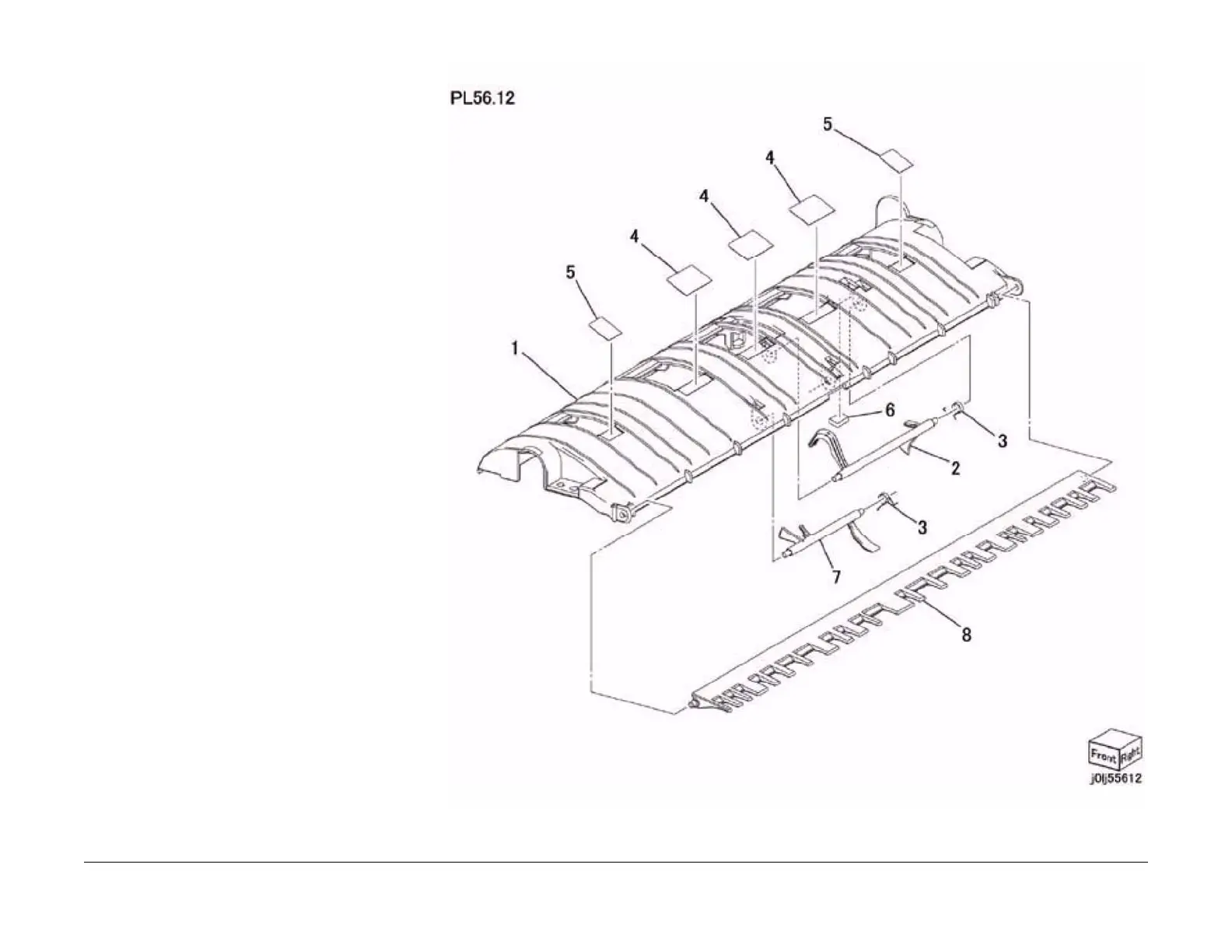

PL 56.12 Invert Chute
Item Part Description
1 – Invert Chute
2 120E34220 Actuator (Pre Regi.)
3 809E50792 Spring
4 035K82730 Seal (Long)
5 035K82740 Seal (Short)
6– Pad
7 120E34230 Actuator (Invert)
8 050E25313 Invert Gate
