Xerox WorkCentre 5024

06/2014
5-61
WC 5022/5024
PL 56.11
Parts List
Version 1.0

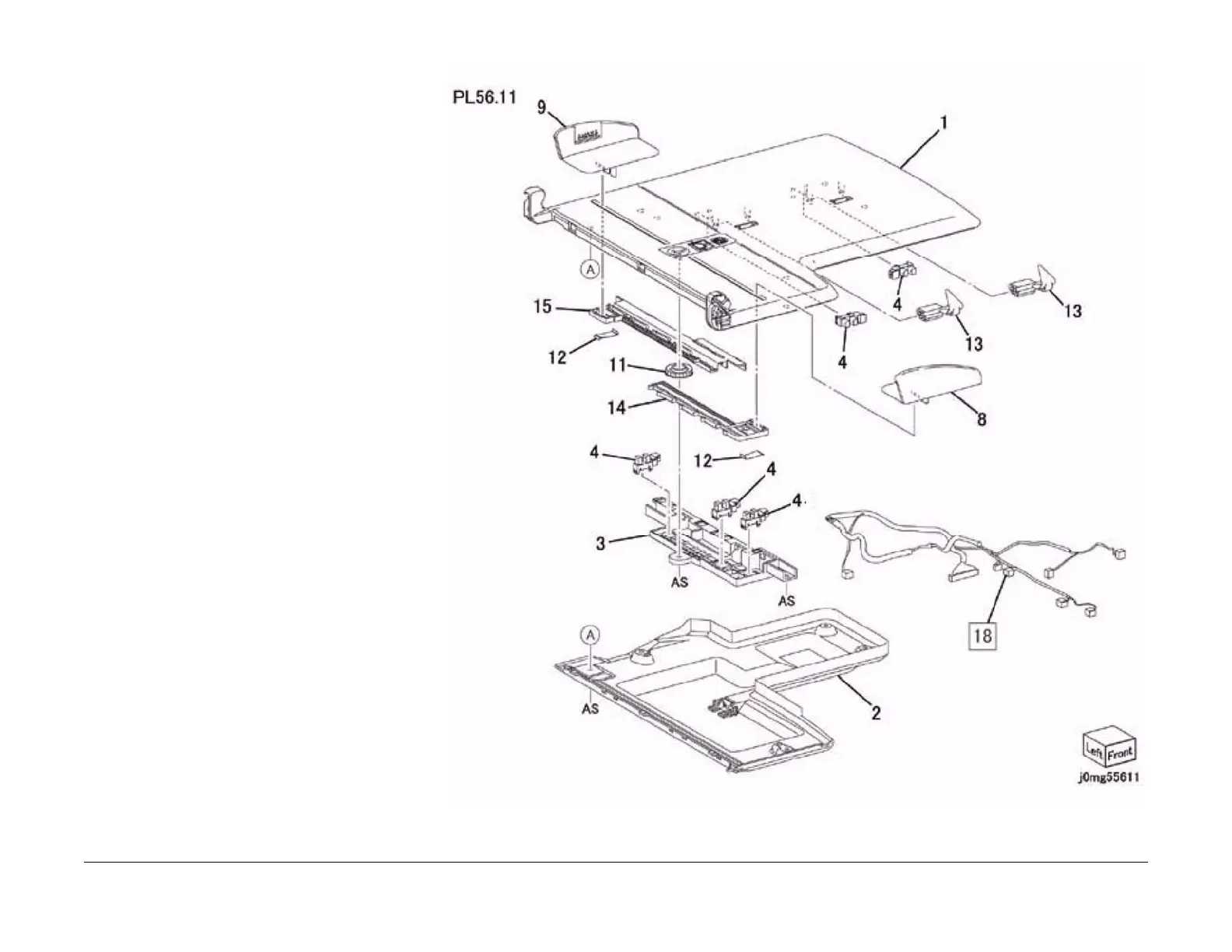

PL 56.11 Document Tray
Item Part Description
1 – Upper Tray
2– Tray Cover
3 868E80501 Sensor Bracket
4 930W00121 DADF Tray Set Guide Sensor,
Document Tray Size Sensor
8 038E42770 Front Side Guide
9 038E42750 Rear Side Guide
11 807E30471 Pinion Gear
12 809E51860 Rack Spring
13 120E34210 Actuator
14 807E37830 Rack Gear (Front)
15 807E40750 Rack Gear (Rear)
18 952K08451 Tray Wire Harness
