Xerox WorkCentre 5024 Service Manual

06/2014
5-52
WC 5022/5024
PL 56.2
Version 1.0
Parts List

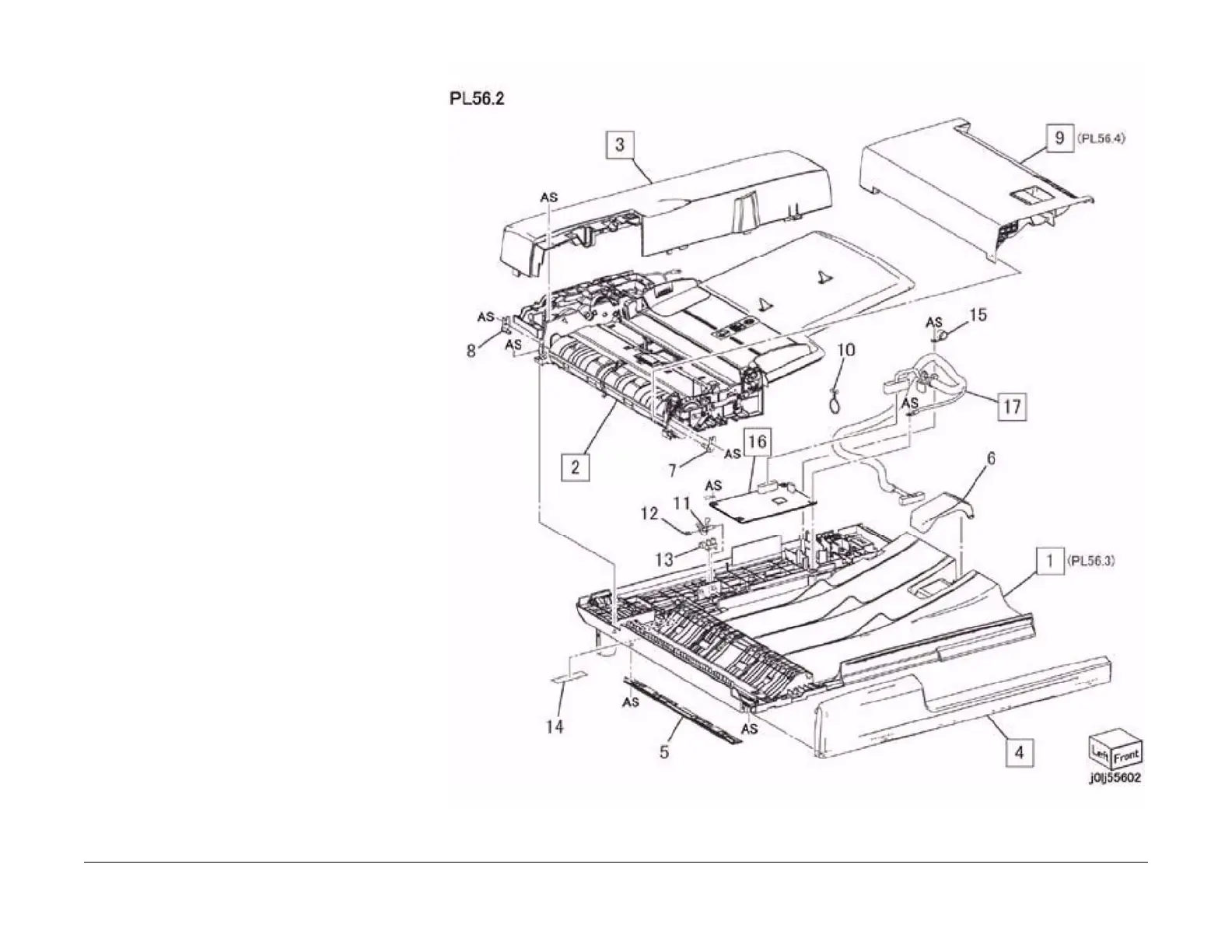

PL 56.2 DADF Component
Item Part Description
1 – DADF Base Frame (PL 56.3)
2 059K75733 DADF Feeder Assembly (REP
56.2.5)
3 848E86411 DADF Rear Cover (REP 56.2.2)
4 848E86430 DADF Front Cover (REP 56.2.1)
5 848E86450 Registration Pinch Cover
6 803E13310 Tray Stopper
7 068K67551 Hinge Bracket (Front)
8 049K17810 Hinge Bracket (Rear)
9 059K75752 Upper Feeder (PL 56.4) (REP
56.2.4)
10 – Clamp
11 120E34270 Actuator
12 809E50792 Spring
13 930W00121 DADF Open Sensor
14 – Data Plate
15 – Clamp
16 960K62447 DADF PWB (REP 56.2.3)
17 952K08471 DADF I/F Wire Harness
