Xerox WorkCentre 5024 Service Manual

06/2014
5-42
WC 5022/5024
PL 14.4
Version 1.0
Parts List

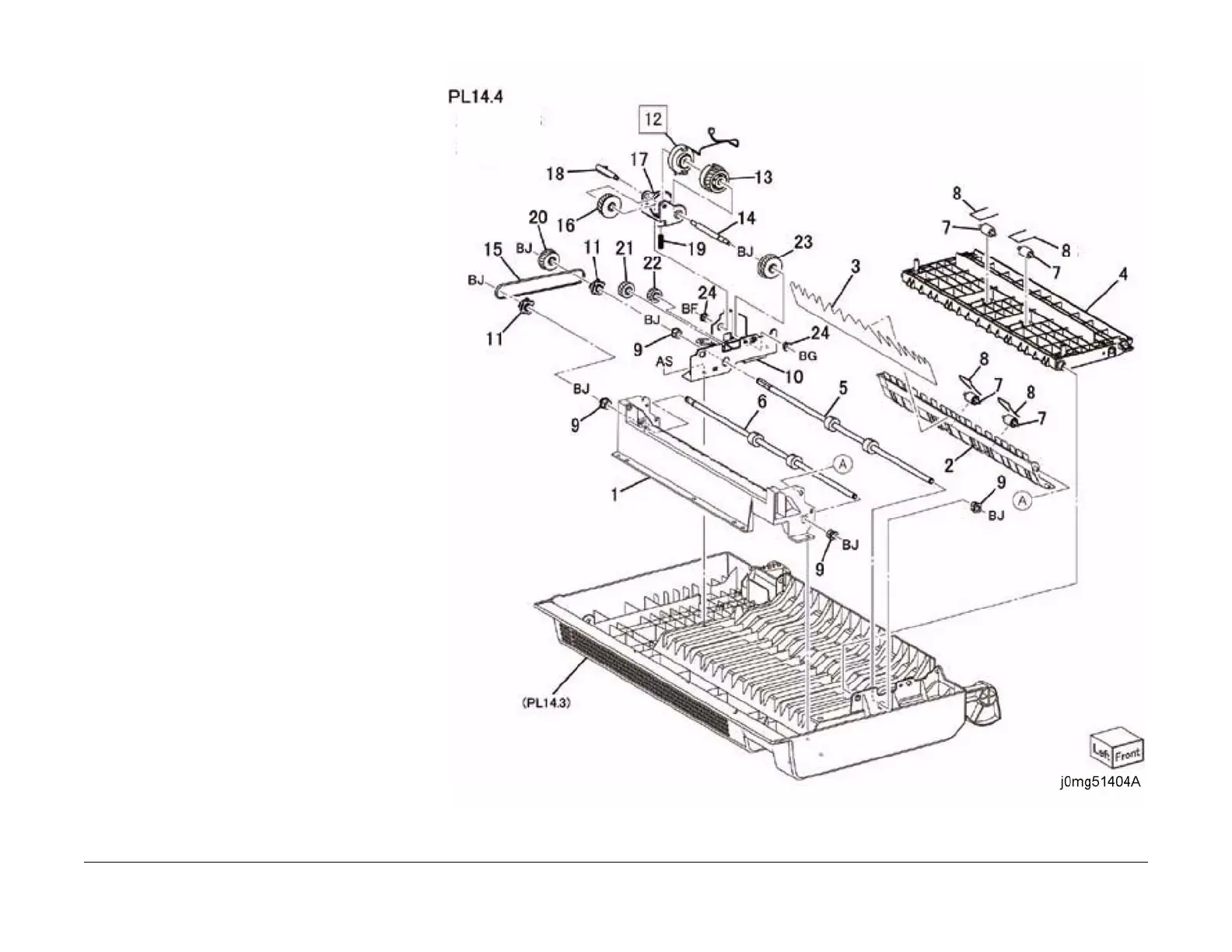

PL 14.4 Duplex L/H Cover-Roll,Gear
Item Part Description
1 054E49711 L/H Cover Upper Chute
2 – L/H Cover Upper Lower Chute
3 038E27201 Paper Guide
4 – Duplex Inner Chute
5 059K74950 Duplex Roll 1
6 059K74960 Duplex Roll 2
7 059E04010 Pinch Roll
8 809E75530 Spring
9 013E40060 Bearing
10 – Gear Bracket
11 020E45140 Pulley
12 121K52130 Duplex Clutch
13 807E40930 Helical Gear
14 – Duplex Clutch Shaft
15 023E27800 Belt
16 807E39430 Swing Helical Gear (27T)
17 868E77401 Swing Bracket
18 806E37111 Swing Shaft
19 809E99740 Spring
20 – Helical Gear (24T)
21 – Helical Gear (19T)
22 – Helical Gear (17T)
23 – Helical Gear (28T)
24 413W11460 Bearing

Xerox WorkCentre 5024 Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	14 s
Print speed (black, normal quality, A3)	12 ppm
Print speed (black, normal quality, A4/US Letter)	24 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Copy speed (black, normal quality, A3)	12 cpm
Copy speed (black, normal quality, A4)	24 cpm
Scan to	E-mail, PC
Scan drivers	TWAIN
Scanner type	ADF scanner
Scan speed (black)	22 ppm
Scan speed (color)	13 ppm
Faxing	-
Modem speed	33.6 Kbit/s
Printing colors	Black
Maximum duty cycle	25000 pages per month
Recommended duty cycle	0 - 25000 pages per month
Number of print cartridges	2
Wi-Fi	No
Email protocols	SMTP
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Internal memory	256 MB
Standard interfaces	USB 2.0
Display	LCD
Product color	Gray
Market positioning	Business
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Paper input type	Paper tray
Total input capacity	350 sheets
Total output capacity	- sheets
Maximum input capacity	1850 sheets
Total number of input trays	5
Paper tray media types	Labels, Plain paper, Recycled paper
Paper tray media weight	60 - 90 g/m²
ISO A-series sizes (A0...A9)	A3, A4
ISO B-series sizes (B0...B9)	B4, B5
Maximum ISO A-series paper size	A3
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	574 mm
Width	594.3 mm
Height	581.6 mm
