Xerox WorkCentre 5024 Service Manual

06/2014
5-46
WC 5022/5024
PL 18.3
Version 1.0
Parts List

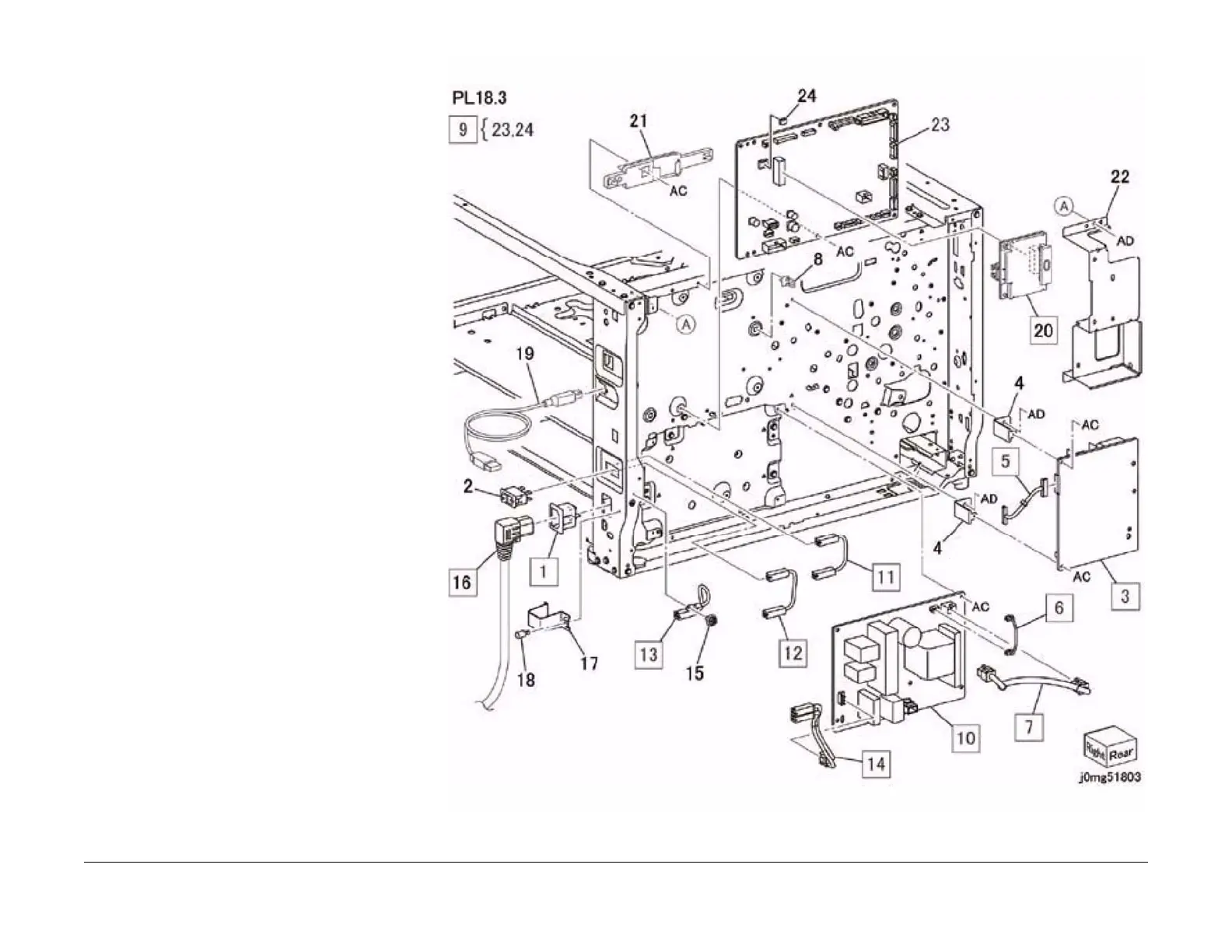

PL 18.3 Electrical
Item Part Description
1 913W02321 AC Inlet
2 910W00703 Main Power Switch
3 105E21351 HVPS (REP 18.1.2)
4 – HVPS Bracket
5 952K01141 HVPS Wire Harness
6 952K01190 LVPS Wire Harness (Signal)
7 952K10740 LVPS Wire Harness (Power)
8 120E34060 PWB Support
9 960K76830 ESS/MCU PWB Assembly (Item
23,24) (REP 18.3.2)
10 105E20482 220V-LVPS (REP 18.1.3)
– 105E21071 120V-LVPS (REP 18.1.3)
11 117K47570 220V Inlet Wire Harness (HOT)
– 117K47810 120V- Inlet Wire Harness
12 117K47580 220V Inlet Wire Harness (NUT)
– 117K47820 120V- Inlet Wire Harness
13 117K47611 220V Ground Wire
– 117K47830 120V- Ground Wire
14 952K01230 220V Power Switch Wire Harness
– 962K69080 120V Power Switch Wire Harness
15 – Screw
16 – 220V Power Cord, 120V Power
Cord
17 – Stopper Bracket
18 – Thumbscrew
19 – USB Cable
20 960K77160 Net I/F PWB (REP 18.3.1)
21 – IIT Cable Spacer
22 – Bracket
23 – ESS/MCU PWB (P/O Item 9)
24 – EEP ROM (P/O Item 9)

Xerox WorkCentre 5024 Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	14 s
Print speed (black, normal quality, A3)	12 ppm
Print speed (black, normal quality, A4/US Letter)	24 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Copy speed (black, normal quality, A3)	12 cpm
Copy speed (black, normal quality, A4)	24 cpm
Scan to	E-mail, PC
Scan drivers	TWAIN
Scanner type	ADF scanner
Scan speed (black)	22 ppm
Scan speed (color)	13 ppm
Faxing	-
Modem speed	33.6 Kbit/s
Printing colors	Black
Maximum duty cycle	25000 pages per month
Recommended duty cycle	0 - 25000 pages per month
Number of print cartridges	2
Wi-Fi	No
Email protocols	SMTP
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Internal memory	256 MB
Standard interfaces	USB 2.0
Display	LCD
Product color	Gray
Market positioning	Business
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Paper input type	Paper tray
Total input capacity	350 sheets
Total output capacity	- sheets
Maximum input capacity	1850 sheets
Total number of input trays	5
Paper tray media types	Labels, Plain paper, Recycled paper
Paper tray media weight	60 - 90 g/m²
ISO A-series sizes (A0...A9)	A3, A4
ISO B-series sizes (B0...B9)	B4, B5
Maximum ISO A-series paper size	A3
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	574 mm
Width	594.3 mm
Height	581.6 mm
