Xerox WorkCentre 5024

06/2014
5-17
WC 5022/5024
PL 7.1
Parts List
Version 1.0

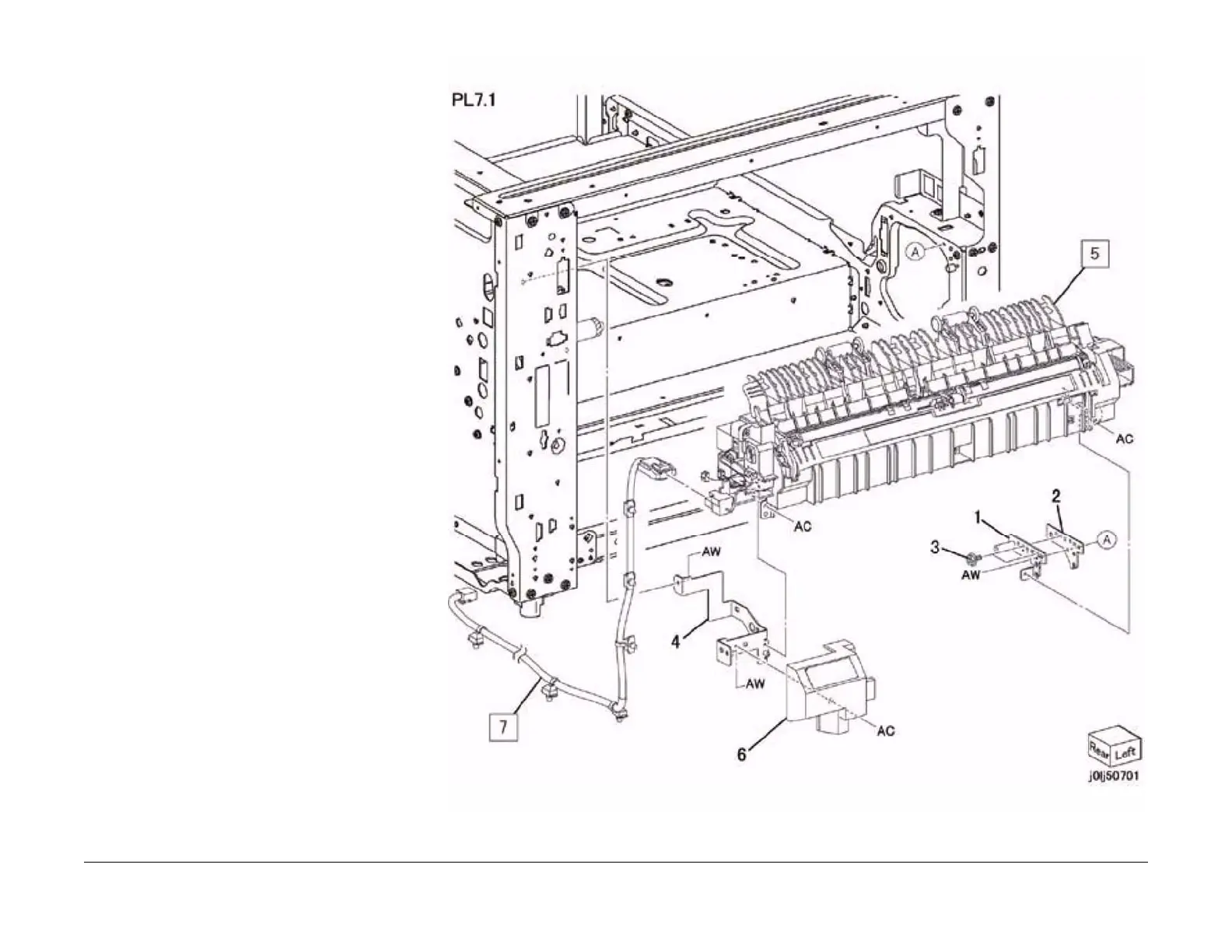

PL 7.1 Fusing Unit
Item Part Description
1 – Fusing Unit Stud Plate
2 – Adjust Plate
3 – Stud Screw
4 – Fusing Unit Rear Bracket
5 126K30556 220V-Fusing Unit (REP 7.1.1)
– 126K31733 120V-Fusing Unit (REP 7.1.1)
6 848E83411 Connector Cover
7 952K01221 220V-Fusing Unit Wire Harness
– 962K69061 120V-Fusing Unit Wire Harness
