WC 5022/5024
Repairs and Asdjustments
Version 1.0
Figure 2 j0lj41906
Replacement

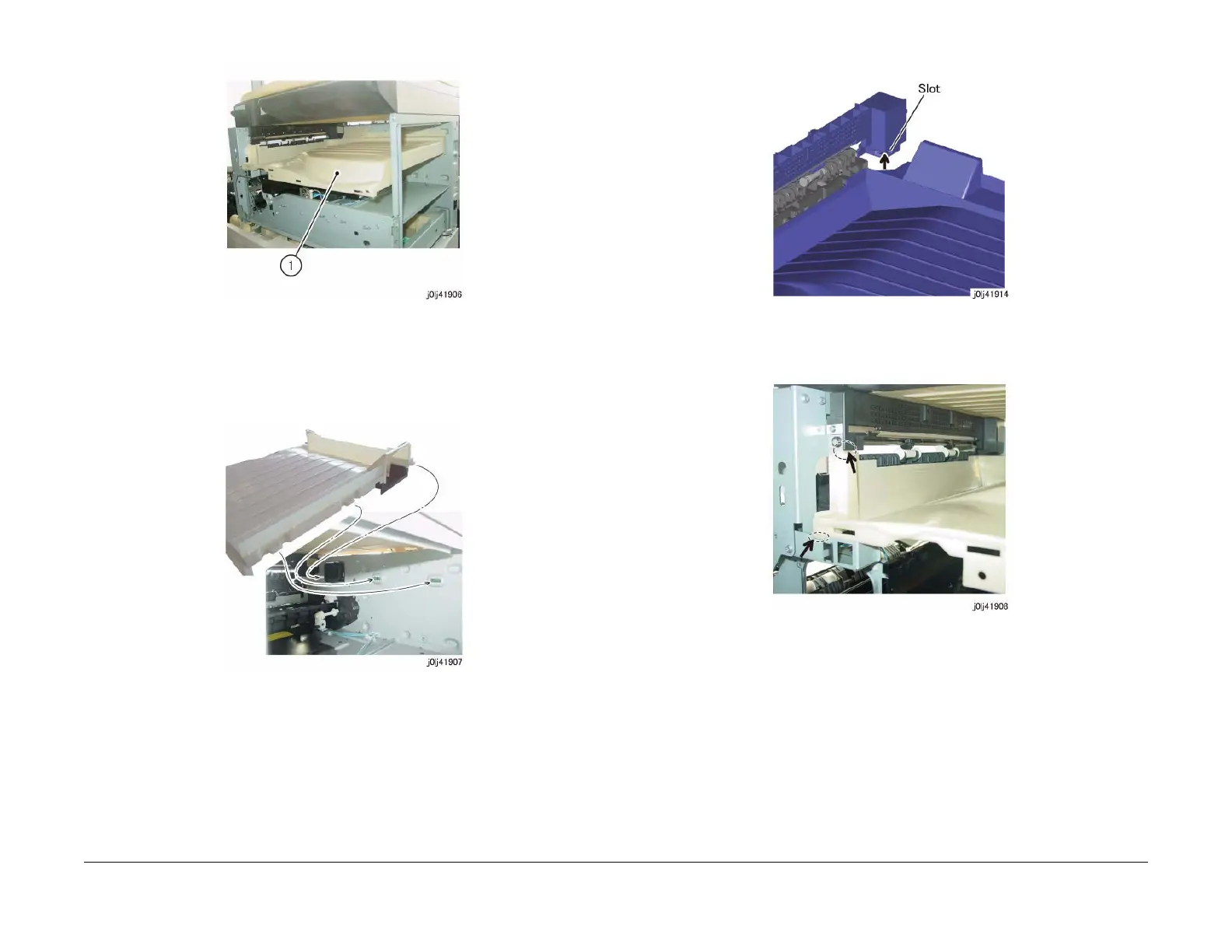

1. To install, carry out the removal steps in reverse order.
2. When installing the Top Cover, insert the Tab (x3) of the Top Cover to the Tab Slot (x3) of
the Frame. (Figure 3)
Figure 3 j0lj41907
3. When installing the Top Cover, insert the portion of the Top Cover that is shown in the fig-
ure into the Slot of the Exit Cover. (Figure 4)
Figure 4 j0lj41914
4. Install the Top Cover with its front left side positioned as shown in the figure. (Figure 5)
Figure 5 j0lj41908
5. When installing the Right Cover, insert the hook (x2) of the Right Cover to the hole (x2) of
the Frame. (Figure 6)
