Xerox WorkCentre 5024

06/2014
4-58
WC 5022/5024
Version 1.0
Repairs and Asdjustments

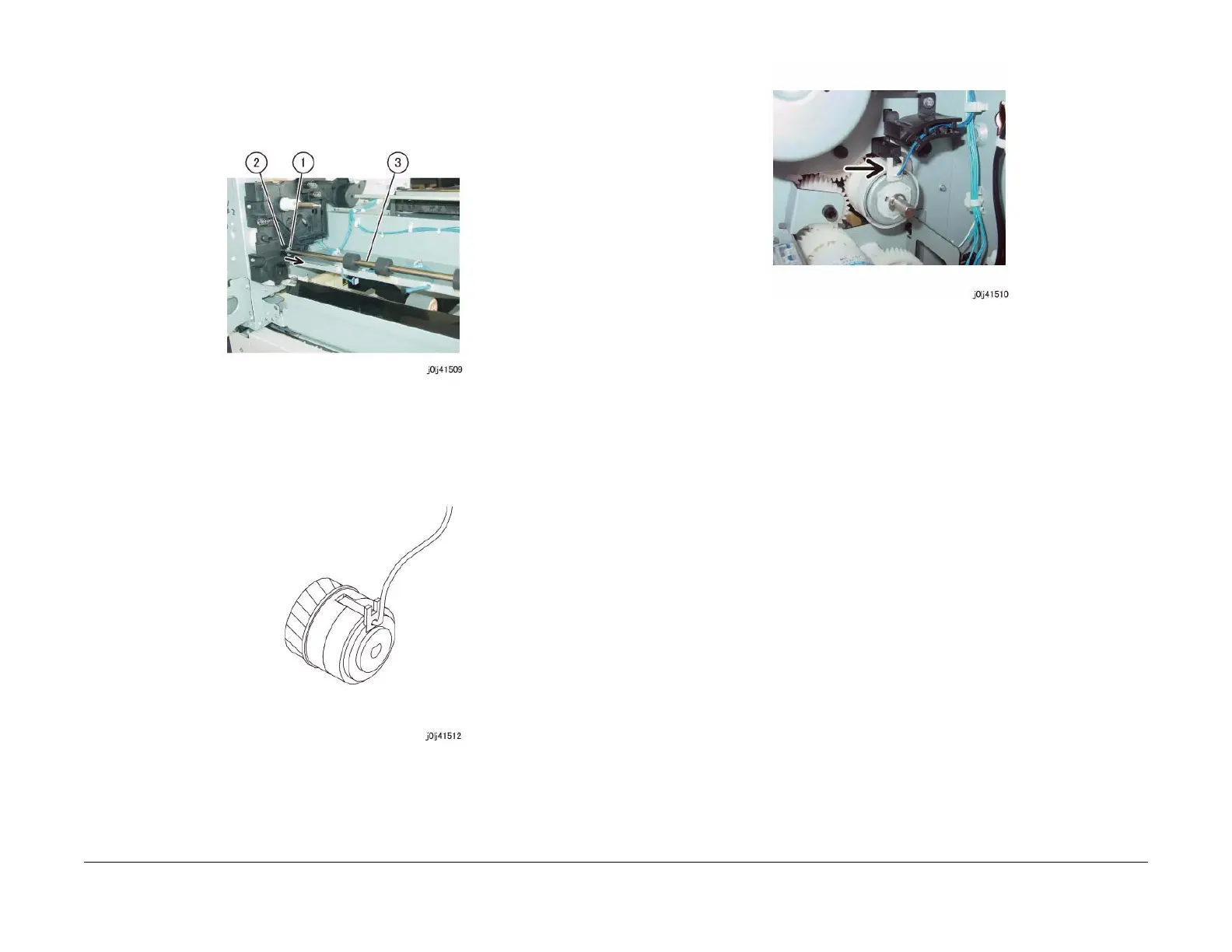

8. Remove the Registration Roll. (Figure 2)
a. Remove the E-Clip.
b. Move the bearing in the direction of the arrow.
c. Remove the Registration Roll.
Figure 2 j0lj41509
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Registration Clutch, align the Tab (x2, top and bottom) of the Registra-
tion Clutch to the Cutout (x2, top and bottom) of the gear. (Figure 3)
Figure 3 j0lj41512
3. When installing the Registration Clutch, align the Cutout of the Registration Clutch to the
Tab. (Figure 4)
Figure 4 j0lj41510
