06/2014
4-40
WC 5022/5024
Version 1.0
Repairs and Asdjustments

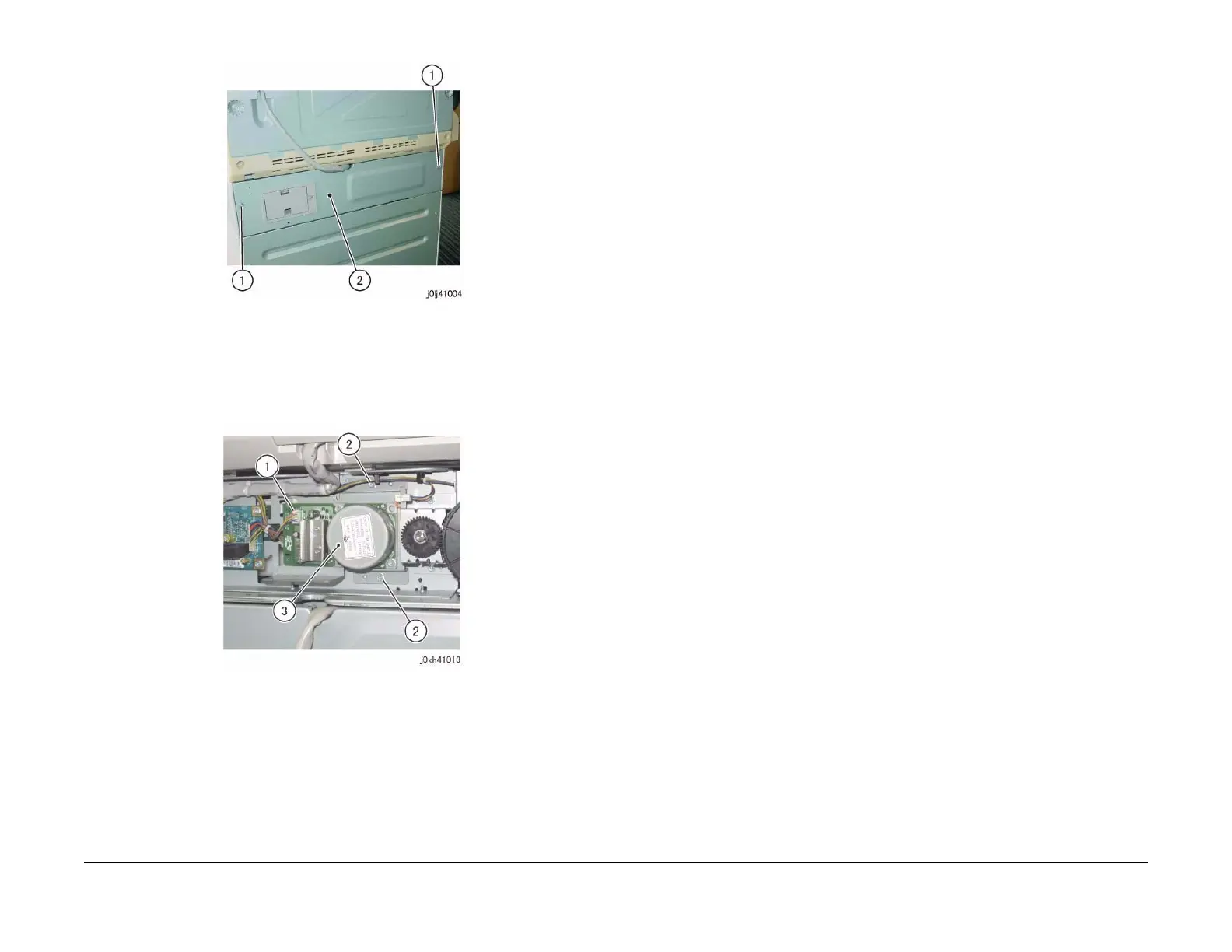

Figure 4 j0lj41004
5. Remove the STM Takeaway Motor. (Figure 5)
a. Disconnect the connector.
b. Remove the screw (x2).
c. Remove the STM Takeaway Motor.
Figure 5 j0xh41010
Replacement
1. To install, carry out the removal steps in reverse order.
