06/2014
4-9
WC 5022/5024
Repairs and Asdjustments
Version 1.0

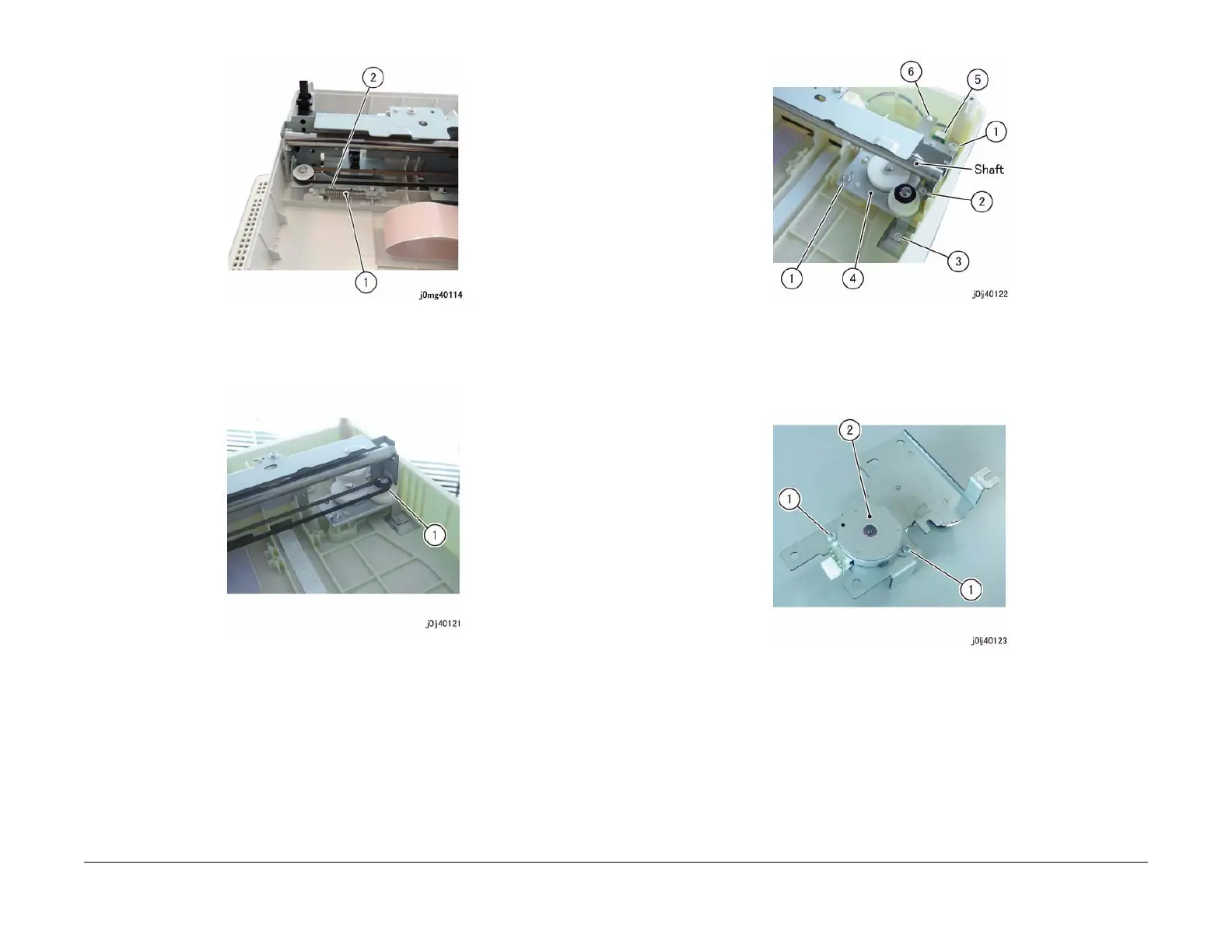

Figure 2 j0mg40114
5. Remove the IIT Carriage Belt from the pulley. (Figure 3)
a. Remove the IIT Carriage Belt from the pulley.
Figure 3 j0lj40121
6. Remove the Carriage Drive and Motor. (Figure 4)
a. Remove the Tapping Screw (x2). (Separate Display - 1)
b. The Shaft is shifted and loosen the screw. (Separate Display - 2)
c. Remove the screw. (Separate Display - 2)
d. Remove the Carriage Drive and Motor.
e. Disconnect the connector.
f. Remove the cable band.
Figure 4 j0lj40122
7. Remove the Carriage Motor. (Figure 5)
a. Remove the screw (x2).
b. Remove the Carriage Motor.
Figure 5 j0lj40123
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
"Chain Link : 956-802"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
