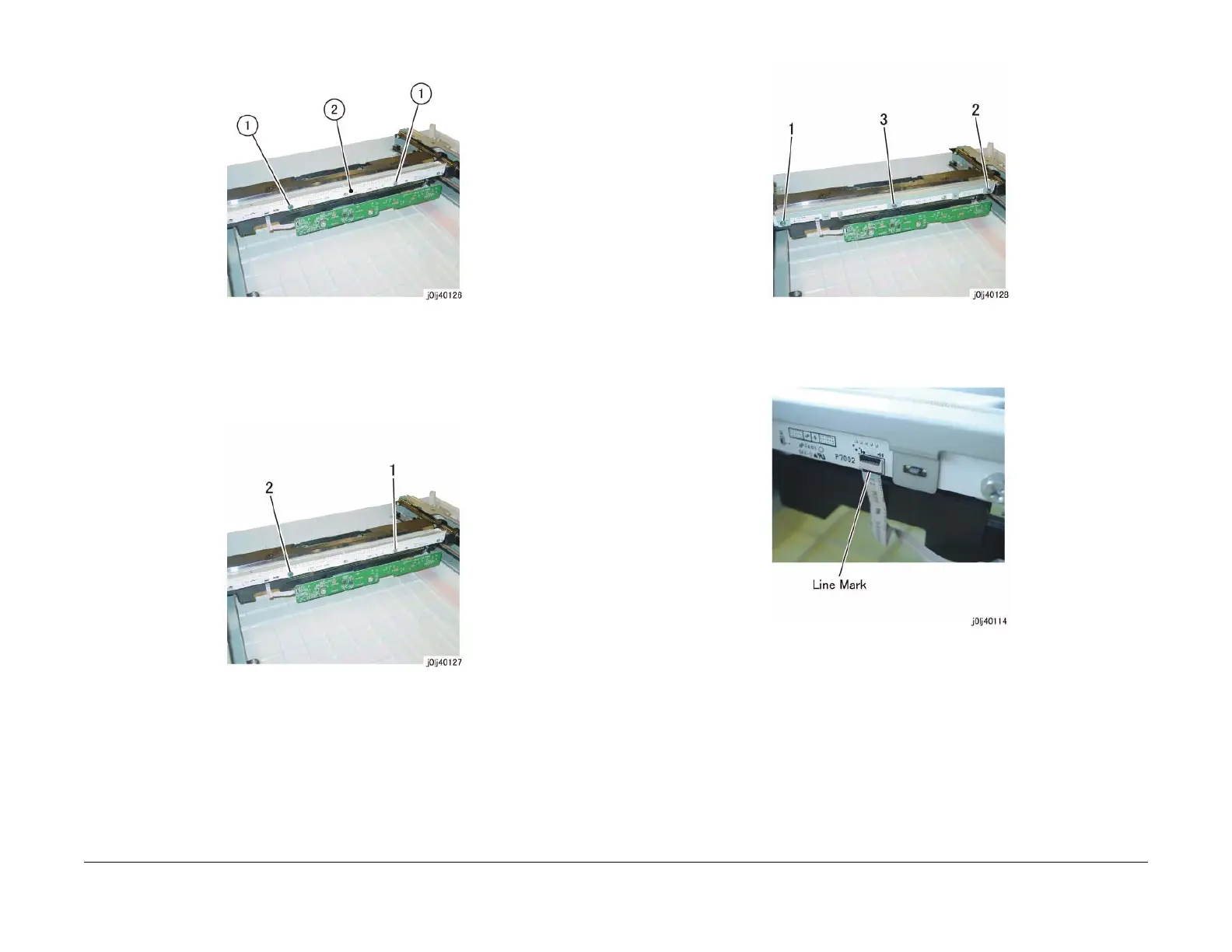

Figure 4 j0lj40126
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the LEB Lamp PWB, tighten the screw of the LED Lamp PWB in the order
of 1 then 2. (Figure 5)
Figure 5 j0lj40127
3. When installing the LEB Bracket, tighten the screw of the LED Bracket in the order of 1 to
3. (Figure 6)
Figure 6 j0lj40128
4. When connecting the connector of the LED Housing, insert it into the Connector Housing
until the Line Mark of the LED Cable is at the position indicated in the figure. (Figure 7)
Figure 7 j0lj40114
5. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
"Chain Link : 956-804"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
