Xerox WorkCentre 5024 - Page 239

06/2014
4-15
WC 5022/5024
Repairs and Asdjustments
Version 1.0

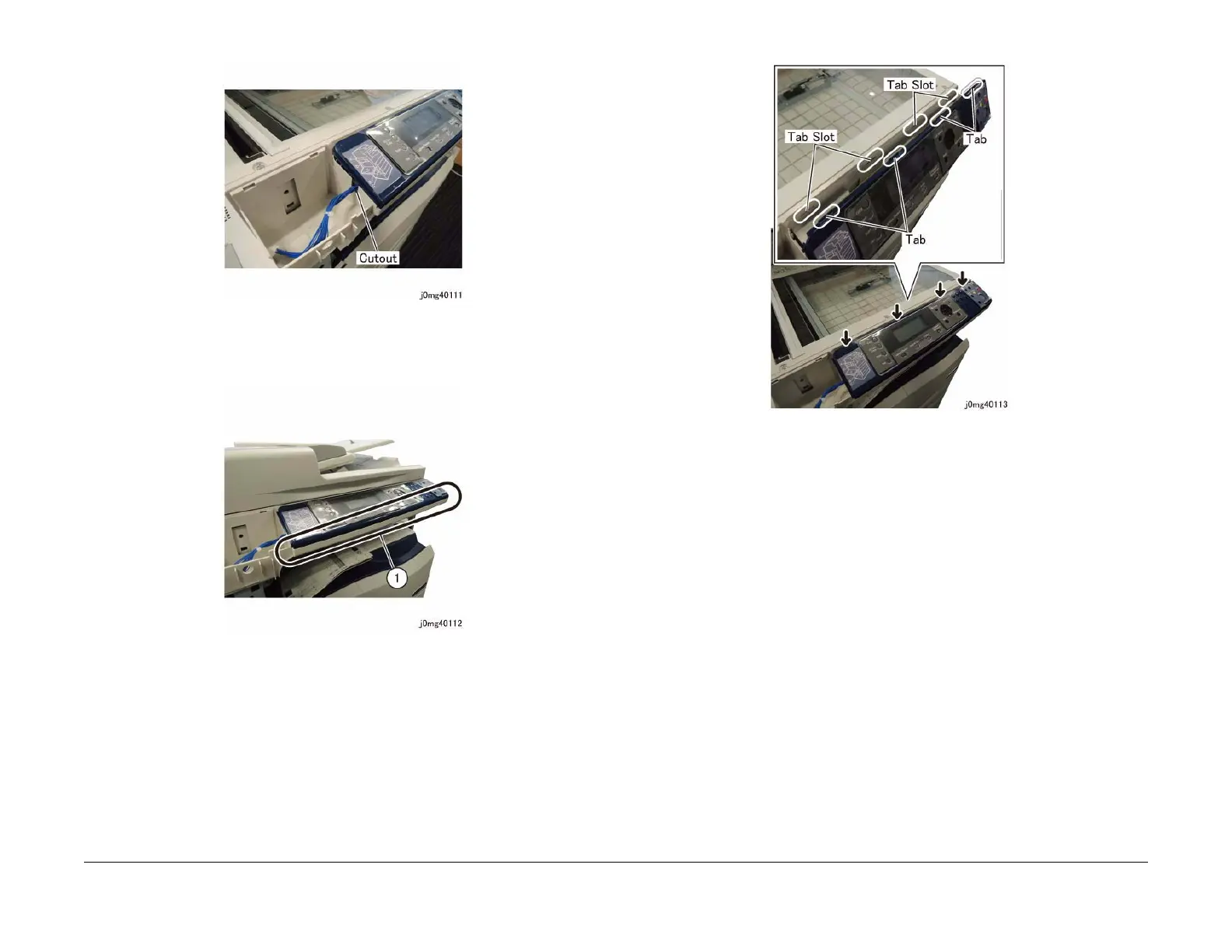

Figure 11 j0mg40111
4. Install the Control Panel by the following procedure. (Figure 12) (Figure 13)
a. At the front, align the Control Panel to the surface IIT Front Cover.
Figure 12 j0mg40112
b. At the rear, press the tab (x4) of the Control Panel at the indicated positions to
secure the Control Panel.
Figure 13 j0mg40113
