Repairs and Asdjustments

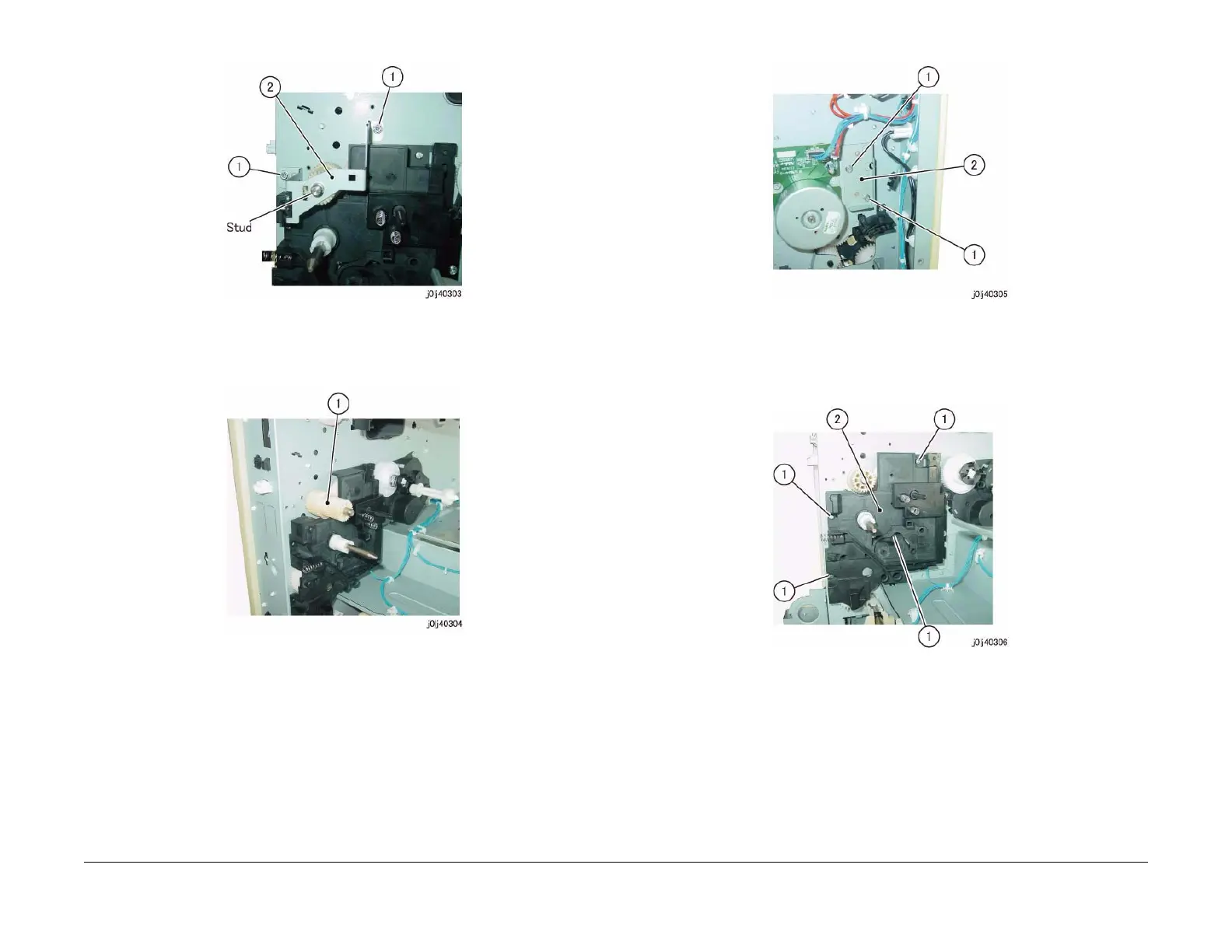

Figure 2 j0lj40303
15. Remove the gear. (Figure 3)
a. Remove the gear.
Figure 3 j0lj40304
16. Remove the Stud Bracket. (Figure 4)
a. Remove the screw (x2).
b. Remove the Stud Bracket.
Figure 4 j0lj40305
17. Remove the Main Drive Housing. (Figure 5)
a. Remove the screw (x4).
b. Remove the Main Drive Housing.
Figure 5 j0lj40306
Replacement
1. To install, carry out the removal steps in reverse order.
