06/2014
4-34
WC 5022/5024
Version 1.0
Repairs and Asdjustments

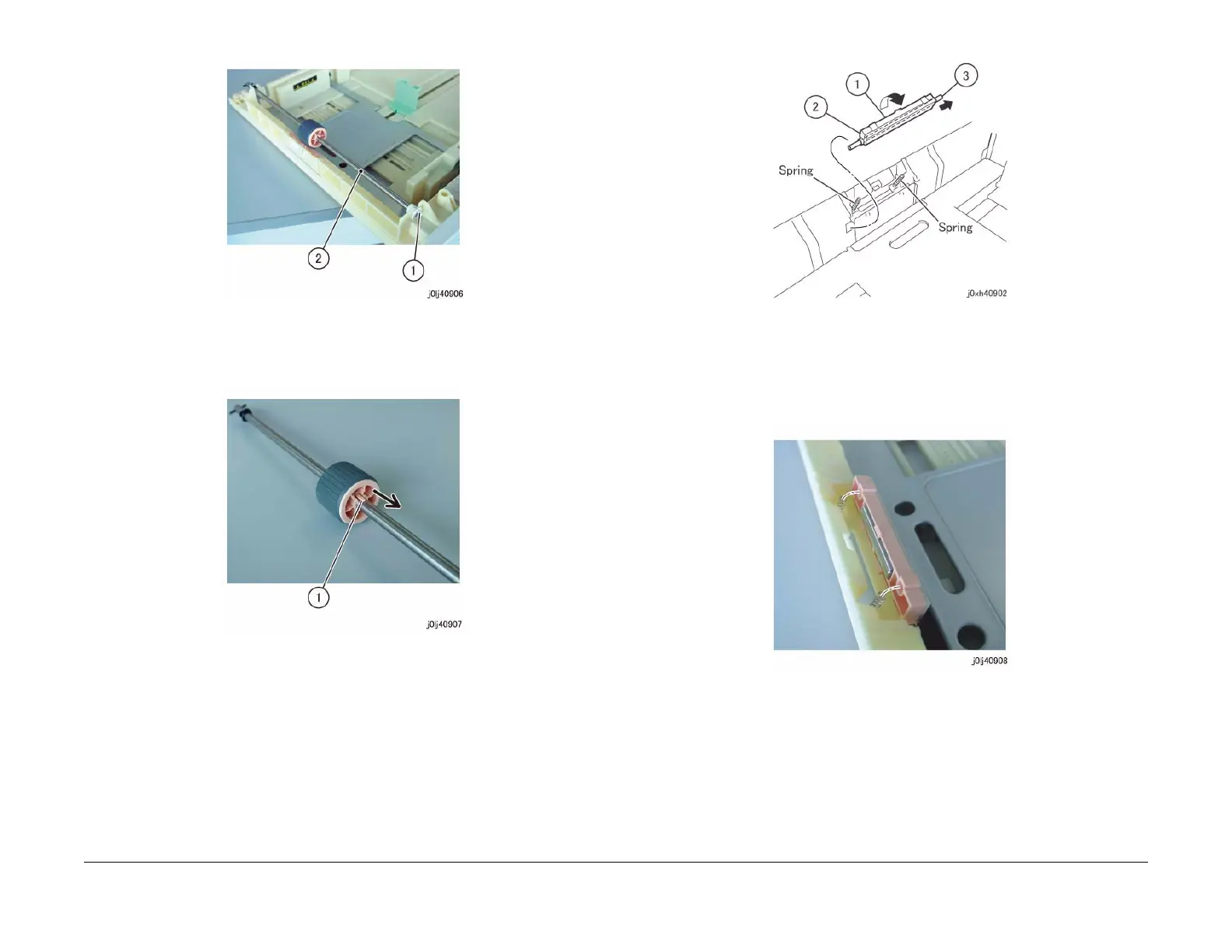

Figure 2 j0lj40906
4. Remove the Tray 1 Feed Roll. (Figure 3)
a. Release the hook and remove the Tray 1 Feed Roll in the direction of the arrow.
Figure 3 j0lj40907
5. Remove the Tray 1 Retard Pad. (Figure 4)
a. Release the hook and open the Tray 1 Retard Pad.
b. Remove the Tray 1 Retard Pad.
c. Pull out and remove the shaft.
Figure 4 j0xh40902
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Tray 1 Retard Pad, attach the spring (x2) to the hole (x2) of the Tray 1
Retard Pad. (Figure 5)
Figure 5 j0lj40908
3. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
"Chain Link : 950-803"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
