Xerox WorkCentre 5024

06/2014
4-49
WC 5022/5024
Repairs and Asdjustments
Version 1.0

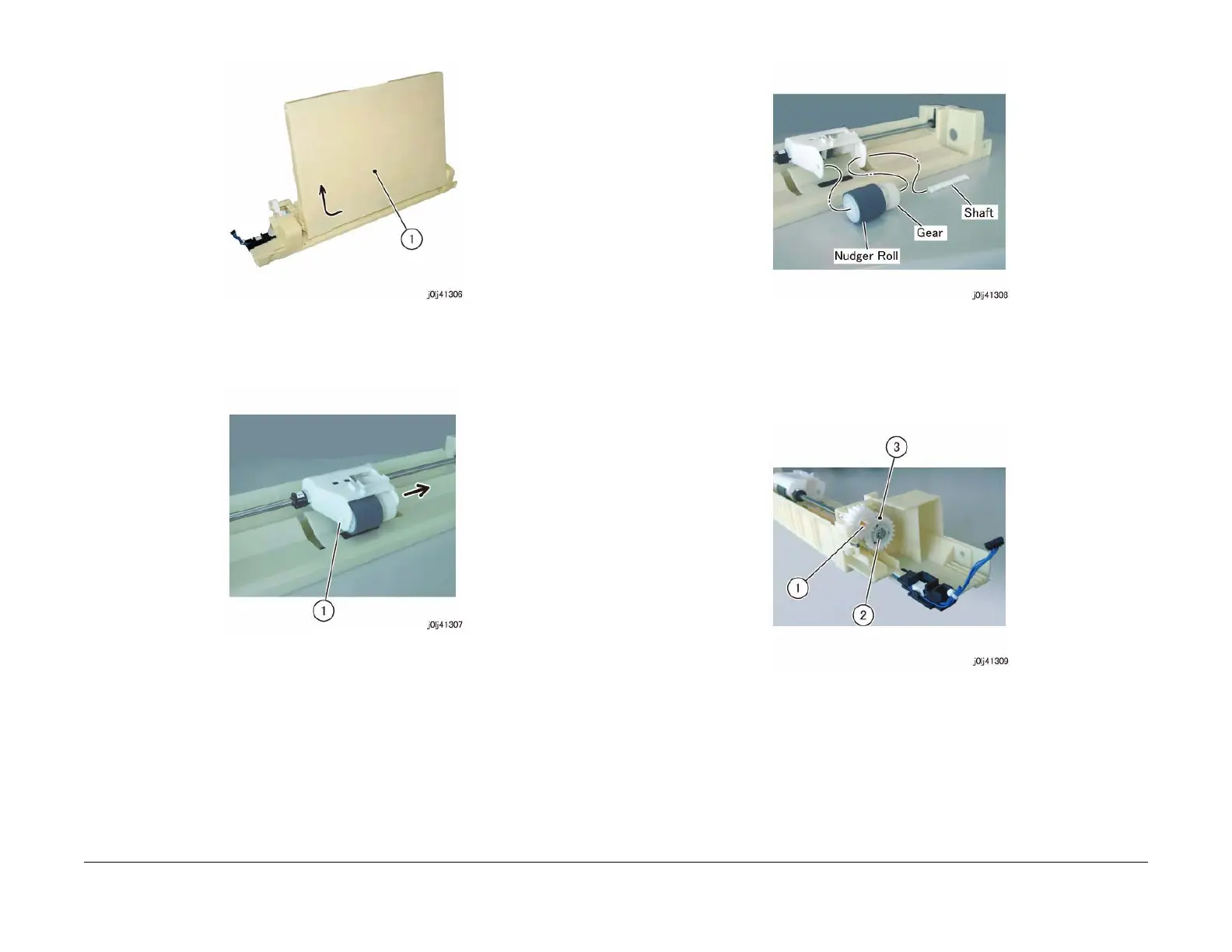

Figure 2 j0lj41306
4. Remove the shaft of the MSI Nudger Roll. (Figure 3)
a. Release the hook of the shaft and remove the shaft in the direction of the arrow.
Figure 3 j0lj41307
5. Remove the MSI Nudger Roll. (Figure 4)
Figure 4 j0lj41308
6. Shift the MSI Feed Clutch from the shaft. (Figure 5)
a. Release the hook to remove the gear.
b. Remove the E-Clip.
c. Shift the MSI Feed Clutch from the shaft.
Figure 5 j0lj41309
7. Remove the MSI Feed Roll Assembly. (Figure 6)
a. Remove the KL-Clip (x2).
b. Remove the MSI Feed Roll Assembly.
