06/2014
4-52
WC 5022/5024
Version 1.0
Repairs and Asdjustments

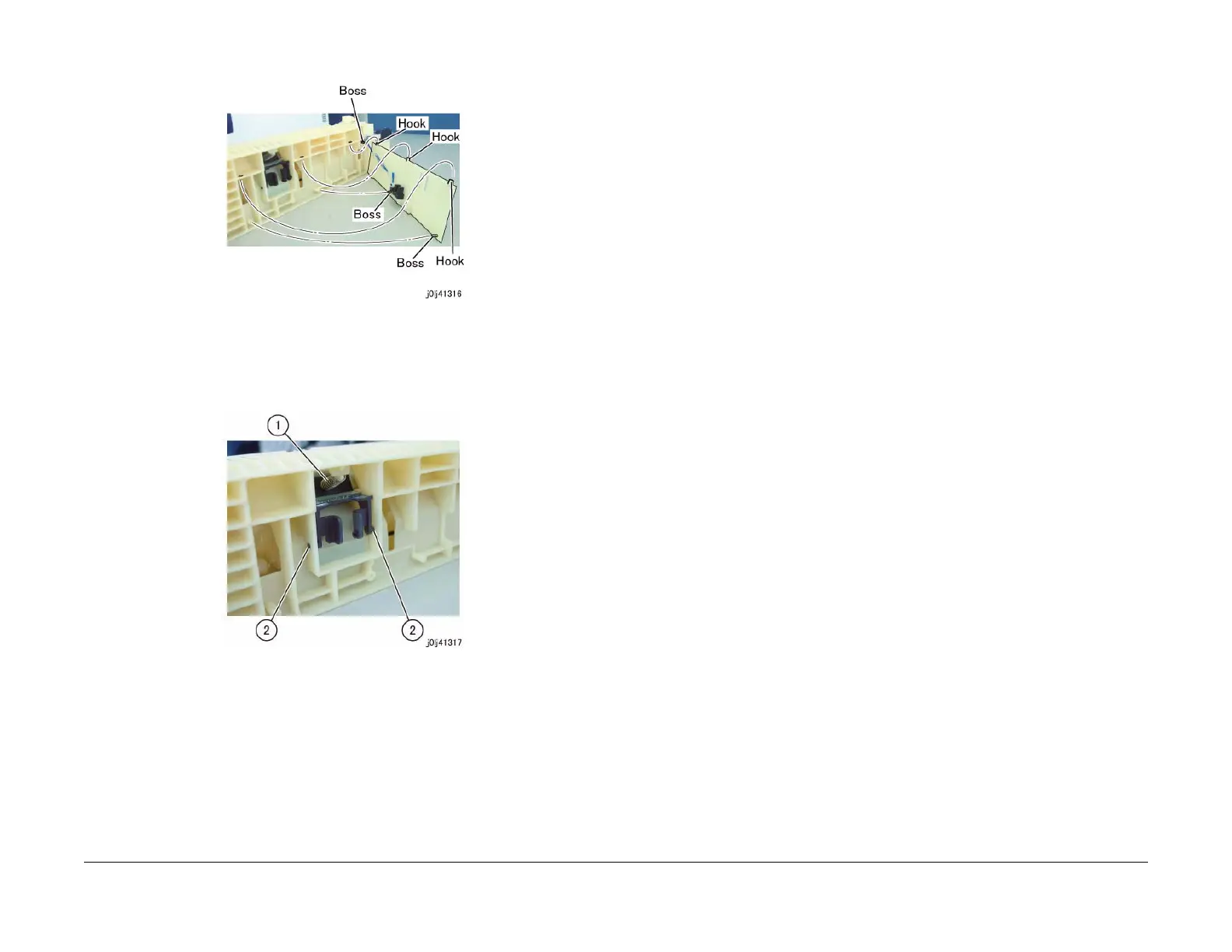

Figure 2 j0lj41316
4. Remove the MSI Retard Pad. (Figure 3)
a. Remove the spring.
b. Release the boss (x2) from the installation holes and remove the MSI Retard Pad.
Figure 3 j0lj41317
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
"Chain Link : 950-802"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
To Next Page
