4-62
WC 5022/5024
Version 1.0
Repairs and Asdjustments

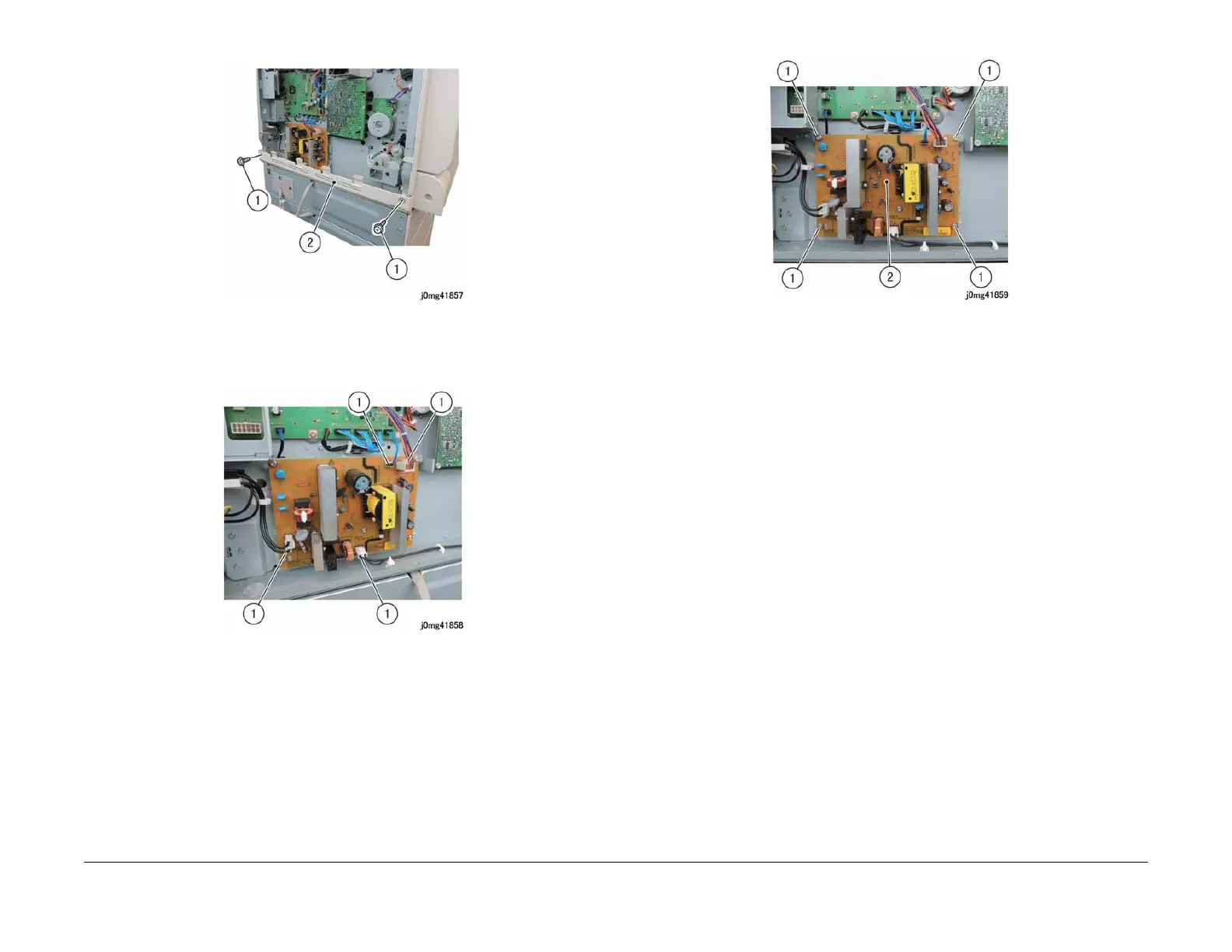

Figure 2 j0mg41857
4. Disconnect the connector of the LVPS.
a. Disconnect the connector (x4).
Figure 3 j0mg41858
5. Remove the LVPS.
a. Remove the screw (x5).
b. Remove LVPS.
Figure 4 j0mg41859
Replacement
1. To install, carry out the removal steps in reverse order.
