Repairs and Asdjustments
Figure 2 j0lj45644

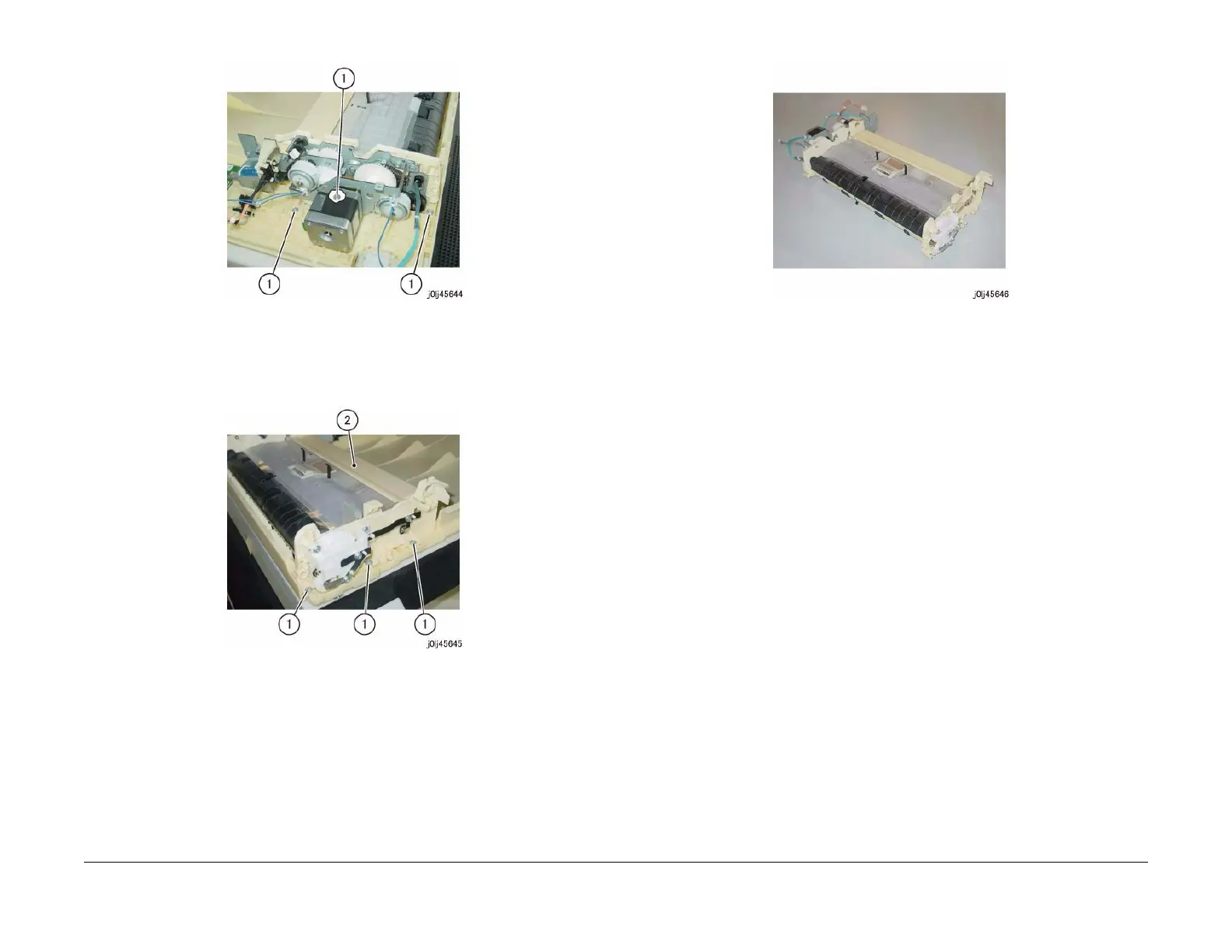

8. Remove the DADF Feeder Assembly. (Figure 3)
a. Remove the Tapping Screw (x3).
b. Remove the DADF Feeder Assembly.
Figure 3 j0lj45645
Reference: This shows the removed DADF Feeder Assembly. (Figure 4)
Figure 4 j0lj45646
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
"Chain Link : 955-806"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
