Xerox WorkCentre 5024

06/2014
4-83
WC 5022/5024
Repairs and Asdjustments
Version 1.0

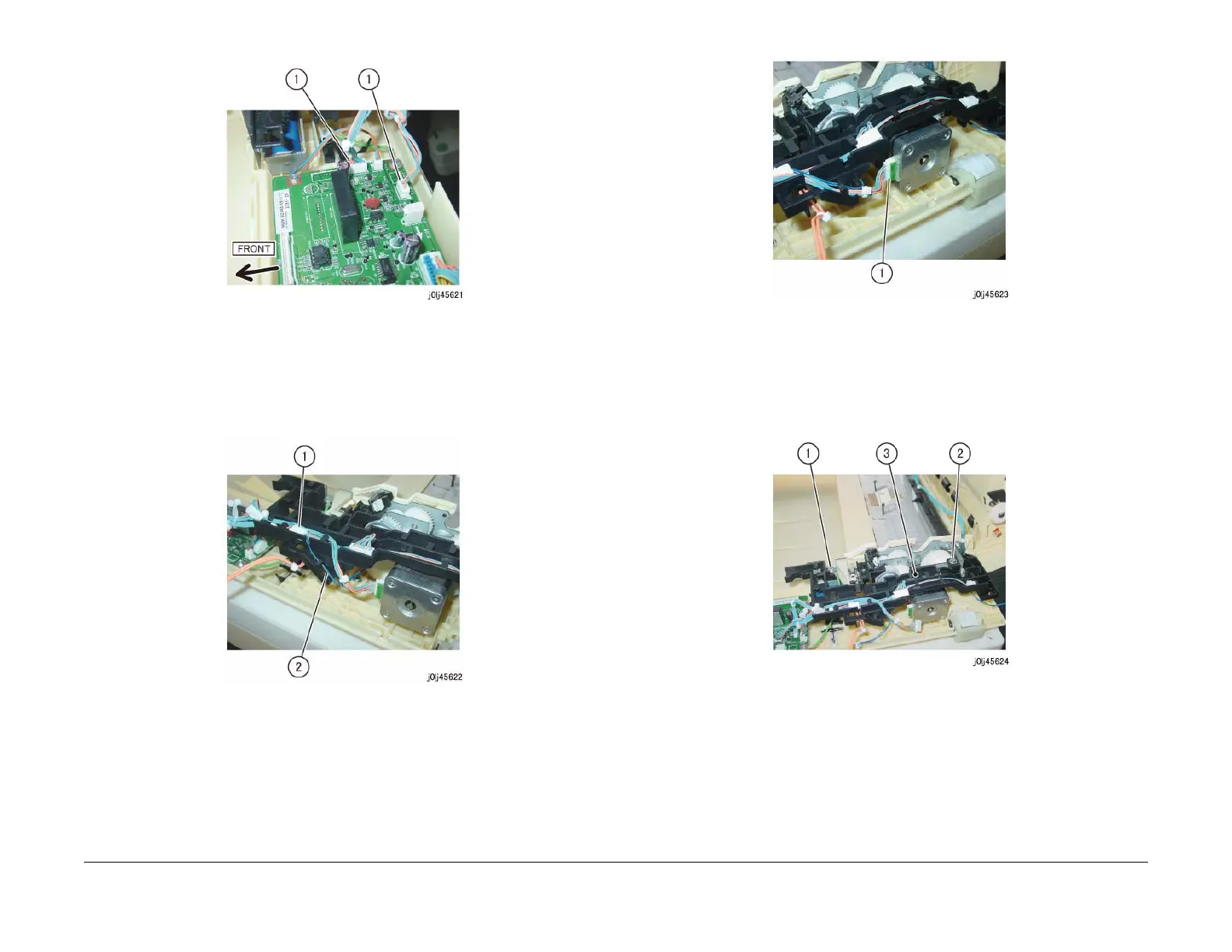

Figure 4 j0lj45621
8. Disconnect the connector of the DADF Feed Clutch and remove the wire harness from
the Harness Guide.
(Figure 5)
a. Disconnect the connector.
b. Remove the wire harness from the Harness Guide.
Figure 5 j0lj45622
9. Disconnect the connector of the DADF Feed Motor. (Figure 6)
a. Disconnect the connector.
Figure 6 j0lj45623
10. Remove the Harness Guide and the wire harness. (Figure 7)
a. Remove the screw and the Ground Wire.
b. Remove the screw.
c. Remove the Harness Guide and the wire harness.
Figure 7 j0lj45624
Reference: This shows the removed Harness Guide and wire harness. (Figure 8)
