Repairs and Asdjustments
Figure 2 j0lj45632
8. Remove the DADF Takeaway Clutch. (Figure 3)
a. Remove the E-Clip.
b. Remove the DADF Takeaway Clutch.

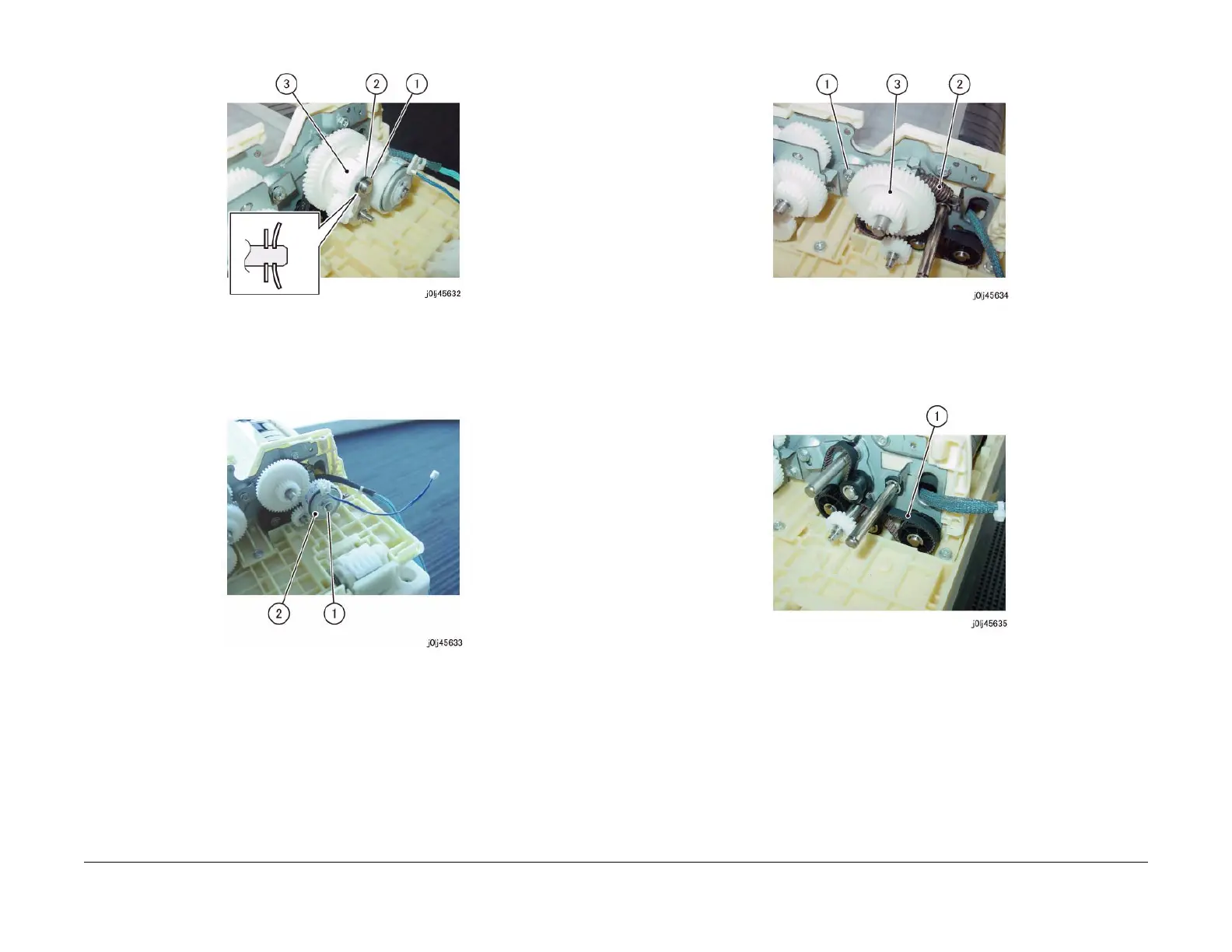

Figure 3 j0lj45633
9. Remove the gear. (Figure 4)
a. Loosen the screw.
b. Remove the spring.
c. Remove the gear.
Figure 4 j0lj45634
10. Remove the DADF Drive Belt. (Figure 5)
a. Remove the DADF Drive Belt.
Figure 5 j0lj45635
Replacement
1. To install, carry out the removal steps in reverse order.
