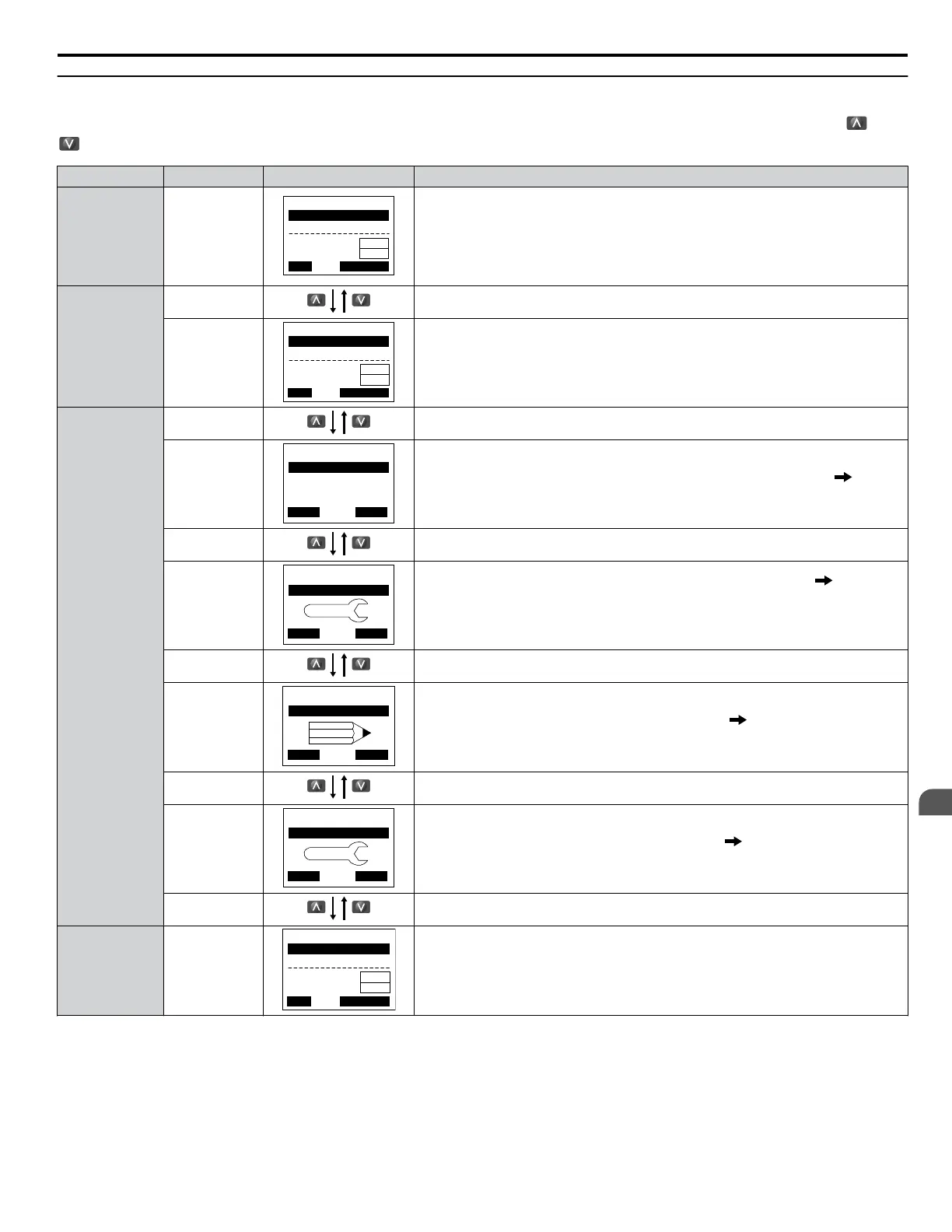

Navigating the Drive and Programming Modes
The drive is set to operate in Drive Mode when it is first powered up. Switch between display screens by using the
and
keys.
Mode Contents Operator Display Description
Power Up
Frequency
Reference
(default)
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
This display screen allows the user to monitor and change the frequency reference while
the drive is running. Refer to The Drive, Programming, and Clock Adjustment
Modes on page 114.
Note: Use parameter o1-02 to select the data displayed when the drive is first
powered up. Setting parameter A1-02 to 6 or 7 (AOLV/PM or CLV/PM
control) will change display units to percent.
Drive Mode
Monitor Display
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
Monitor Menu
Rdy
JOG FWD FWD/REV
LSEQ
LREF
Lists the monitor parameters (Uo-oo parameters) available in the drive.
Press the Enter Key and then use the Up, Down, ESC, and Reset keys to navigate through
the drive monitors.
Programming
Mode
Verify Menu
- MODE - PRG
Modified Consts
HELP DATA
FWD
Modified
X Parameters
Lists all parameters that have been edited or changed from default settings. Refer to
Verifying Parameter Changes: Verify Menu on page 120.
Setup Group
HELP
- MODE - PRG
Quick Setting
DATA
FWD
A select list of parameters necessary to get the drive operating quickly. Refer to
Using the Setup Groups on page 121.
Note: Parameters listed in the Setup Group differ depending the Application
Preset in parameter A1-06. Refer to Application Selection on page 126.
Parameter
Setting Mode
HELP
- MODE - PRG
DATA
Programming
FWD
Allows the user to access and edit all parameter settings. Refer to Parameter List on
page 431.
Auto-Tuning
Mode
HELP
- MODE - PRG Rdy
Auto-Tuning
DATA
AUTO
FWD
Motor parameters are calculated and set automatically. Refer to Auto-Tuning on
page 129.
Drive Mode
Frequency
Reference
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
Returns to the frequency reference display screen.
n
Drive Mode Details
The following actions are possible in the Drive Mode:
• Run and stop the drive
• Monitor the operation status of the drive (frequency reference, output frequency, output current, output voltage, etc.)
• View information on an alarm
• View a history of alarms that have occurred
4.3 The Drive, Programming, and Clock Adjustment Modes
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual
117
4
Start-Up Programming
& Operation
