YASKAWA P1000 Technical Manual

8.3 Connecting Peripheral Devices

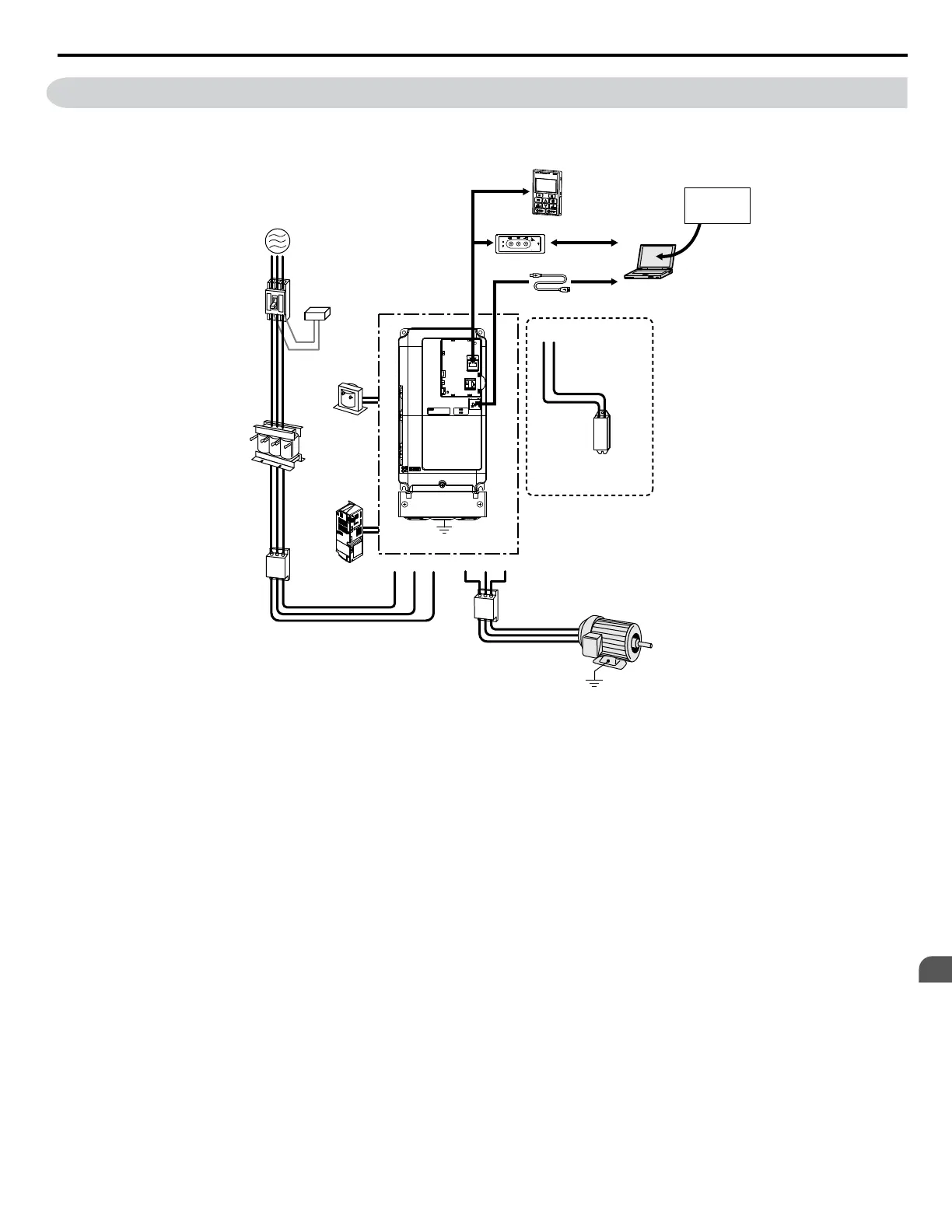

Figure 8.1 illustrates how to configure the drive and motor to operate with various peripheral devices.
Refer to the specific manual for the devices shown below for more detailed installation instructions.
Copy Verify
Read
LOCK
YASKAWA
JVOP-181
USB Copy Unit
COM ERR
PC
DriveWizard Industrial
Engineering Software Tool
Power
Supply
Line
Breaker
(MCCB)
or
Leakage
Breaker
Surge
Absorber
DC Link Choke
AC Reactor
Input Side
Noise Filter
Braking Resistor
or Braking Resistor Unit
Output Side
Noise Filter
Drive
Ground
B1 B2
Motor
U/T1V/T2W/T3R/L1
24 V control
power supply
unit
S/L2
+2
+1
T/L3
Ground
USB Copy unit
USB Type-AB Cable
(sold separately)
LCD Operator
USB Cable
(Type-AB)
Figure 8.1 Connecting Peripheral Devices
Note: If the drive is set to trigger a fault output when the fault restart function is activated (L5-02 = 1), then a sequence to interrupt power when
a fault occurs will turn off the power to the drive while the drive attempts to restart. The default setting for L5-02 is 0 (fault output active
during restart).
8.3 Connecting Peripheral Devices
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual
377
8
Peripheral Devices & Options

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
