YASKAWA P1000 Technical Manual

3.4 Terminal Block Configuration

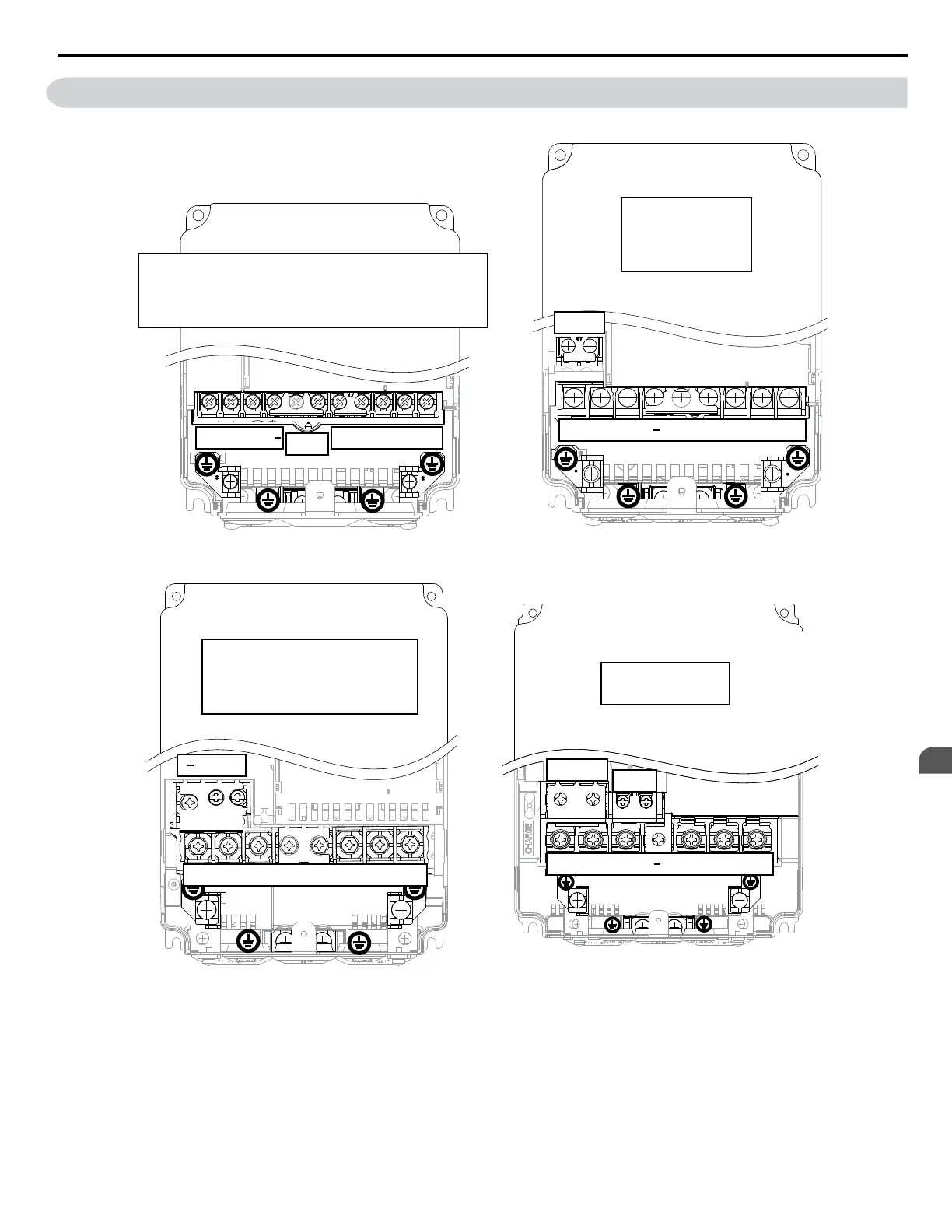

Figure 3.9 to Figure 3.12 show the different main circuit terminal arrangements for the drive capacities.
R/L1 S/L2 T/L3
B1 B2
U/T1 V/T2 W/T3
+1 +2
B1 B2
R/L1 S/L2 T/L3
+1 +2 U/T1 V/T2 W/T3
2A0004, 0006, 0008, 0010, 0012, 0018, 0021
4A0002, 0004, 0005, 0007, 0009, 0011
5A0003, 0004, 0006, 0009
2A0030, 0040
4A0018, 0023
5A0011
Figure 3.9 Main Circuit Terminal Block Configuration
B1 B2
R/L1 S/L2 T/L3 +1 +2 U/T1 V/T2 W/T3
B1 B2
+1 +2
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
B1 B2
+1 +2
2A0056
4A0031, 0038, 0044
5A0017, 0022, 0027, 0032
2A0069, 0081
Figure 3.10 Main Circuit Terminal Block Configuration (continued)
3.4 Terminal Block Configuration
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual
75
3
Electrical Installation

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
