YASKAWA P1000 Technical Manual

u
Cooling Fan Component Names
WARNING! Electrical Shock Hazard. Do not connect or disconnect wiring while the power is on. Failure to comply can result in serious
personal injury. Before servicing the drive, disconnect all power to the equipment. The internal capacitor remains charged even after the
power supply is turned off. After shutting off the power, wait for at least the amount of time specified on the drive before touching any
components.
CAUTION! Burn Hazard. Do not touch a hot drive heatsink. Failure to comply could result in minor or moderate injury. Shut off the power
to the drive when replacing the cooling fan. To prevent burns, wait at least 15 minutes and ensure the heatsink has cooled down.
C
E
G
D
B
A
2A0018 to 2A0081
4A0007 to 4A0044
5A0006 to 5A0032
2A0110 to 2A0138
4A0058 to 4A0103
5A0041 to 5A0052
2A0169 to 2A0415
4A0139 to 4A0362
5A0062 to 5A0242
D
A
D

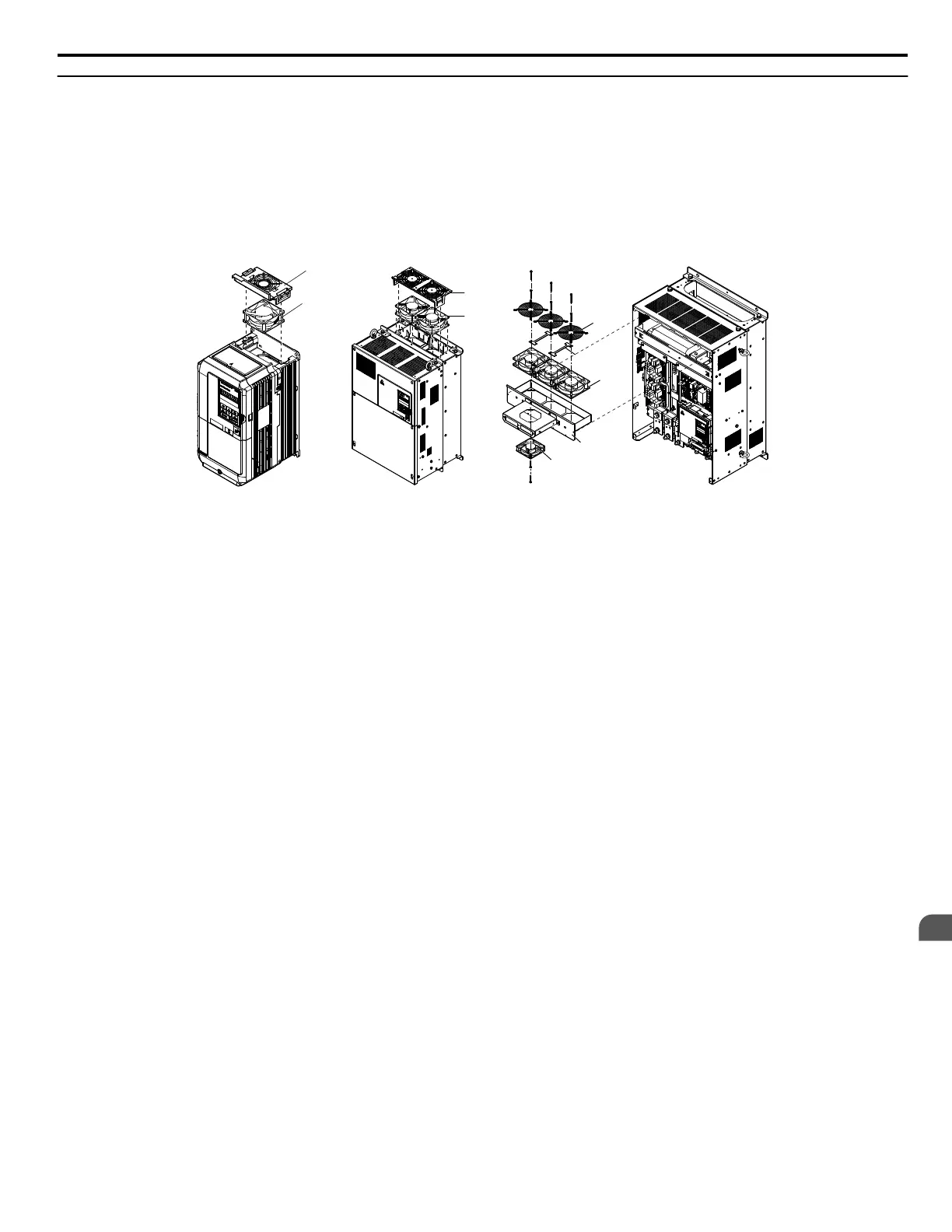

Figure 7.1 Cooling Fan Component Names
Remaining models can be found on the following page.
7.4 Drive Cooling Fans
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual
347
7
Periodic Inspection & Maintenance

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
