Simplified Setup Using the Setup Groups
The Setup Groups list the basic parameters necessary to set up the drive for a given application. Setup groups expedite the
startup process for an application by showing only the most important parameters for the application.
n
Using the Setup Groups

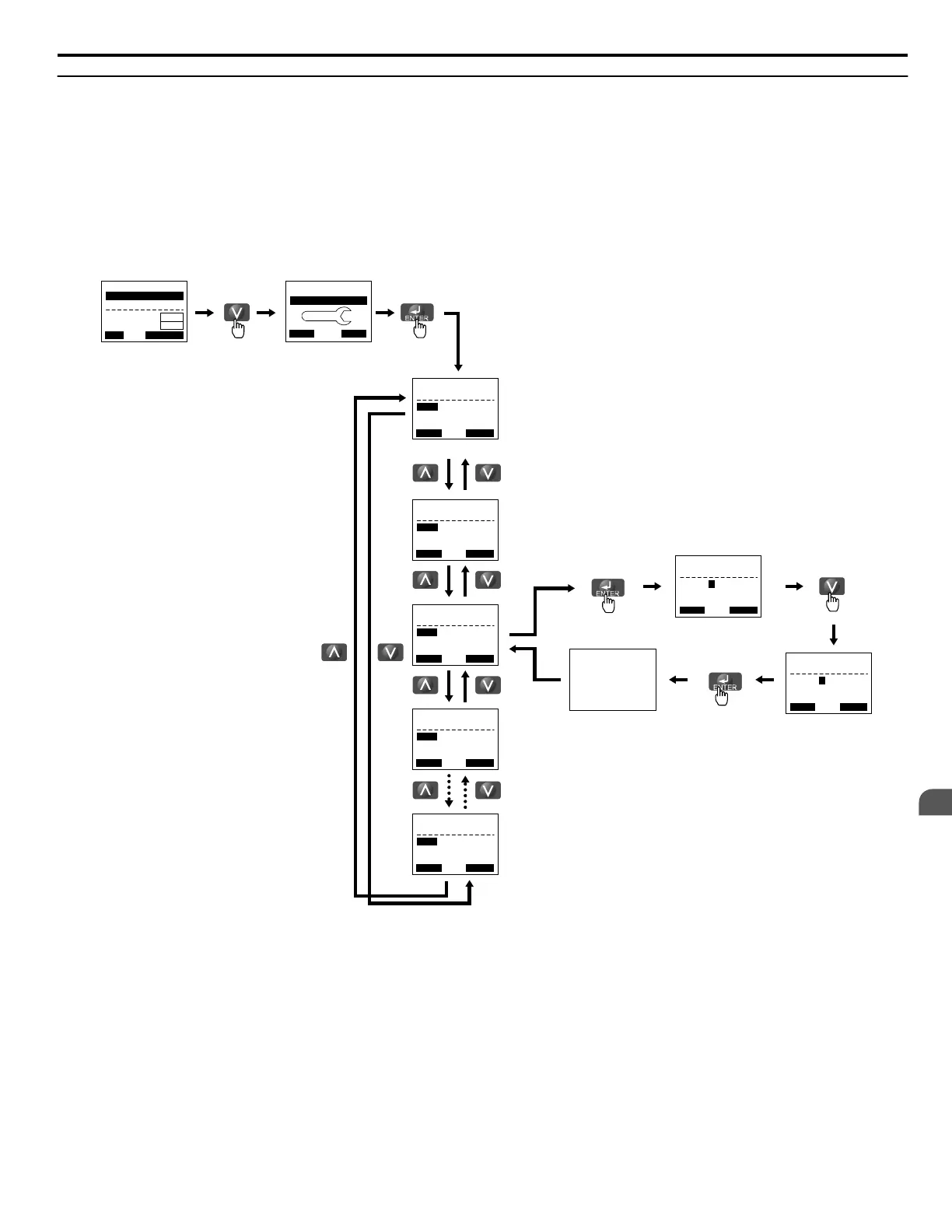

Figure 4.8 illustrates how to enter and how to change parameters in the Setup Group.
The default setting for the Setup Group is a group of parameters most commonly use in general-purpose applications. Refer
to Application Selection on page 126 to select an Application Preset and change the Setup Group to parameters optimal for
the application selected. .
←
→
←
→
Control Circuit
Terminal
Parameter Display
Operator
<1>
<2>
<2>
Frequency reference
appears when
powered up
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
HELP
- MODE - PRG
Quick Setting
DATA
FWD
Entry Accepted
- SETUP -
b1-01= 1 *1*
Analog Input
PRG
Ref Source 1
Rdy
Home FWD DATA
- SETUP -
A1-06= 0 *0*
General
PRG
Application Sel
Rdy
Home FWD DATA
- SETUP -
A1-02= 0 *0*
V/f Control
PRG
Control Method
Rdy
Home FWD DATA
- SETUP -
b1-02= 1 *1*
Digital Inputs
PRG
Run Source 1
Rdy
Home FWD DATA
- SETUP -
L3-04= 1 *1*
General Purpose
PRG
StallP Decel Sel
Rdy
Home FWD DATA
“1”
- SETUP -
b1-01= 1 *1*
Analog Input
PRG
Ref Source 1
Rdy
FWD
“1”
- SETUP -
b1-01= 0 *1*
Operator
PRG
Ref Source 1
Rdy
FWD
A1-06 value cannot be set.
It is for display only.
Figure 4.8 Setup Group Example
<1> Use the up and down arrow keys to scroll through the Setup Group. Press the ENTER key to view or change parameter settings.
<2> To return to the previous menu without saving changes, press the ESC key.
4.3 The Drive, Programming, and Clock Adjustment Modes
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual
121
4
Start-Up Programming
& Operation
