YASKAWA P1000 Technical Manual

E.1 Drive and Motor Specifications
u

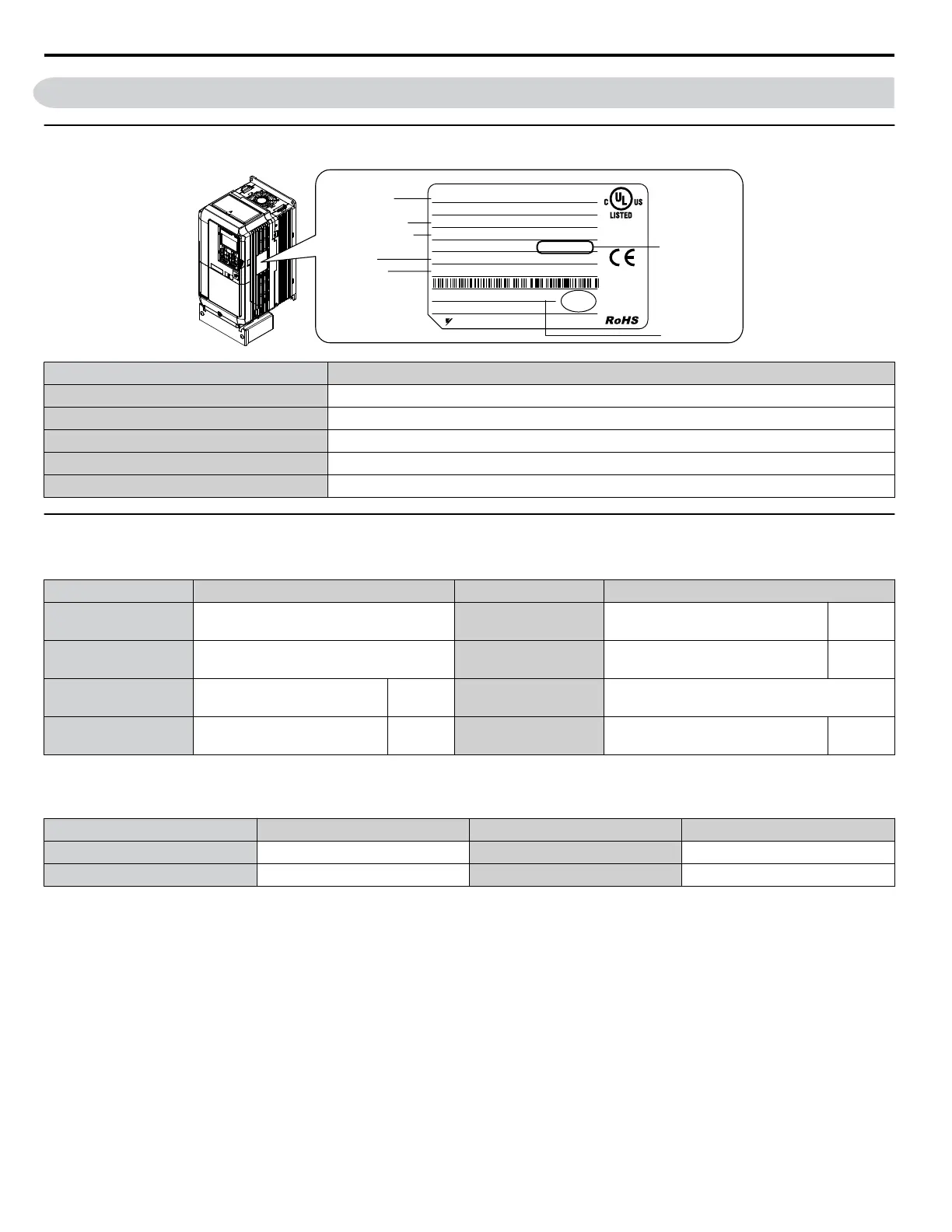

Drive Specifications
AC drive model
Input specifications
Output specifications
Lot number
Serial number
Software version
Enclosure type
PRG : 8500
IND.CONT.EQ.
7J48 B
YASKAWA ELECTRIC CORPORATION Assembled in USA
: CIMR-PU2A0004FAA
PASS
MODEL
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
REV : A
: AC3PH 200-240V 50/60Hz 3. 9A
: AC3PH 0-240V 0-400Hz 3. 5A
: 3. 3 kg
:
:
: E131457 IP20
C/C
CIMR-PU2A0004FAA:
6W3050-0-100 VAJ123456
J0073D207410100
Items Description
Model CIMR-P
Serial Number
Software Version (PRG)
Options used
Date of Usage
u
Motor Specifications
n
Induction Motor
Items Description Items Description
Manufacturer
Motor Rated Current
(T1-04)
A
Model
Motor Base
Frequency (T1-05)
Hz
Motor Rated Power
(T1-02)
HP
Number of Motor
Poles (T1-06)
Motor Rated Voltage
(T1-03)
V
Motor Base Speed
(T1-07)
r/min
Note: These values must be entered as part of the Auto-Tuning process.
n
Motor Speed Encoder (if used)
Items Description Items Description
Manufacturer Resolution
Interface
E.1 Drive and Motor Specifications
570
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
