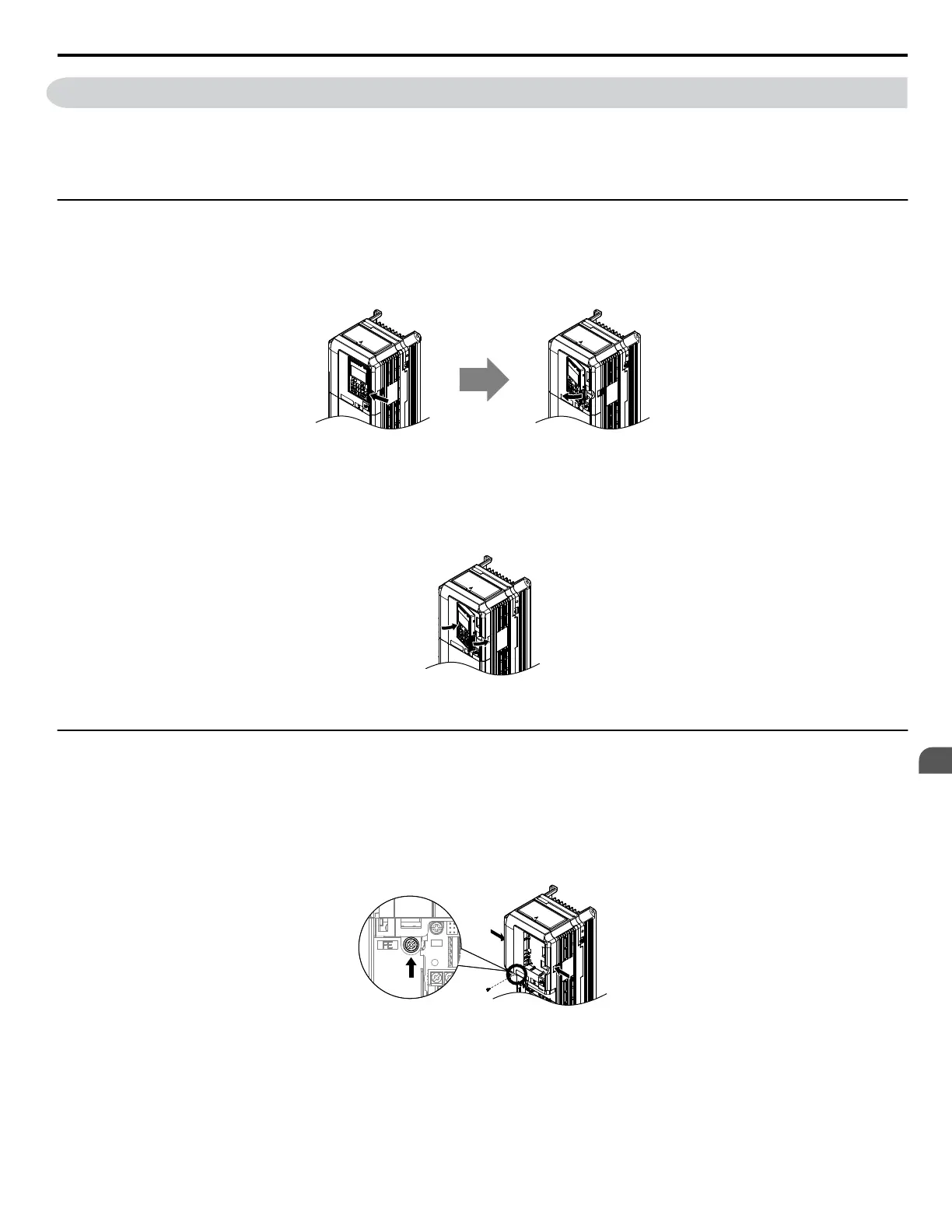

3.6 Digital Operator and Front Cover
Detach the digital operator from the drive for remote operation or when opening the front cover to install an option card.
NOTICE: Be sure to remove the digital operator prior to opening or reattaching the front cover. Leaving the digital operator plugged into the
drive when removing the front cover can result in erroneous operation caused by a poor connection. Firmly fasten the front cover back into
place before reattaching the digital operator.
u
Removing/Reattaching the Digital Operator
n
Removing the Digital Operator
While pressing on the tab located on the right side of the digital operator, pull the digital operator forward to remove it from
the drive.
Figure 3.19 Removing the Digital Operator
n
Reattaching the Digital Operator
Insert the digital operator into the opening in the top cover while aligning it with the notches on the left side of the opening.
Next, press gently on the right side of the operator until it clicks into place.
Figure 3.20 Reattaching the Digital Operator
u
Removing/Reattaching the Front Cover
n
Removing the Front Cover
Models 2A0004 to 2A0081, 4A0002 to 4A0044, and 5A0003 to 5A0032
After removing the terminal cover and the digital operator, loosen the screw that affixes the front cover (models
2A0056, 4A0038, 5A0022, and 5A0027 do not use a screw to affix the front cover) . Pinch in on the tabs found on each side
of the front cover, then pull forward to remove it from the drive.
Figure 3.21 Remove the Front Cover (2A0004 to 2A0081, 4A0002 to 4A0044, and 5A0003 to 5A0032)
Models 2A0110 to 2A0415 and 4A0058 to 4A1200
1.
Remove the terminal cover and the digital operator.
2.
Loosen the installation screw on the front cover.
3.
Use a straight-edge screwdriver to loosen the hooks on each side of the cover that hold it in place.
3.6 Digital Operator and Front Cover
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual
79
3
Electrical Installation
