YASKAWA P1000 Technical Manual

u
Front Views
E(G) IG R+ R- S+ S-
S1 S2 S3 S4 S5 S6 S7 S8 SN SC SP
V+ AC A1 A2 A3 FM AM AC 24VRP AC
M1 M2 M3 M4
MD ME MF
MA MB MC
H
D
E
F
G
K
J
I
I
K
J
A
H
C
D
E
F
G
2A0012F 2A0110A
B
B
A
E(G) IG R+ R- S+ S-
S1 S2 S3 S4 S5 S6 S7 S8 SN SC SP
V+ AC A1 A2 A3 FM AM AC 24VRP AC
M1 M2 M3 M4
MD ME MF
MA MB MC
A – Jumper S5 (Refer to Terminal AM/
FM Signal Selection on page 102)
B – Jumper S1 (Refer to Terminals A1,
A2, and A3 Input Signal Selection
on page 101)
C – Protective cover to prevent
miswiring
D – Main circuit terminal (Refer to
Wiring the Main Circuit Terminal
on page 94)
E – Terminal board (Refer to Control
Circuit Wiring on page 95)
F – Ground terminal
G – DIP switch S2 (Refer to MEMOBUS/
Modbus Termination on page 102)
H – Terminal board connector
I – Option card connector (CN5-C)
J – Option card connector (CN5-B)
K – Option card connector (CN5-A)

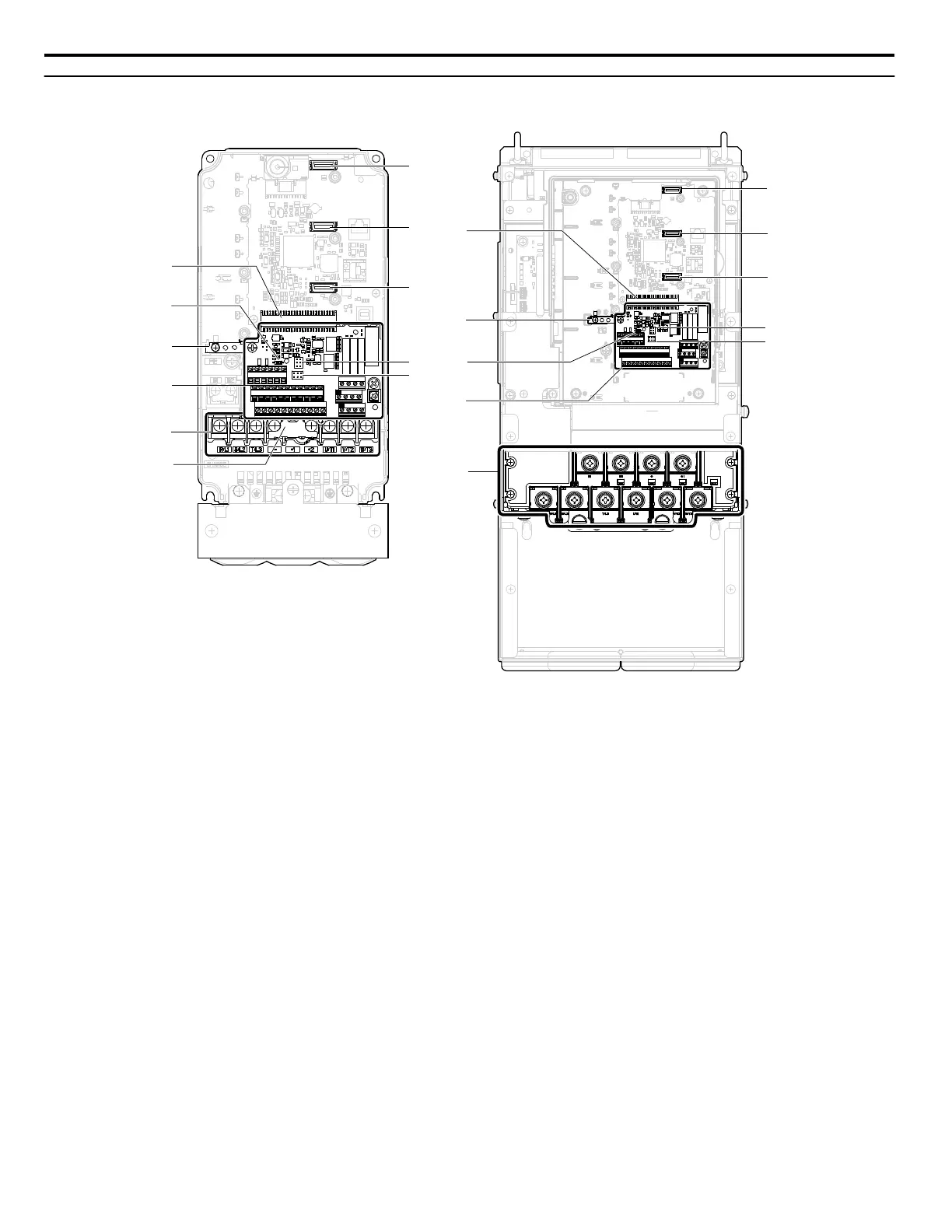

Figure 1.10 Front View of Drives
1.5 Component Names
44
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
