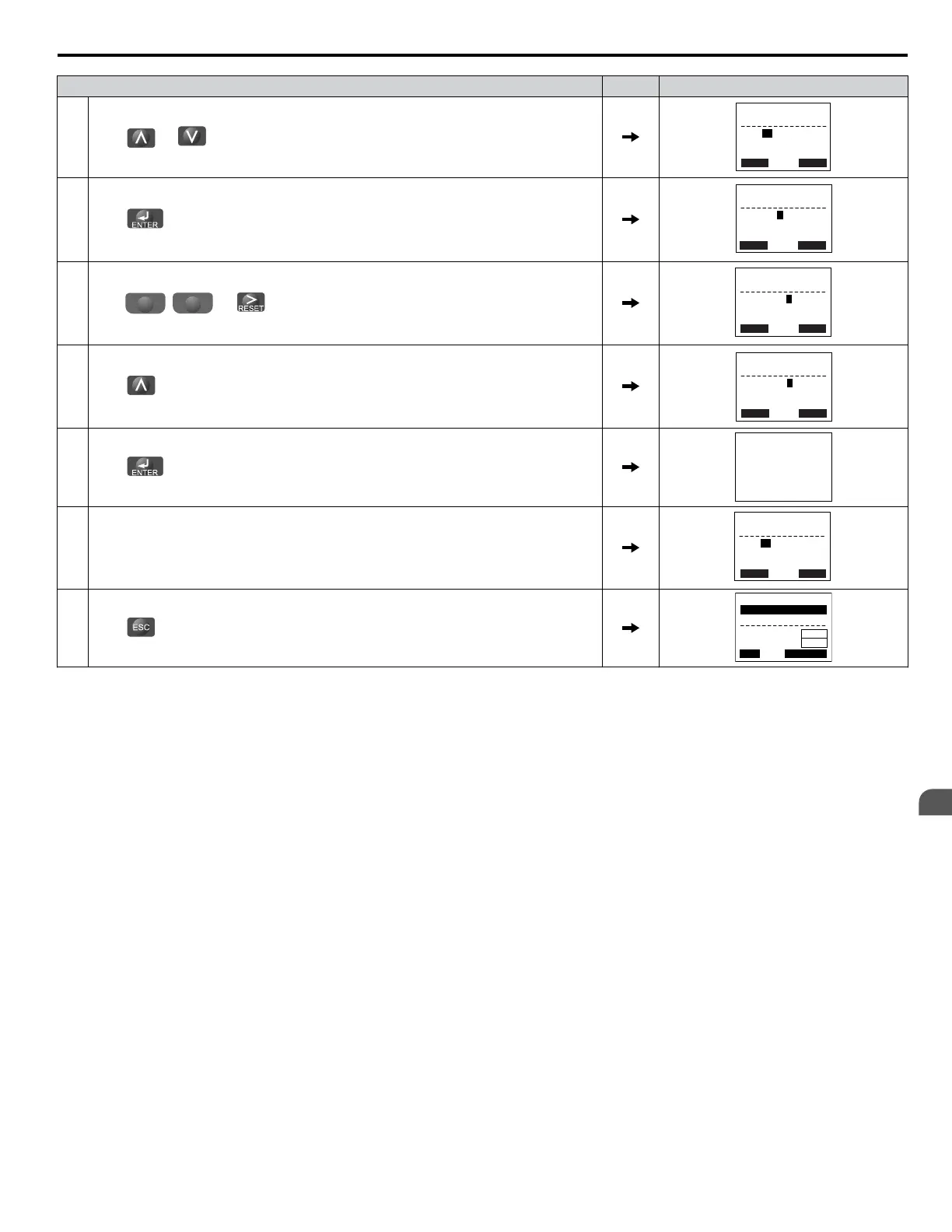

YASKAWA P1000 Technical Manual

Step Display/Result
6.
Press or to select parameter C1-02.
-PRMSET-
C1-02= 10.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
7.
Press to view the current setting value (10.0 s). The leftmost digit flashes.
-PRMSET-
C1-02= 0010.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
8.
Press
F1
,
F2
, or until the desired number is selected. “1” flashes.
-PRMSET-
C1-02=0010.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
9.
Press and enter 0020.0.
-PRMSET-
C1-02=0020.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
10.
Press to confirm the change.
Entry Accepted
11. The display automatically returns to the screen shown in Step 4.
-PRMSET-
C1-02= 20.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
12.
Press as many times as necessary to return to the initial display.
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
4.3 The Drive, Programming, and Clock Adjustment Modes
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual
119
4
Start-Up Programming & Operation

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
