YASKAWA P1000 Technical Manual

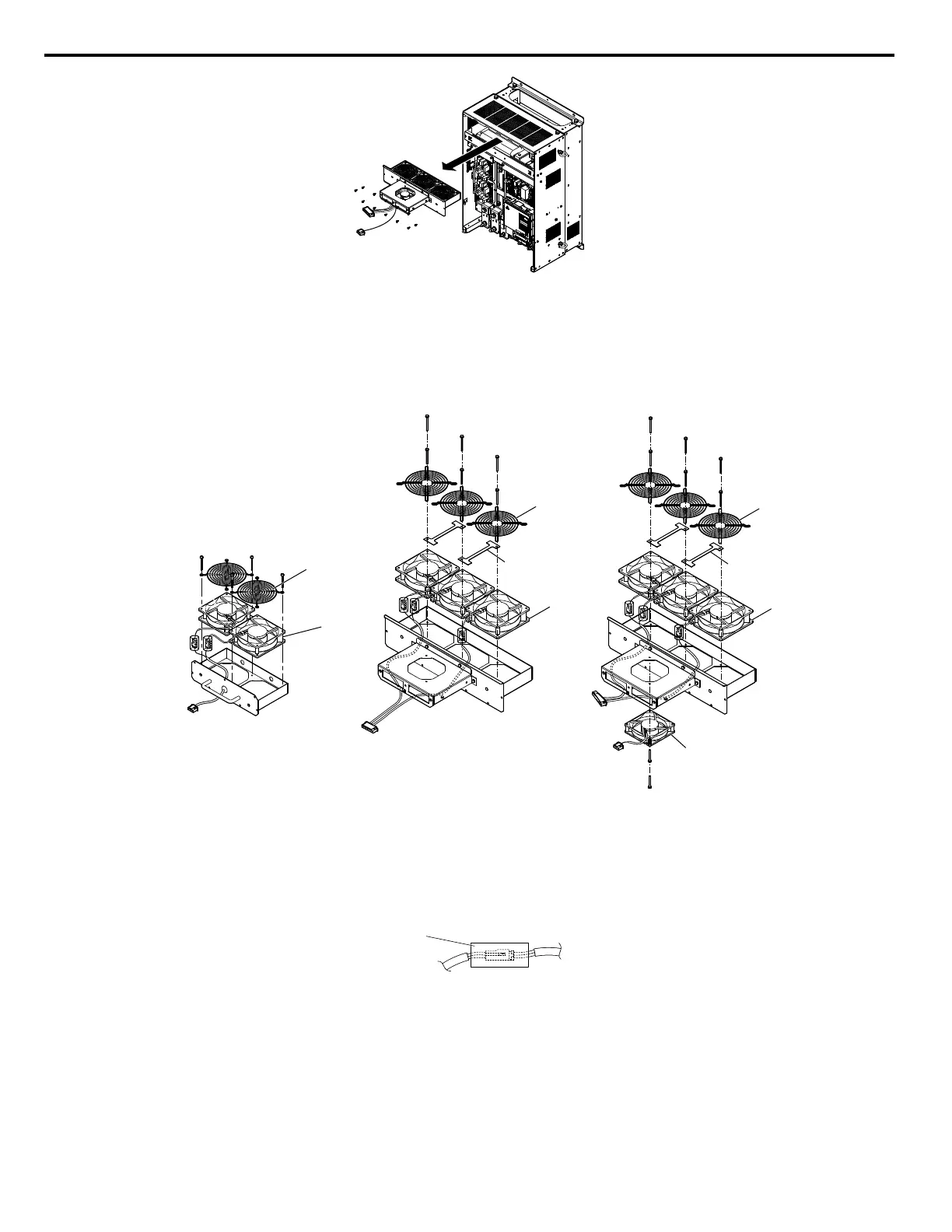

Figure 7.21 Remove the Fan Unit: 2A0169 to 2A0415, 4A0139 to 4A0362, and 5A0062 to 5A0242
4.
Remove the fan guard and replace the cooling fans.
Note: Do not pinch the fan cable between parts when reassembling the fan unit.
C
A
A
C
D
B
B
4A0250, 4A0296
2A0360, 2A0415,
4A0362,
A
C
2A0169, 2A0211, 2A0250, 2A0312,
4A0139, 4A0165, 4A0208, 5A0062,
5A0077, 5A0099, 5A0125, 5A0145
5A0192, 5A0242
A – Fan guard
B – Cable cover
C – Cooling fan
D – Circulation fan
Figure 7.22 Fan Unit Disassembly: 2A0169 to 2A0415, 4A0139 to 4A0362, and 5A0062 to 5A0242
n
Cooling Fan Wiring: 2A0169, 2A0211, 4A0139, 4A0165, and 5A0062 to 5A0099
1.
Position the protective tube so the fan connector sits in the center of the protective tube.
Protective tube
2.
Place the fan connector covered by the tube as shown in Figure 7.23.
7.4 Drive Cooling Fans
356
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
