Screw B Screw A Screw B
Screw B Screw B
Screw A
Slide Panel
Screw A
Slide Panel

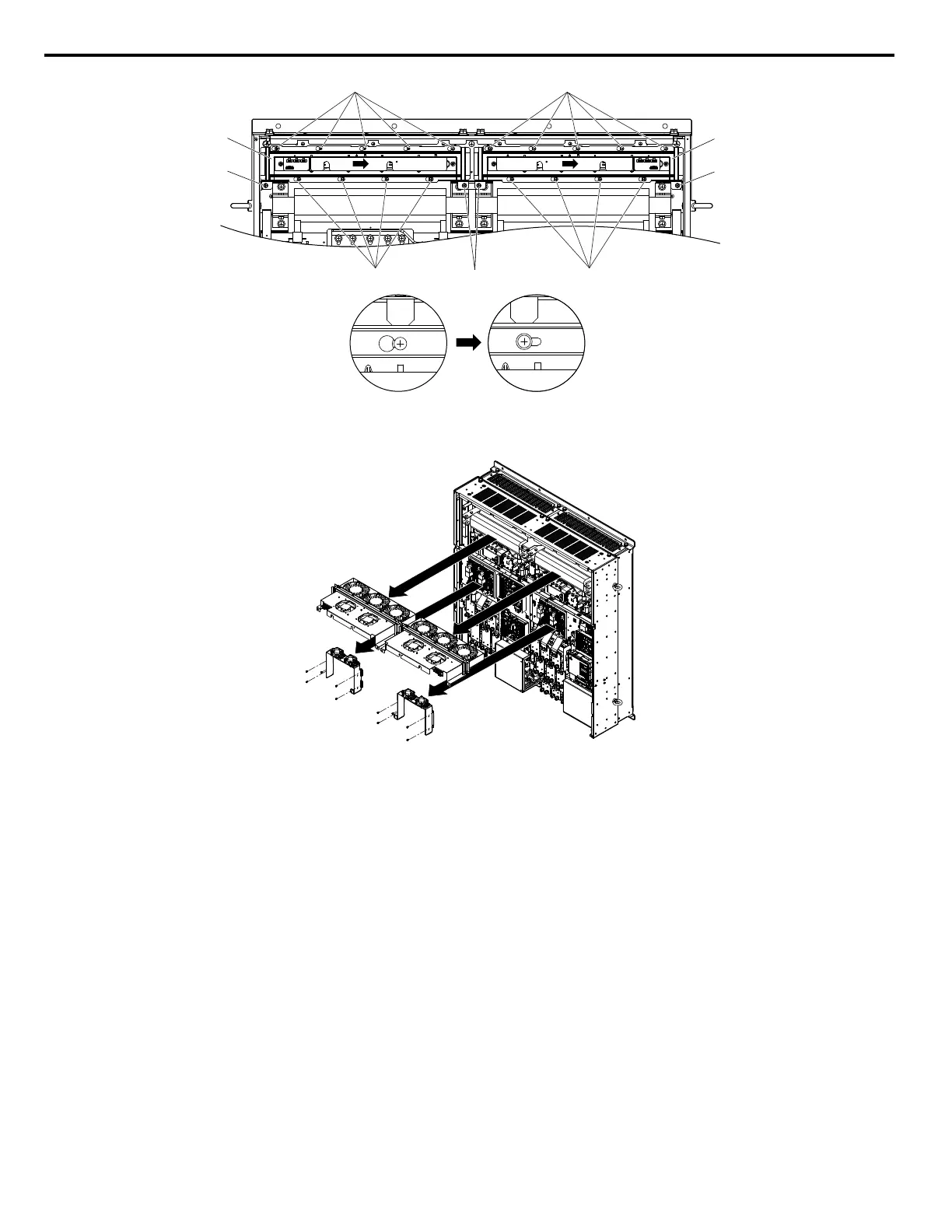

Figure 7.43 Remove the Fan Unit: 4A0930 and 4A1200
4.
Remove the slide panel, fan units, and circuit board cooling fan unit.
Figure 7.44 Remove the Fan Unit: 4A0930 and 4A1200
5.
Replace the cooling fans.
Note: 1. Figure 7.45 shows the right side fan unit.
2. Do not pinch the fan cable between parts when reassembling the fan unit.
