YASKAWA P1000 Technical Manual

n
Three-Phase AC 200 V Models 2A0110F, 2A0138F
Three-Phase AC 400 V Models 4A0058F to 4A0103F
Three-Phase AC 600 V Models 5A0041F, 5A0052F
A
B
C
E
D
F
G
H
I
J
K
L
M
N
O
A – Front cover
B – USB port (type-B)
C – Digital operator
D – Front cover screw
E – Drive cover
F – Terminal cover
G – Conduit bracket front cover
H – Conduit bracket
I – Terminal board
J – Optional 24 V DC power supply
connector cover
K – Heatsink
L – Mounting hole
M – Top protective cover
N – Cooling fan
O – Fan finger guard

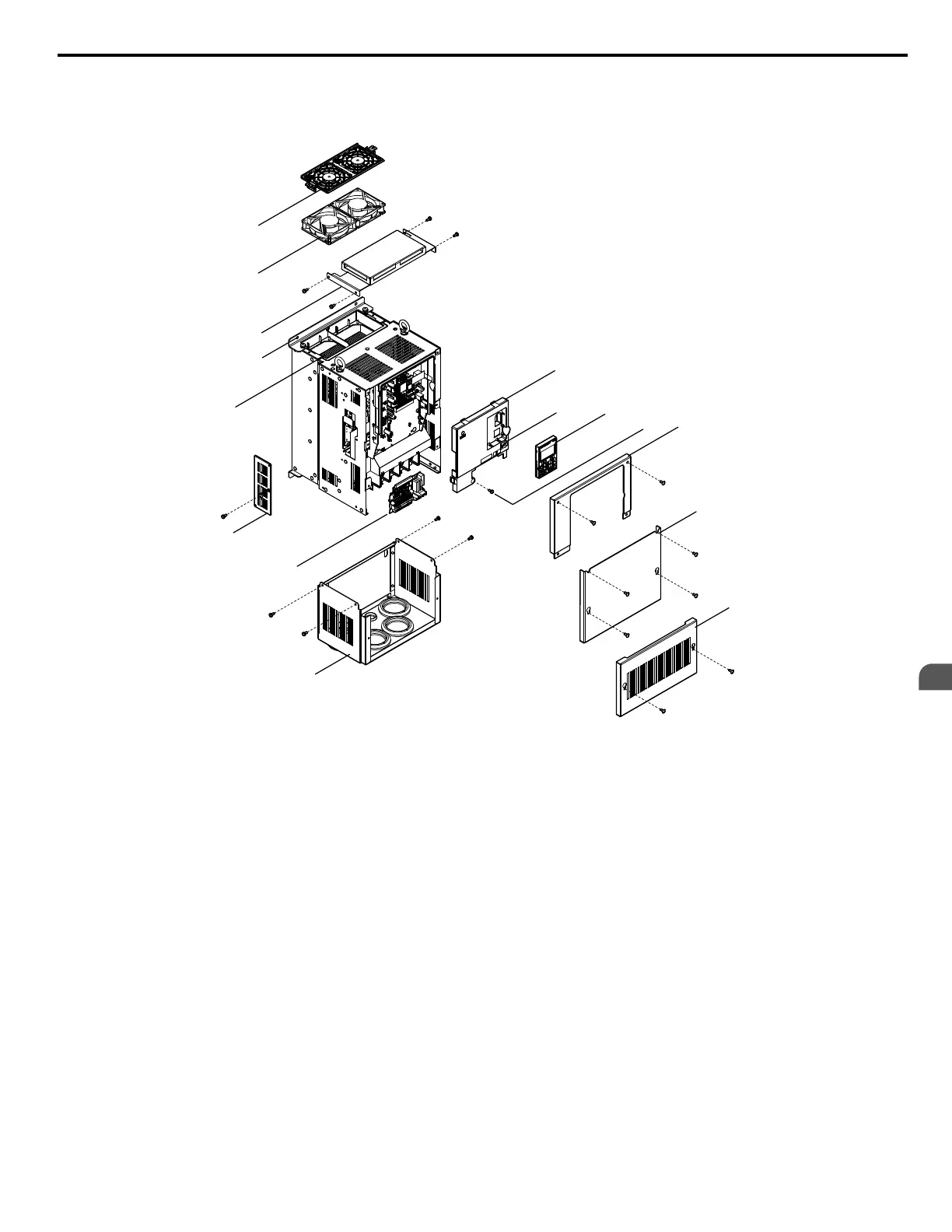

Figure 1.3 Exploded View of IP20/NEMA 1, UL Type 1 Enclosure Components (Model 2A0110F)
1.5 Component Names
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual
37
1
Receiving

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
