Drive Model
Filter Data (Manufacturer: Schaffner)
Type Rated Current (A) Weight (lb)
Dimensions
[W x D x H] (in)
Y x X (in) Figure
4A0930
FS5972-600-99
<1>
600 24.3 10.2 × 5.3 × 15.2 9.3 × 4.7
–
4A1200
FS5972-800-99
<1>
800 69.4 11.8 × 6.3 × 28.2 10.8 × 8.3
<1> Connect two of the same filters in parallel.
H X
H
D
W
Y
Figure 1
Figure 3
Figure 2
W
Y
XX
X
H
W
D
Y
D

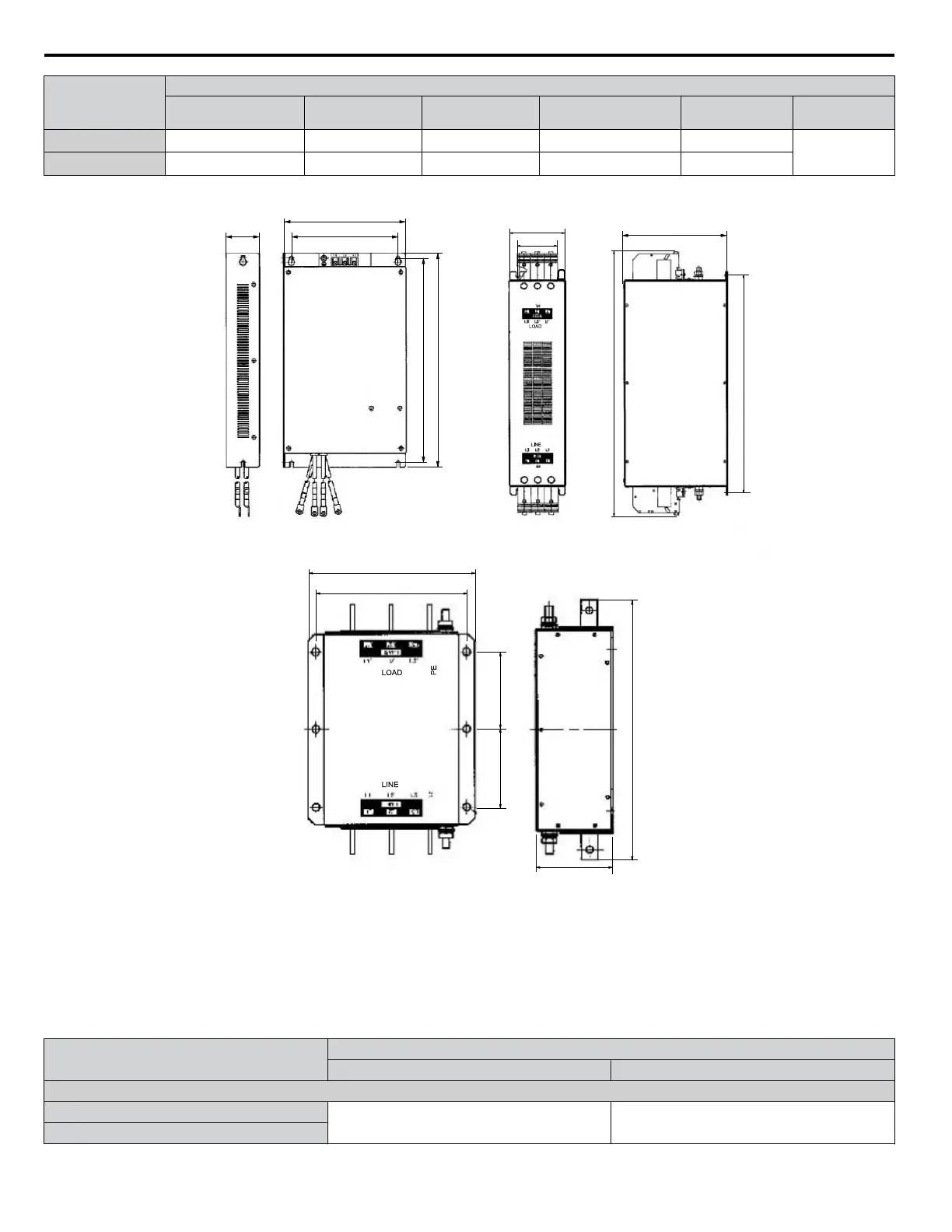

Figure D.5 EMC Filter Dimensions
n
DC Link Chokes for IEC/EN 61000-3-2 Compliance
Table D.3 DC Link Chokes for Harmonic Reduction
Drive Model
DC Link Chokes
Model Rating
200 V Three-Phase Units
2A0004
UZDA-B
5.4 A
8 mH
2A0006
