Acquire Scans
Stratus OCT User Manual PN 2660021134133 A
3-2
• For finer adjustments, you can raise or lower the chin cup. Use the knobs below the
chin cup on either side (see Figure 3-1 below).

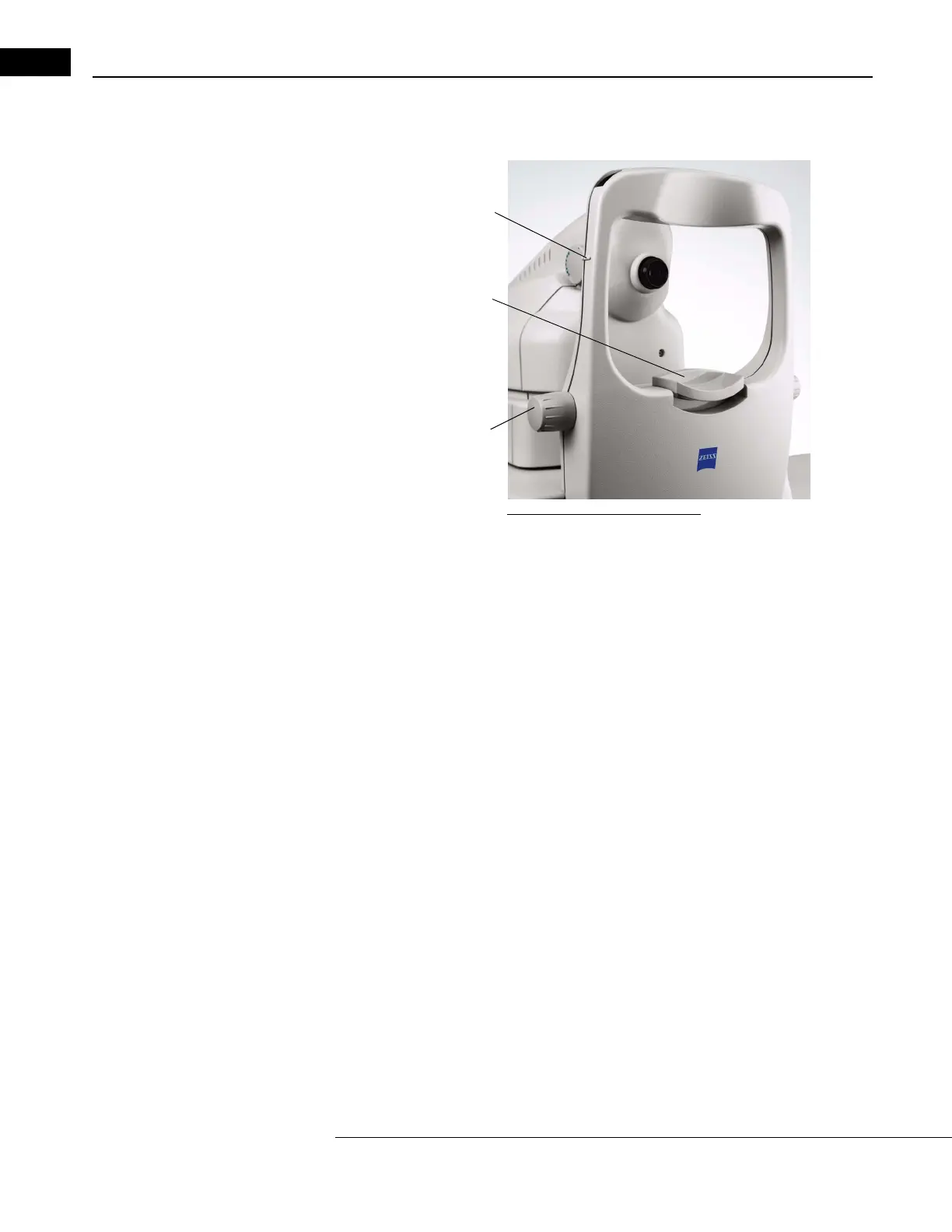

Eye Position Marker
Chin Cup Height
Adjustment Knob
Chin Cup
Figure 3-1 Height Adjustment
With the patient seated, follow these steps to adjust the height:
1. Raise or lower the tabletop to bring the forehead rest approximately level with the
pa
tient's forehead.
2. Before asking the patient to place his or her chin on the chin cup, move the patient
module
safely away from the patient's face. Use the black joystick located on the
operator side of the patient module. If locked, press the joystick button on top to
release the patient module.
3. Now have the patient place his or her chin on the chin cup. The patient's forehead
should pr
ess firmly against the forehead rest without any neck or back strain. You may
need to readjust the height of the tabletop or the patient's chair position.
4. Adjust the height of the chin cup so that the eyes align with the alignment markers on
t
he side of the patient head mount. The adjustment knobs are below the chin cup on
both sides of the patient module (see figure above).
