Aastra 470 System Manual

Installation
179
Aastra 470 ab R3.0
syd-0337/1.5 – R3.0 – 05.2013
[1] X = 200: Minimum distance if the radio units are connected to the same communication server (synchro-
nous)
X = 2000:Minimum distance if the radio units are not connected to the same communication server (not
synchronous)
Make sure the minimum distances are observed

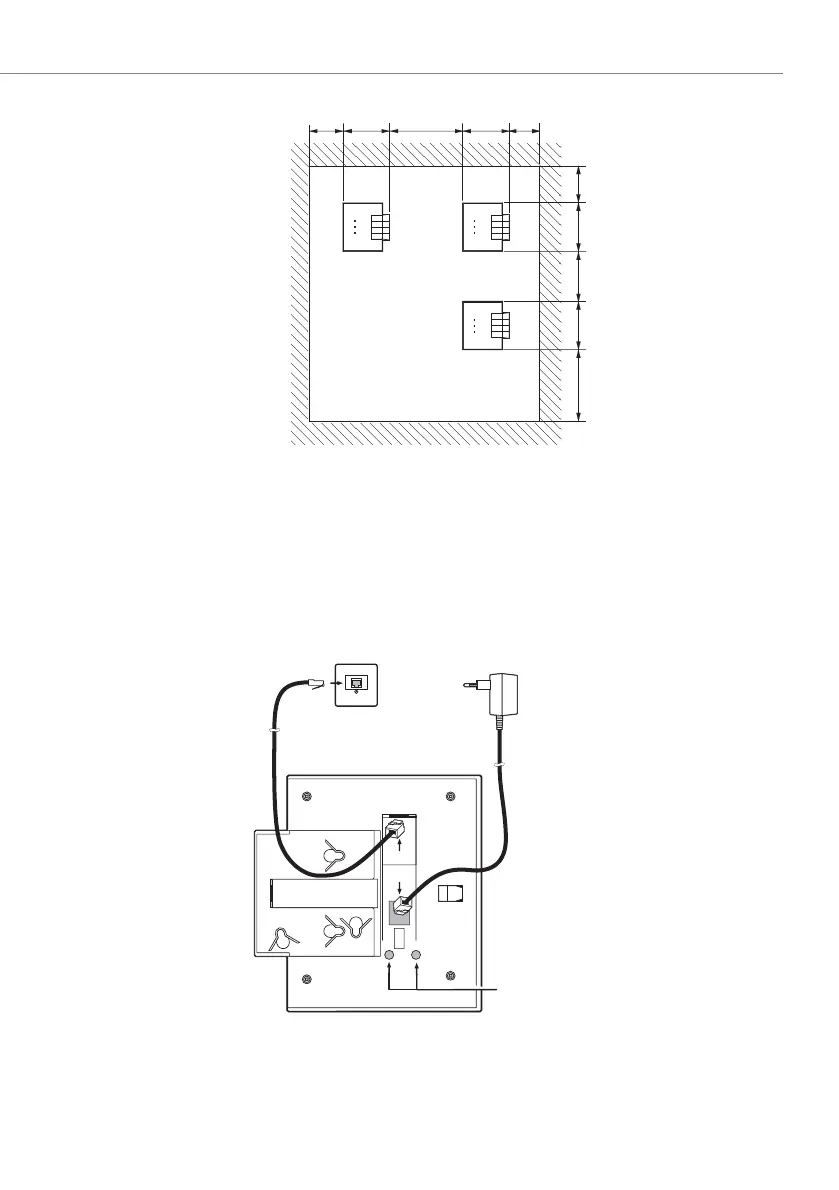

Fig. 75 Installation distances
Connecting the radio unit
Fig. 76 Underside of the radio units with connection points
100
165
X [1]
165
100
100
170
170
100 X [1]
All dimensions in mm
Sockets, external antennas
( SB-8ANT only)
Socket 2
Socket 1
DSI interface
230 VAC (optional)
