6253 DC Voltage Current Source/Monitor Operation Manual
4.2.3 Operations in Sweep Source Mode
4-22
4.2.3.4 Multi-Slope Linear Sweep
The multi-slope linear sweep function can sweep the output with different slopes by specifying the number
of slopes between 2 to 4.
When the first value is less than the last value, the step values are added. When the first value is larger than
the last value, the step values are subtracted.

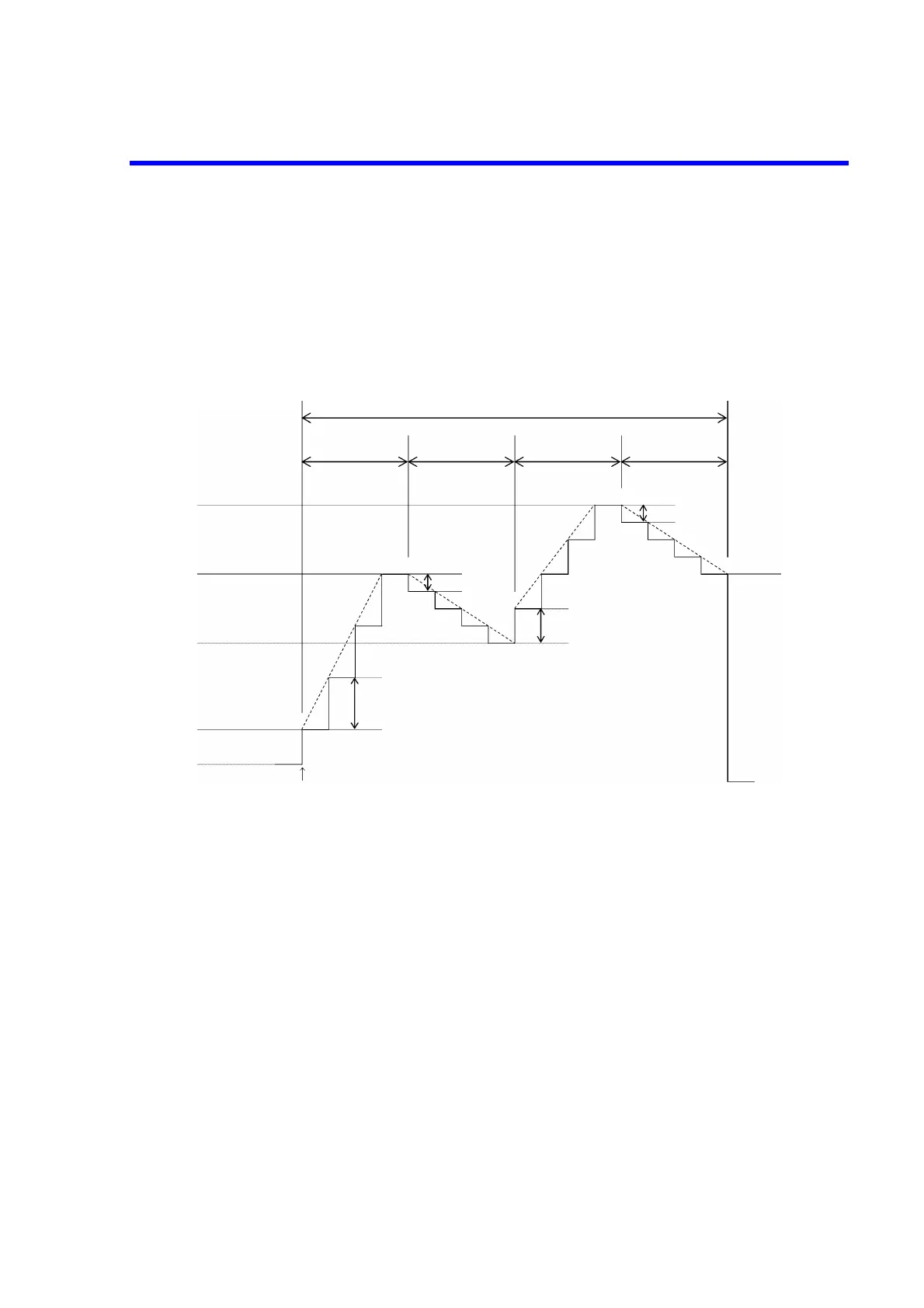

Figure 4-9 Multi-Slope Linear Sweep
Specify the number of slopes between 2 and 4.
1st slope 2nd slope 3rd slope 4th slope
4th value
2nd value
3rd value
1st value
Bias value
Start trigger
1st step value
2nd step value
3rd step value
4th step value
Last value
