ADCMT 6253 - Fixed Sweep; Linear Sweep

6253 DC Voltage Current Source/Monitor Operation Manual
3.2.1 MENU Key (Parameter Setting)
3-5
Return Bias Selects the bias output setting at the end of sweep.
ON: The source value returns to the bias value when sweep
stops.
OFF: The source value stays at the stop value when sweep
stops.
3) Sweep Value Sets the vales used for sweep source operation.
The setting parameters are different depending on the sweep type.
Linear
Start Value Sets the start value for linear sweep.
Stop Value Sets the stop value for linear sweep.
Step Value Sets the step value for linear sweep.
Bias Value Sets the bias value (source value before sweep start).
PSW Base Sets the pulse sweep base value.

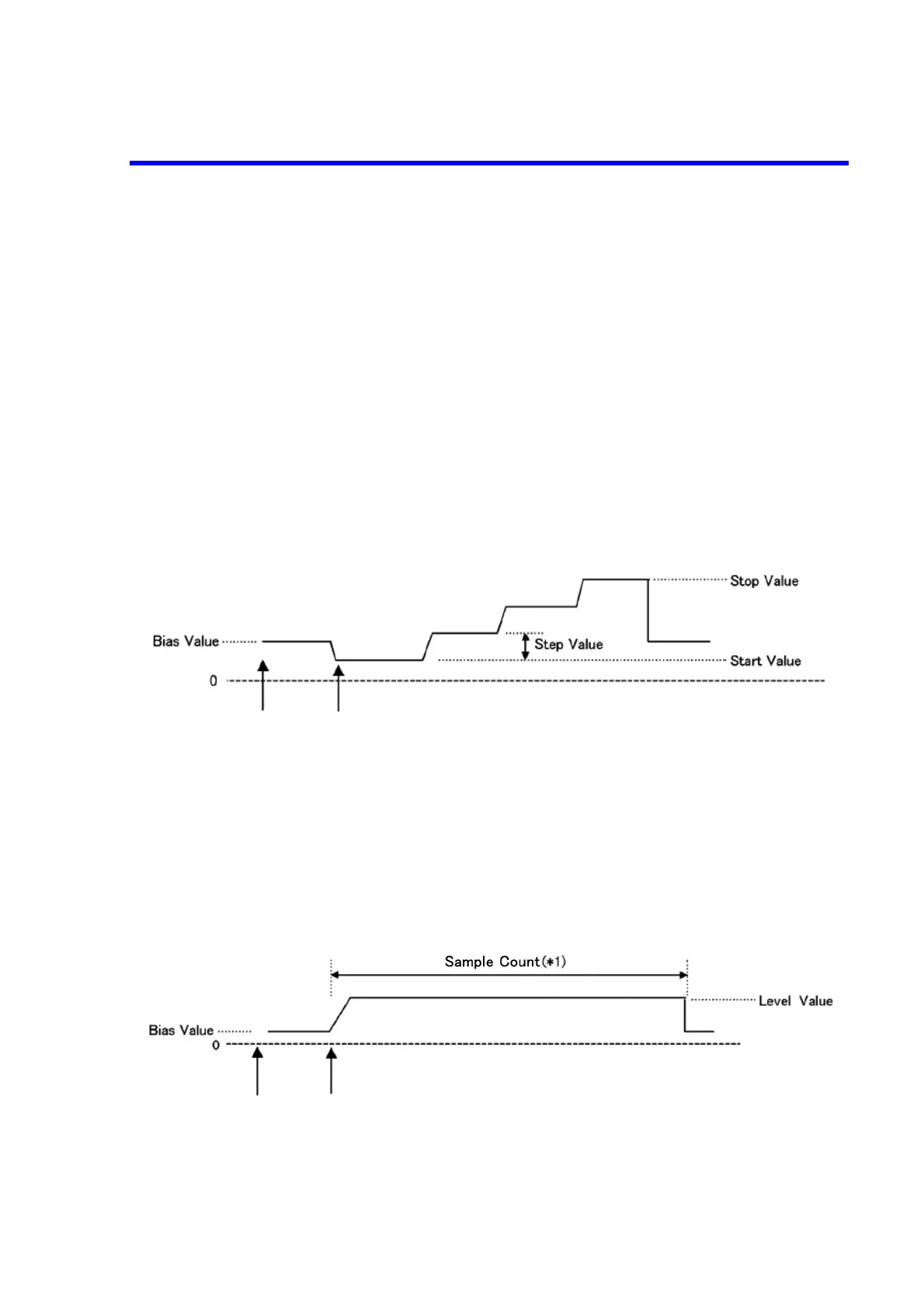

Figure 3-1 Linear Sweep
Fixed
Level Value Sets the fixed level value for fixed sweep.
Sample Count Sets the sample count (number of measurements in every period Tp: 1 to
20000) for fixed sweep.
Bias Value Sets the bias value (source value before sweep start).
PSW Base Sets the pulse sweep base value.
Figure 3-2 Fixed Sweep
Operate Start
Operate Start
(*1) Repeats the period Tp for the setting number of times
(Sample Count).
