4.2 Functions in Detail
4-9
4.2 Functions in Detail
4.2.1 Operations in DC Source Mode
The following table shows operations in the DC source mode.

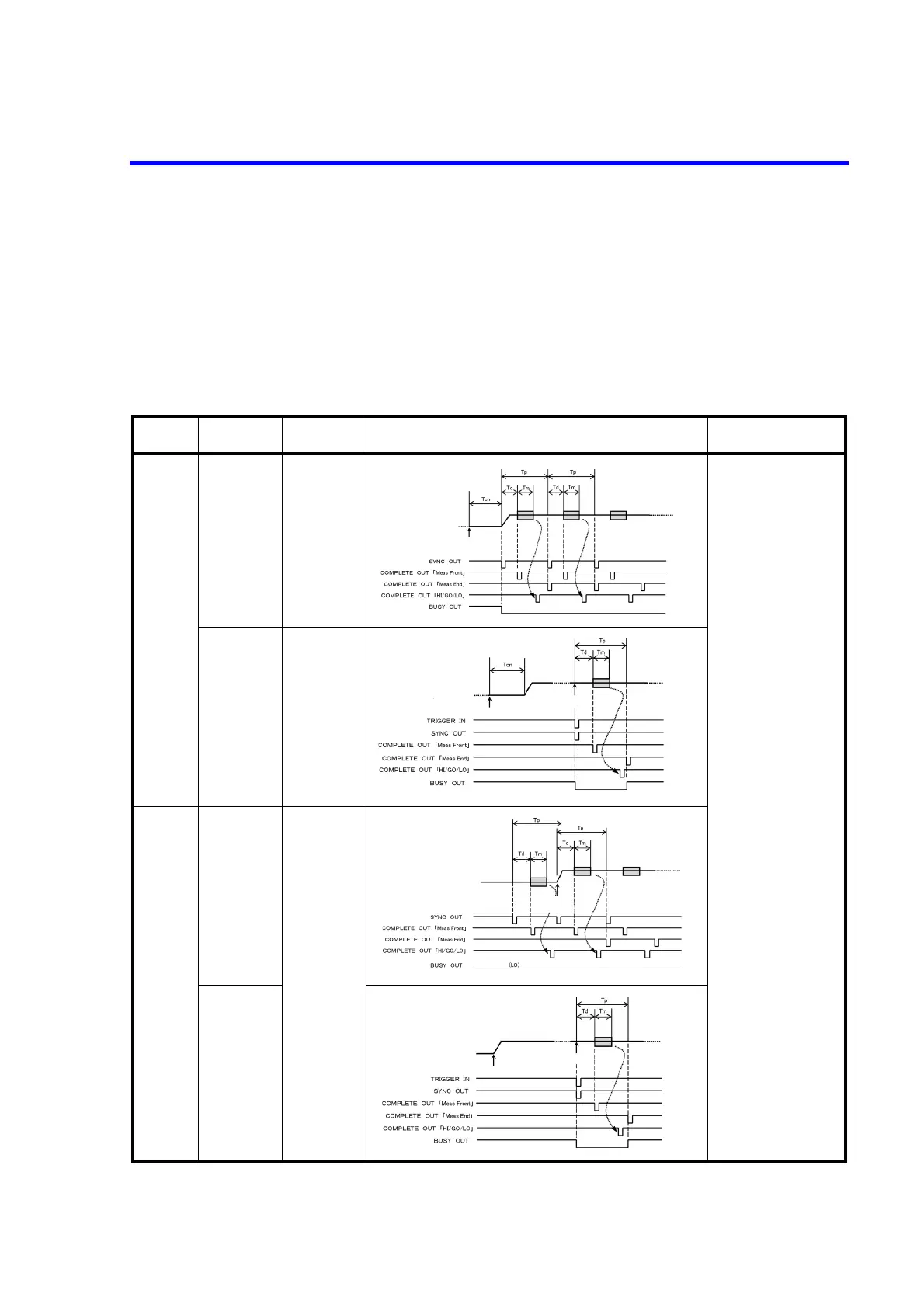

Table 4-1 Operations in DC Source Mode (1 of 2)
Operational
condition
Trigger
mode
Description Operation Remarks
Operate
ON
AUTO Executes
continuous
measurement
with the setting
period time Tp.
Tp: Period time
Td: Measurement delay
time
Tm: Measurement time
(Integration time +
Measurement data
processing time)
Tcn: Operate processing time
Trc: Range change
processing time
HOLD Executes
measurement
after trigger
input.
Changing
the source
value
AUTO Source value
changing does
not induce range
changing.
HOLD
Standby
Operate
Standby
Operate
Measurement trigger
Changes the
source value
Previous value
Previous value
Changes the source
Measurement trigger
