6253 DC Voltage Current Source/Monitor Operation Manual
4.2.1 Operations in DC Source Mode
4-10
a. When the trigger mode is AUTO:
• The measurement repeats itself at intervals of the specified period time.
• If the measurement does not finish in the specified period, the period time is extended.
b. When the trigger mode is HOLD:
• The measurement starts when the measurement delay time has passed after trigger input.
• Trigger input during measurement is ignored.
c. In the Standby or Suspended status:
• The measurement is not executed in the Standby or Suspend status.
Changing
the source
value
AUTO Source value
changing
induces range
changing.
Tp: Period time
Td: Measurement delay
time
Tm: Measurement time
(Integration time+
Measurement data
processing time)
Tcn: Operate processing time
Trc: Range change
processing time
HOLD

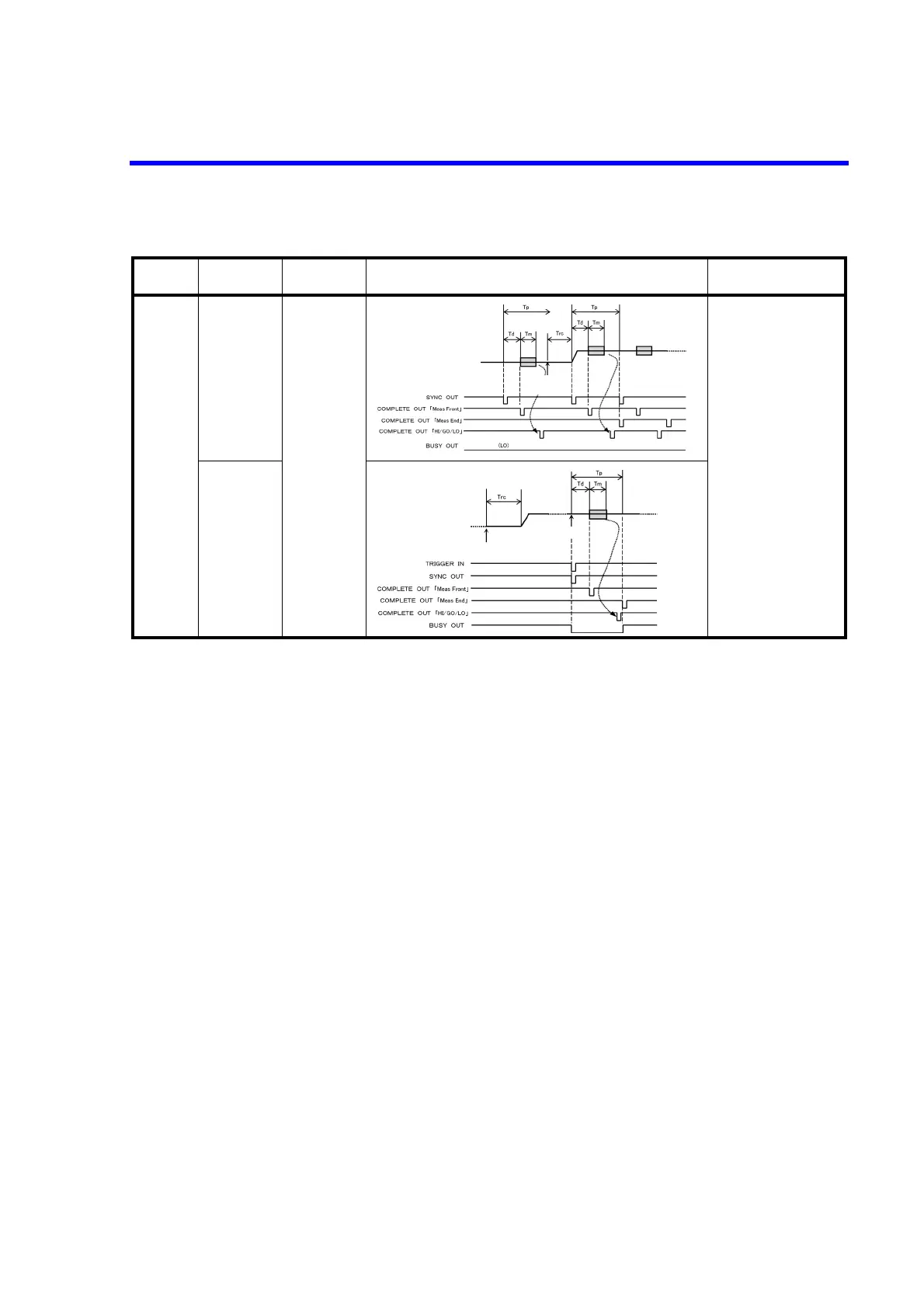

Table 4-1 Operations in DC Source Mode (2 of 2)
Operational
condition
Trigger
mode
Description Operation Remarks
Previous value
Changes the
source value
Measurement trigger
Changes the source value
Previous value
To Next Page
