2.5.3 Sweep Measurement
2-19
2.5.3 Sweep Measurement
This section describes how to read out measurement data from the memory by using the sweep source
mode.

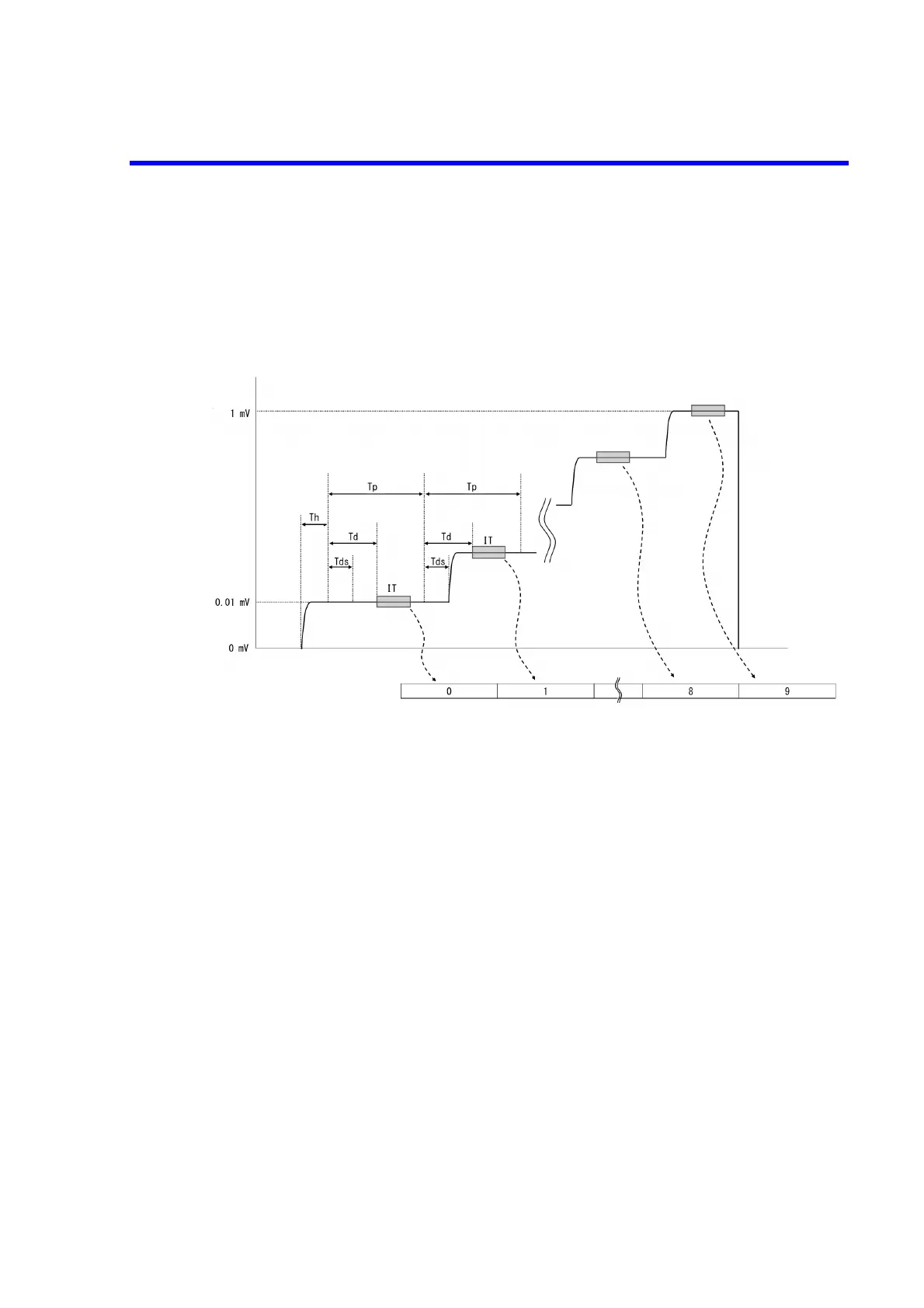

Example 3: VSIM: 0.01 mV to 1 mV (0.01 mV step), Linear sweep, Load: 10 
(ex. 3)
Mode
Sweep Type
Sweep Range
Bias Value
Start Value
Stop Value
Step Value
IL
Tp
IT
Th
Td
Tds
(Period)
(Integration time)
(Hold time)
(Measurement delay time)
(Source delay time)
: DC Sweep
: Linear
: Fix
: 0 mV
: 0.01 mV
: 1 mV
: 0.01 mV
: 30 mA
(ex. 3)
: 50 ms
: 1 PLC
: 0 ms
: 4 ms
: 0.005 ms
Measurement data memory address
Start value
Bias value
Stop value
