6253 DC Voltage Current Source/Monitor Operation Manual
4. TECHNICAL REFERENCES
4-1
4. TECHNICAL REFERENCES
This chapter describes the detailed functions to perform more accurate source and measurement.
4.1 DUT Connection
4.1.1 Output Terminals (Front and Rear Output Terminals)
The following figure shows the internal connections of the 6253.
The output terminals are cut off from the internal circuits by the Operate/Standby relays in the Standby
status. The front output terminal and the rear output terminal are mutually connected in the Standby status
as well.
CAUTION: Connect a sample to either of the front or rear output terminal.
If external power sources such as batteries are connected to both of the output
terminals, a short circuit will occur internally.

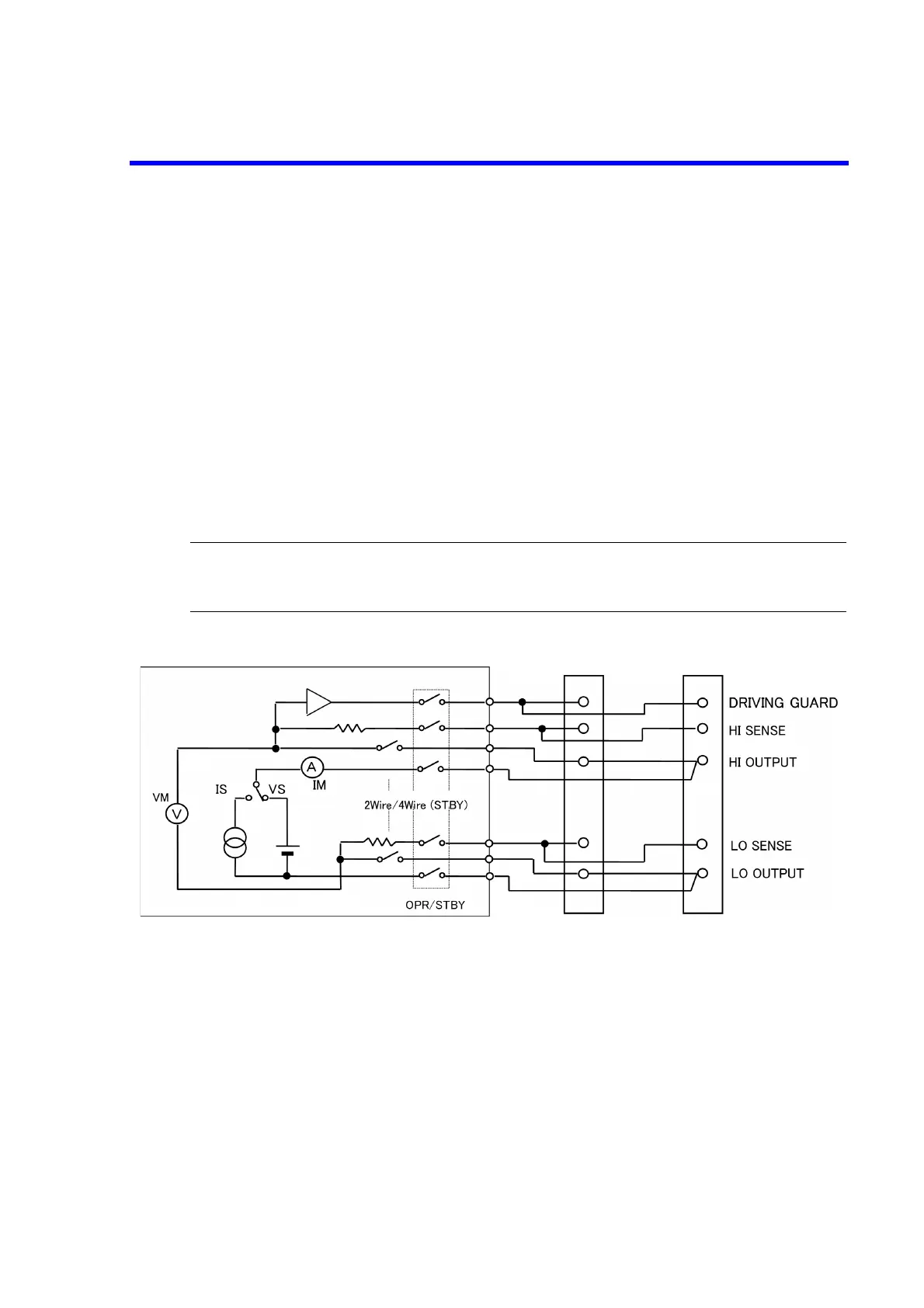

Figure 4-1 Internal Connection
Front panel Rear panel
