5.6 Status Register Structure
5-15
The Figure 5-1 show the 6253 status register structure.

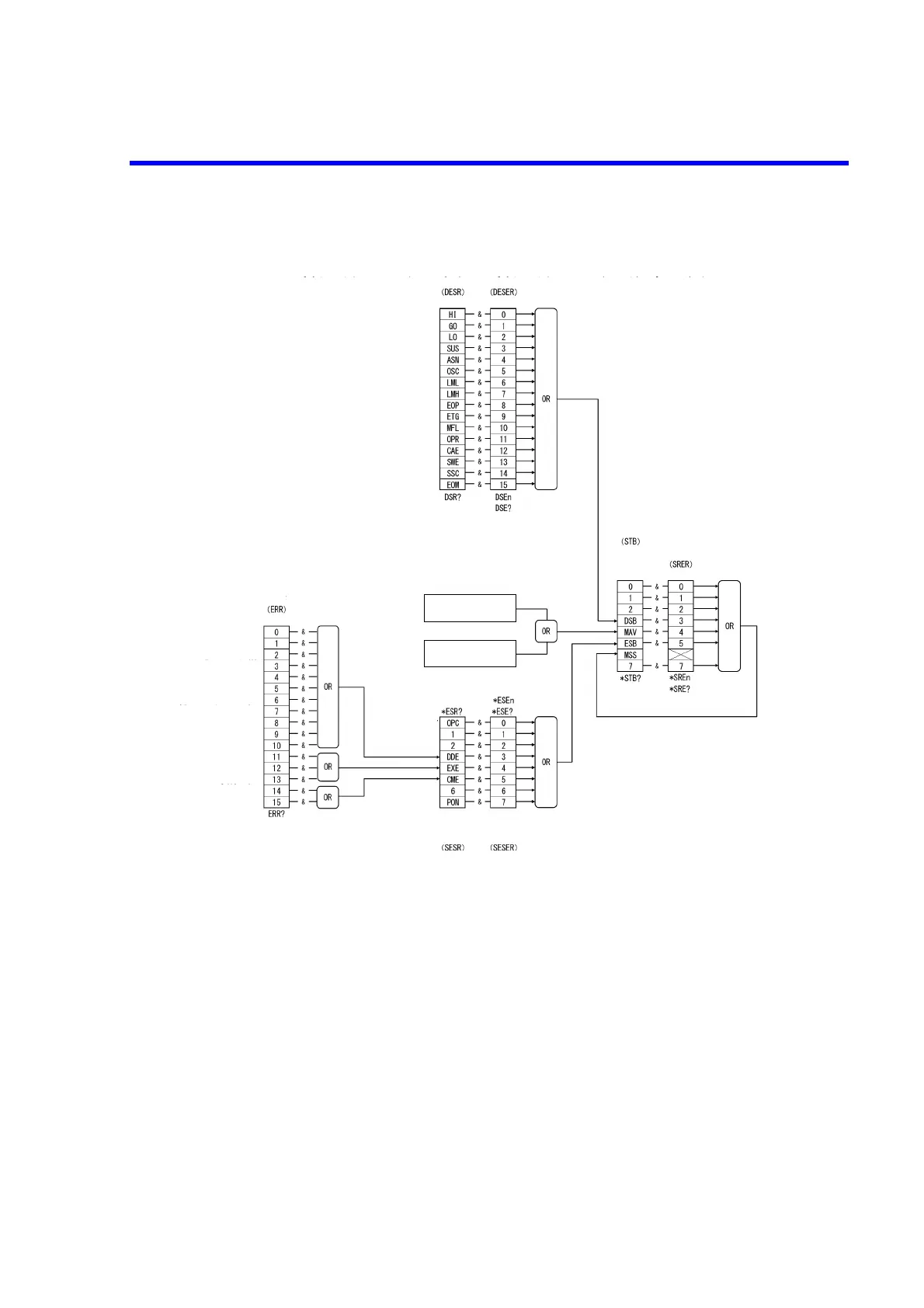

Figure 5-1 Status Register Structure
Device Event Status Register
Status Byte Register
Service Request Enable Register
Device Event Status Enable Register
Measurement data
Error Register
Self Test Error at Power ON
Self Test Error
Calibration Data Lost
Over Load
Fan Stopped
Over Heat
Source Unit Error
Parameter Lost
Calculation Error
Over Range
Command Argument Error
Command Execution Error
Command Format Error
Unknown Command
*OPC Operation
Complete
Standard Event
Status Register
Standard Event Status
Enable Register
Query response
Power ON
Comparator HI
Comparator GO
Comparator LO
Suspend
Arrive at Store Number
Oscillation
Limit Low
Limit High
Ext. Operate Off In
Ext. Trigger In
Memory Full
Operate
Calibration End
Sweep End
Sweep Step Complete
End Of Measure
