ADCMT 6253 - Calibration Procedure

6253 DC Voltage Current Source/Monitor Operation Manual
7.5 Calibration Procedure
7-7

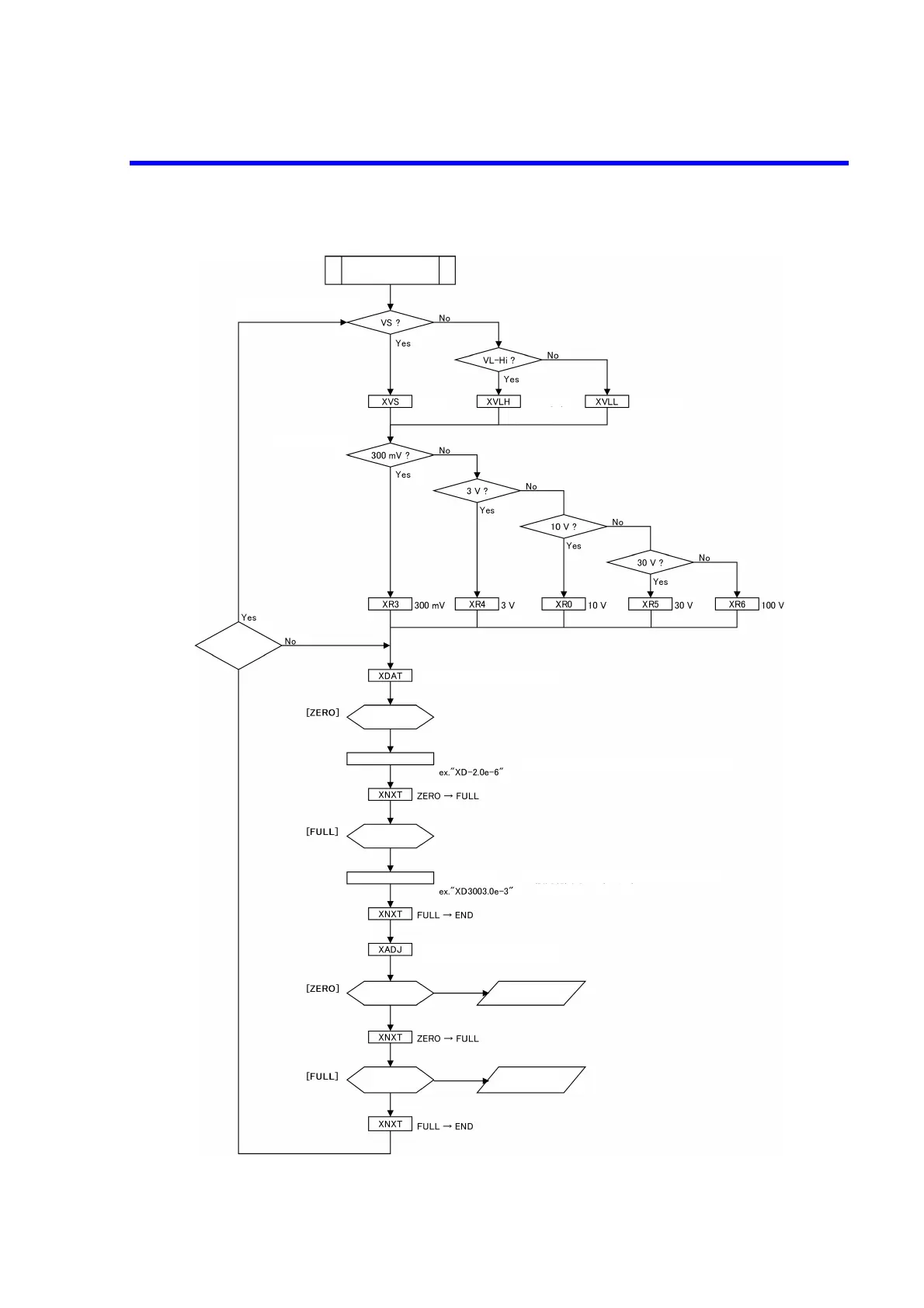

Figure 7-3 Calibration Procedure (2)
Voltage source/
limit calibration
[Calibration mode setting]
VS mode
VL-Hi mode
VL-Lo mode
[Range setting]
Within tolerance
range?
Enters the DMM data input mode.
DMM data
acquisition
DMM data input
*Out-of-range setting results in a parameter error.
DMM data
acquisition
XD DMM data
DMM data input
*Out-of-range setting results in a parameter error.
Checks the calibration result.
XD DMM data
DMM data
acquisition
Calibration result data
save and display
Calibration result data
save and display
DMM data
acquisition
