3.2.1 MENU Key (Parameter Setting)
3-7

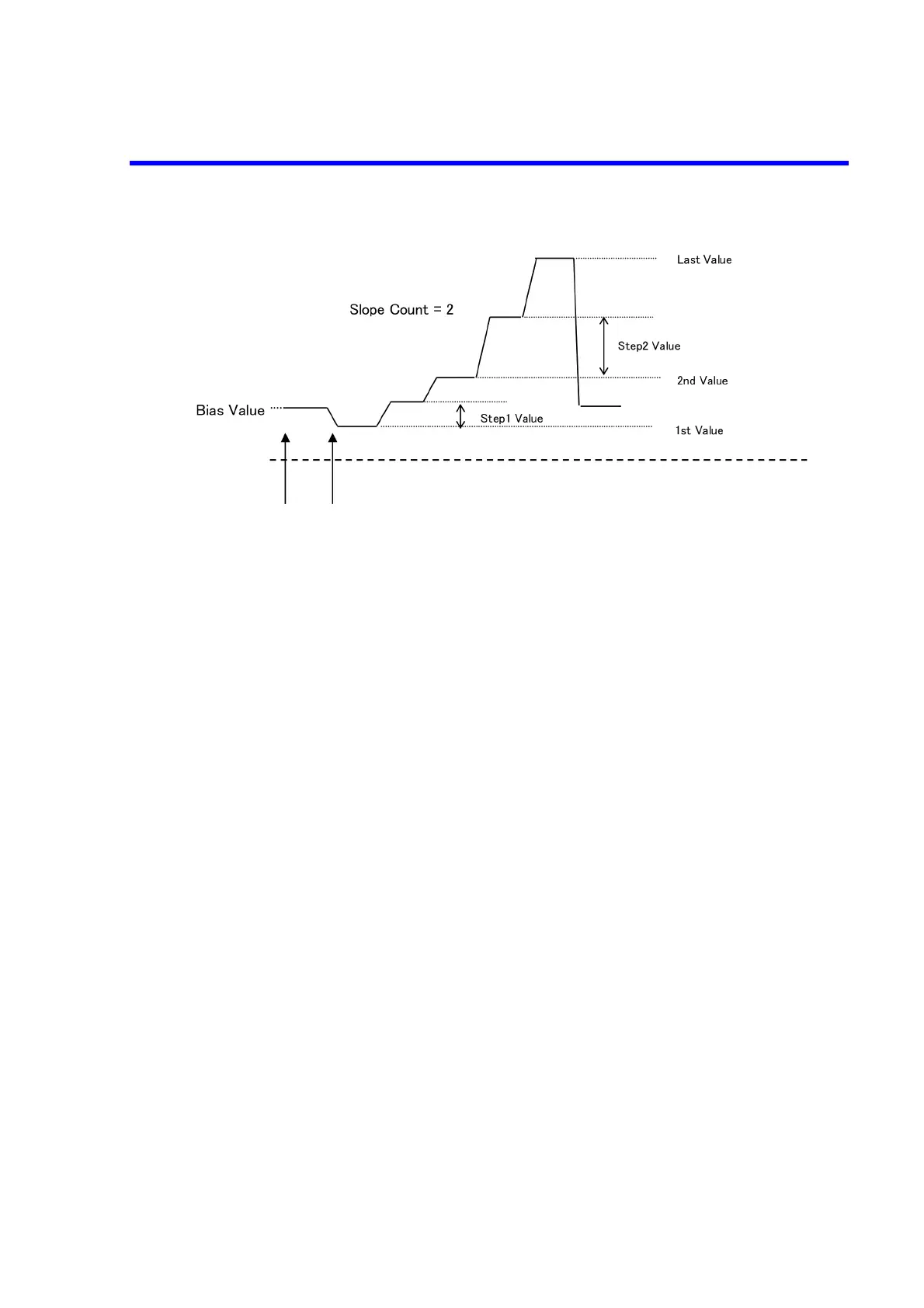

Figure 3-3 Multi-Slope Linear Sweep
4) Sweep Memory Displays the source data screen for random sweep.
Top Adr: Displays and sets the top address.
Soft key SetAdr Sets the top address and switches the address setting.
Soft key PageUp Scrolls up one page.
Soft key PageDown Scrolls down one page.
Soft key SAVE Saves the random memory.
Soft key LOAD Loads the random memory.
Soft key CLEAR Clears the random memory.
5) Time Sets the time-related parameters for source and measurement.
Hold Time (Th) Sets the time from the sweep start to the step period start in the
sweep source mode.
Source Delay (Tds) Sets the delay time (Tds) from the start of the period time (Tp) to
the source start in the pulse source mode or sweep source mode.
Meas Delay (Td) Sets the delay time (Td) from the measurement trigger to the
measurement start.
PLS Width (Tw) Sets the pulse width (Tw) in the pulse source mode or pulse sweep
mode.
Period (Tp) Sets the following period time (Tp).
• Auto sampling period in the DC source mode
• Pulse source period
• 1-step period for sweep source
Auto Rng Delay (Tar) Sets the wait time (Tar) after changing the range for the
measurement auto range.
