ADCMT 6253 - Reverse Function; Reverse Operations in DC Sweep Mode

6253 DC Voltage Current Source/Monitor Operation Manual
4.2.3 Operations in Sweep Source Mode
4-24
4.2.3.5 Reverse Function
Turning ON or OFF the reverse function will switch the sweep operation between one-way sweep and
round sweep.
Reverse OFF: One-way sweep
Reverse ON: Round sweep
The linear sweep sweeps as shown below.
Other types of sweeps also begin sweeping backwards to the start value at the stop value when the reverse
mode is set to ON.

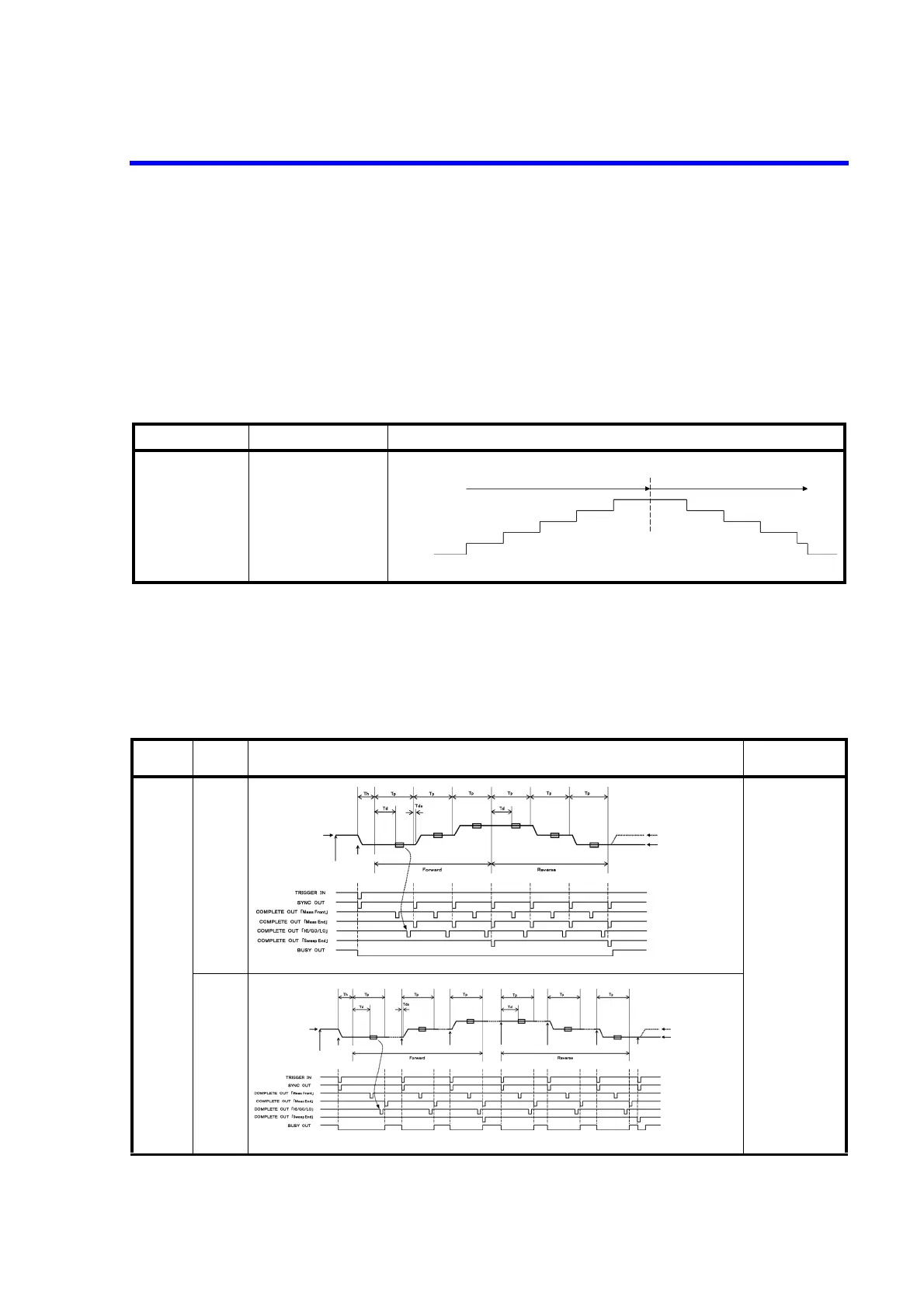

The following table shows the measurement and source timings in the sweep source mode with the reverse
mode is set to ON (round sweep).
Sweep type Descriptions Waveform
Linear sweep
Linear
Generates staircase
waveforms of the number
of steps from the start
value to the stop value,
then sweeps backwards in
the same way from the
stop value to the start
value.
Table 4-6 Reverse Operations in DC Sweep Mode
Operational
condition
Trigger
mode
Operation Remarks
DC
Sweep
AUTO Th: Hold time
Tp: Period time
Td: Measurement
delay time
Tds: Source delay
time
Tm: Measurement
time
(Integration
time +
Measurement
data processing
time)
Tcn: Operate
processing time
Trc: Range change
processing time
HOLD
Stop value
Sweep from start value to stop value
Bias value
Start value
Sweep from stop value to start value
Start trigger
Bias value
Operate
RTB ON
(returns to the bias value)
RTB OFF
(stays at the present value)
Bias value
Operate
Trigger
RTB ON
(returns to the bias value)
RTB OFF
(stays at the present value)
Trigger
Trigger
Start trigger
Trigger
Trigger
Trigger
